APPENDIX

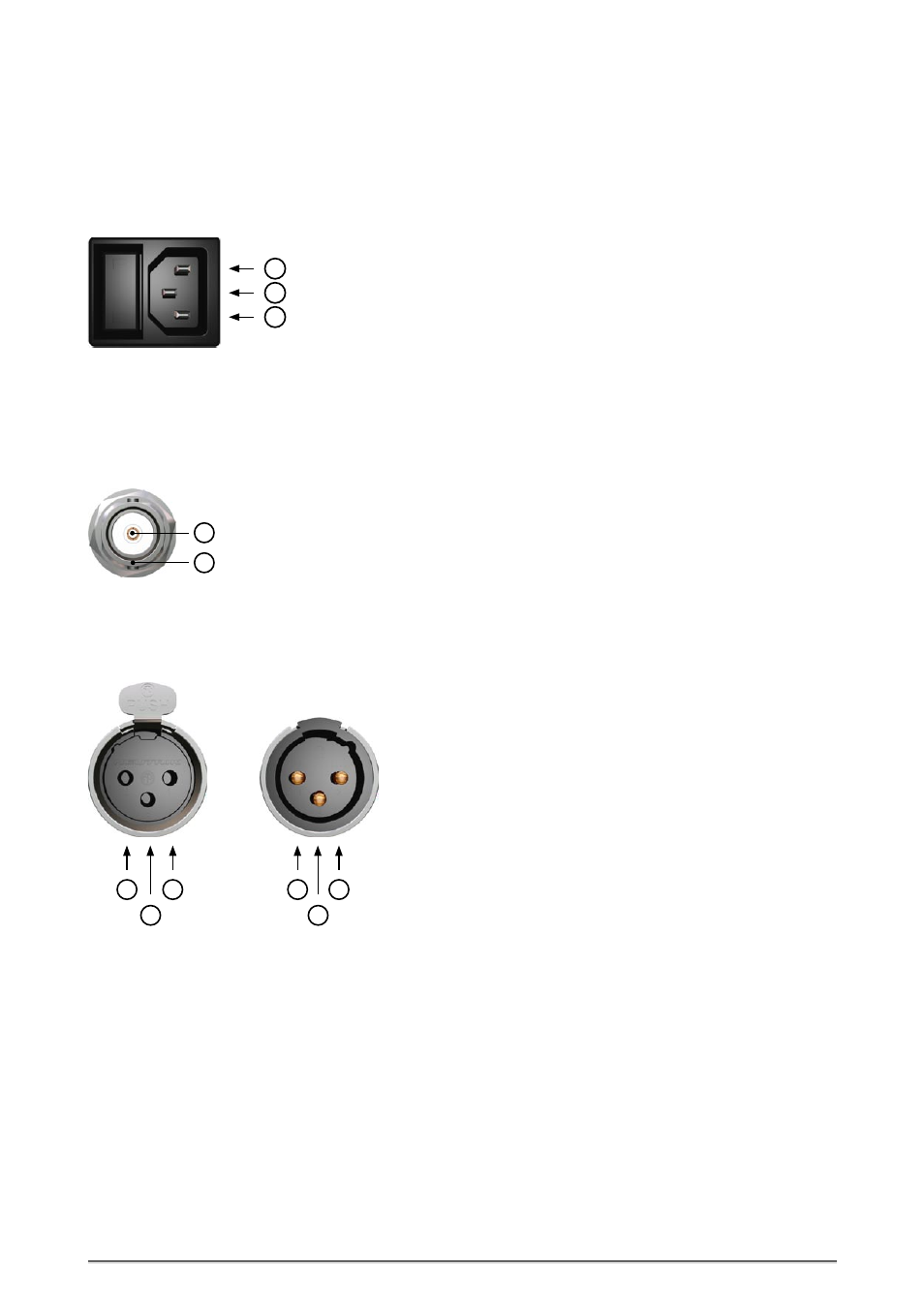

Pin Assignment of the Connectors
Mains
1
1 Neutral (blue; USA: white)
2 Protective earth (green/yellow; USA: green)
3 Live, phase (brown; USA: black)
2
3
1
3
2
1 Ground
2 a conductor (hot / +)
3 b conductor (cold / -)
AES/EBU XLR Output
BNC Input and Output for AES/EBUid,
Word Clock and Super Clock
1 Signal
2 Ground
1
2
2
3
1
1 Audio ground
2 a conductor (hot / +)
3 b conductor (cold / -)
AES/EBU, XLR, Input
