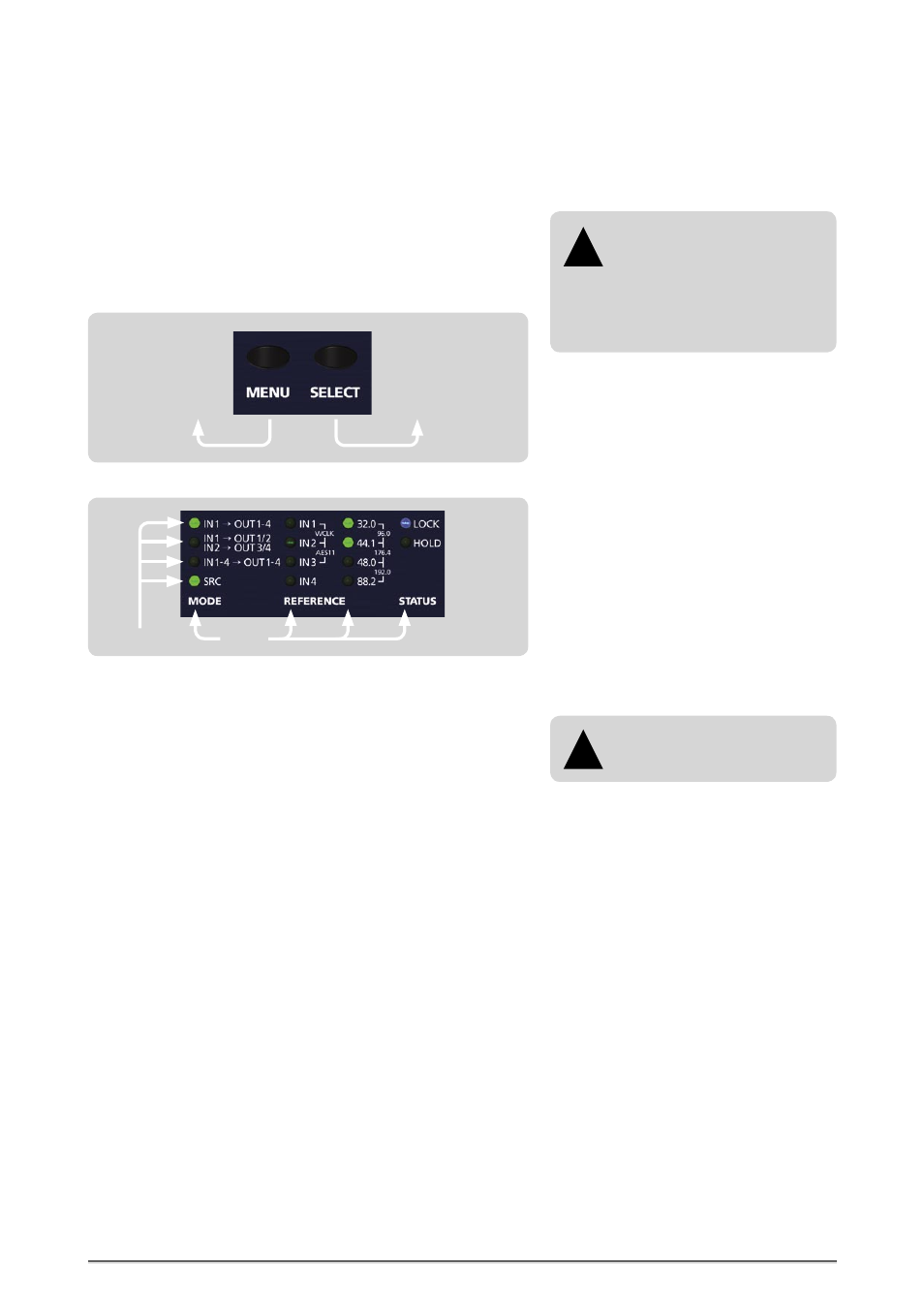

GENERAL OPERATION
Selecting Function Menus and setting Functions
The device is fully operated using the two toggle switches at the front
panel.
1 Switching the »MENU« key toggles between different basic function menus.
2 Switching the »SELECT« key activtes individual functions within one
function menu.
Steps of Operation
1 First press on »MENU« or »SELECT« key enables the last selected function
within the last selected function menu. The corresponding LED is
beginning to flash.
2 Every press on »SELECT« key will select a new function within a menu. The
LED of every selected function will flash accordingly and the
corresponding function is vailable at once.
3 When the needed function is selected, do not press the switches again!
After a period of approx. 4 seconds the LED in front of the selected
function will stop flashing.
The »STATUS« area is not accessible by using the »MENU« and »SELECT«
switches, because it only informs about different conditions of incoming
signals.
Function Areas + Functions
Menus Functions
For safety reasons, be sure to read
the SAFETY INSTRUCTIONS and
INSTALLATION chapters before first
powering-up!
We also recommend reading the chapter
CONTROL ELEMENTS AND TERMINALS for
information on how to connect your MC-8
or MC-8.1!
!
All user-specific function settings
are available furthermore when
power is restored.
!
2. SELECT
selects individual
functions within
one function area.
1. MENU
selects individual
function menus.
MENU + SELECT operation
