Carrier Miracool 260L - Manual (Page 3)

3
LEVELING FOOT
SHELF
PRODUCT CHAMBER
FRONT GRILLE
INTERNAL FLUORESCENT LAMP —
SIZE 750L
(SIZE 260L, 300L — ALONG TOP;
SIZE 1100L, 1300L — IN CENTER)
UNIT DATA LABEL
(INSIDE COOLER IN UPPER
LEFT CORNER)
FLUORESCENT LAMP SIGNBOARD
(SIZES 750L, 1100L, AND 1300L ONLY)
WOOD SKID RETAINING SCREW,
IF USED (HEX HEAD BOLT SCREW) POWER CORD
(LEFT CONNECTOR)
LIGHTING CORD
(RIGHT CONNECTOR)
CARTRIDGE COMPARTMENT
SERVICE
CORD
WOOD SKID

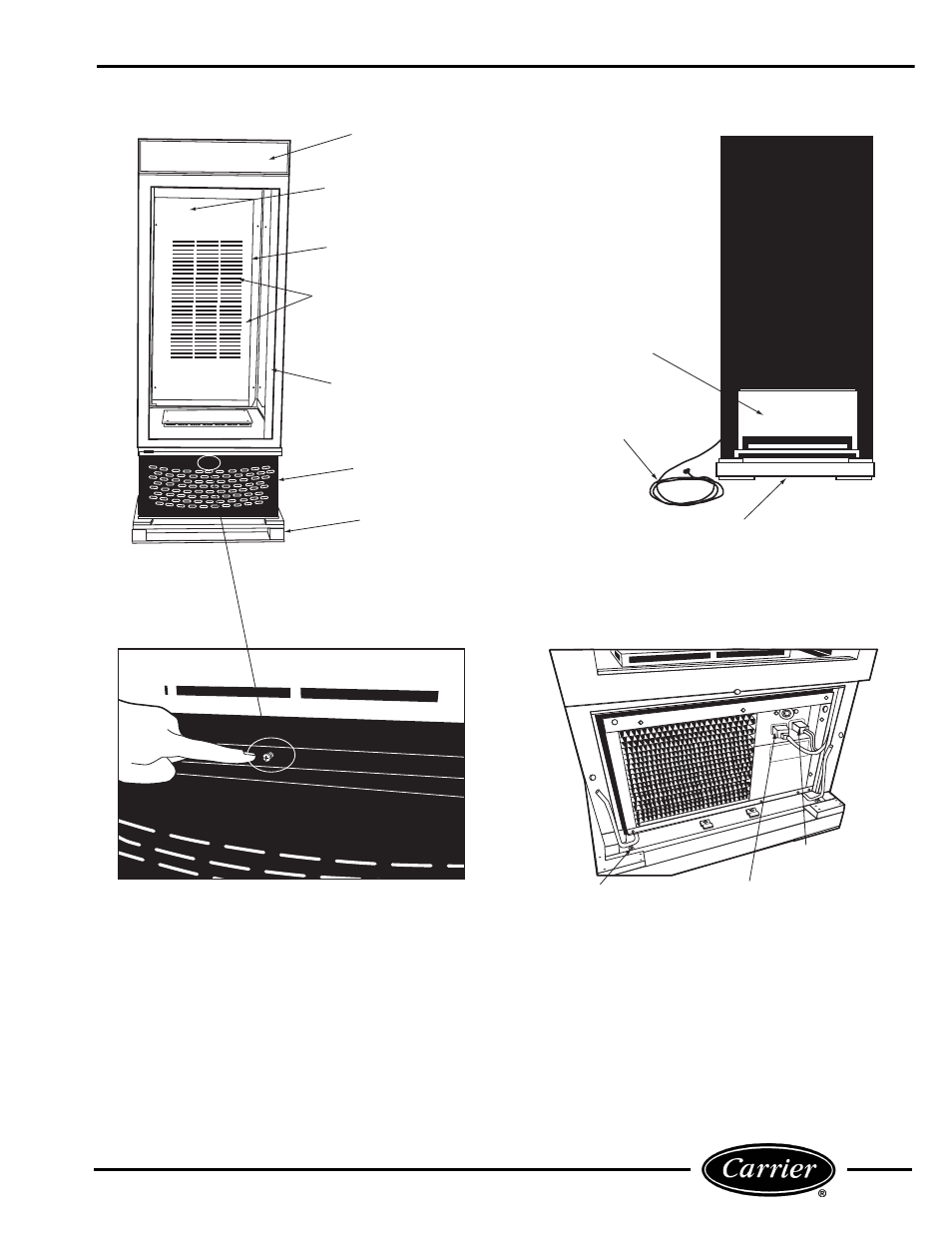

FIGURE 1 — MIRACOOL™ BOTTLE COOLER UNIT COMPONENTS (Size 750L Shown)
FRONT VIEW
REAR VIEW
GRILLE RETAINING SCREW
UNIT WITH FRONT GRILLE REMOVED
a79-1
