Current Connected Status

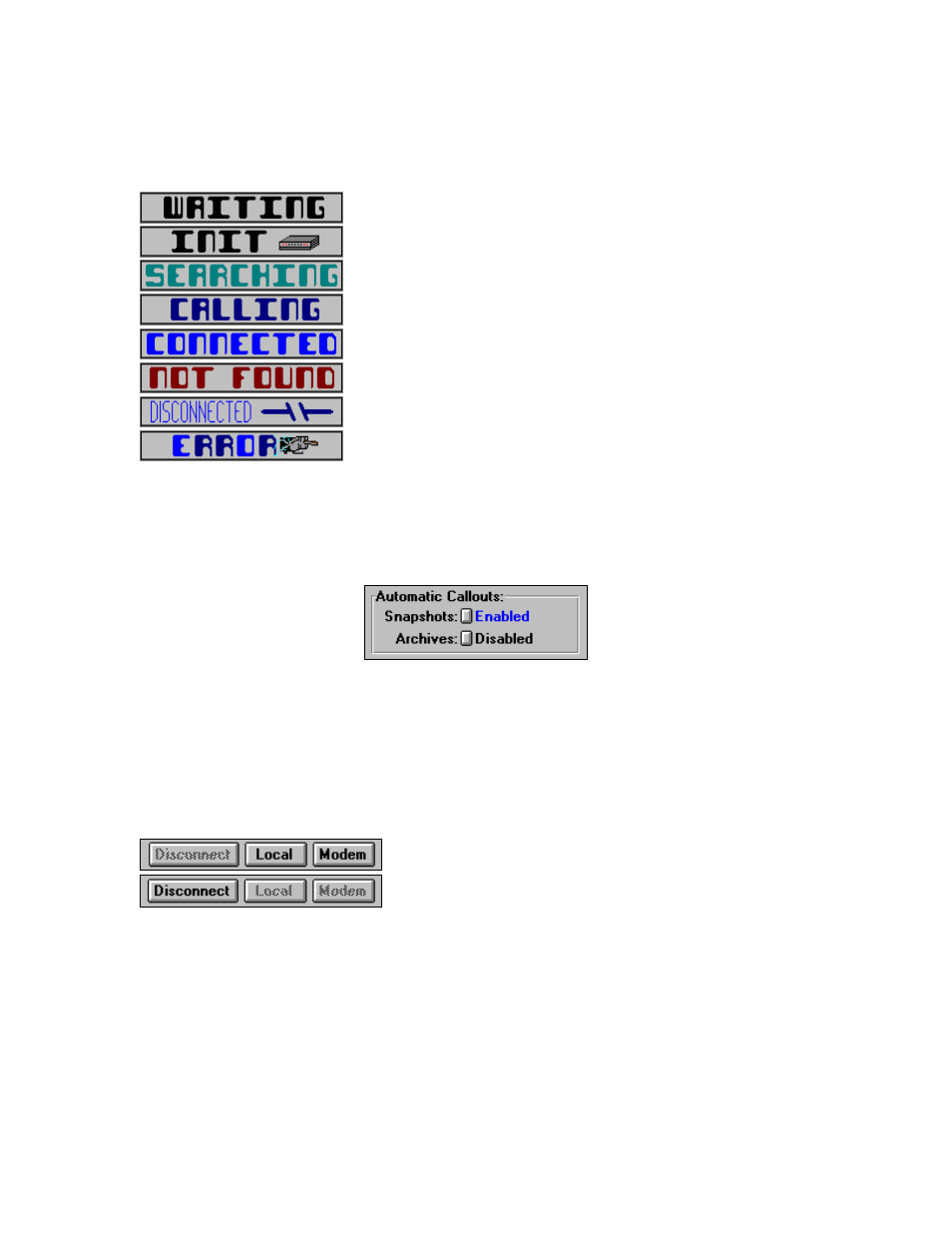

To the right of the Entry’s Name, there is a box displaying the Current Connected State of the
selected entry.
Waiting for a free Port to call out with
Initializing the Modem on the Port
Looking for the dialer connected to the Port
Waiting for the dialer to answer the phone
The dialer was properly connected to
Searched for, but didn’t find a dialer to connect to
Not currently connected to a port
A transmission error has occurred
Enable/Disable Automatic Entry Callouts
Below the Current Connected State are two buttons where the user can enable or disable the
automatic data capturing features for the selected entry. For more information on Automatic
Snapshots and Archives, see section Polling Modes, Page 43 for more details.
Think of these features as automatic ways of retrieving certain data from a dialer’s entry at a user
defined time interval. For example, this entry could be scheduled to automatically call its
associated dialer and retrieve its new archives every 24 hours.
User Demanded Connection Buttons
Below these automatic switches are three buttons. These allow the user to tell MicroWIN 2000 to
either connect to or disconnect from the selected entry’s dialer.
Entry is not currently connected to a port
Entry is currently setup to use a port
When the Modem button is clicked, this Entry will be scheduled to connect to its dialer. Once a
Modem Port becomes available, it will connect to that dialer.
When the Local button is clicked, the Select Port form will be displayed. Click the button next
to the Local port that is to be connected to.
