Appendix E – Dialer Channel Information
This describes a dialer’s channel realtime information. Each channel is independent of one
another. Each channel can either be setup to monitor some specific field input or change a field
output. The data for a channel shown depends on how the channel is programmed.
For a full description of how a channel is programmed and how it will operate, see section
Editing an I/O Point, Page 79. This describes what the user will find out when viewing the
status information.
Time Stamp
This is time that this Realtime Data was recorded from the dialer.
Format: Month/Day/Year Hour:Minute:Second
Channel Name

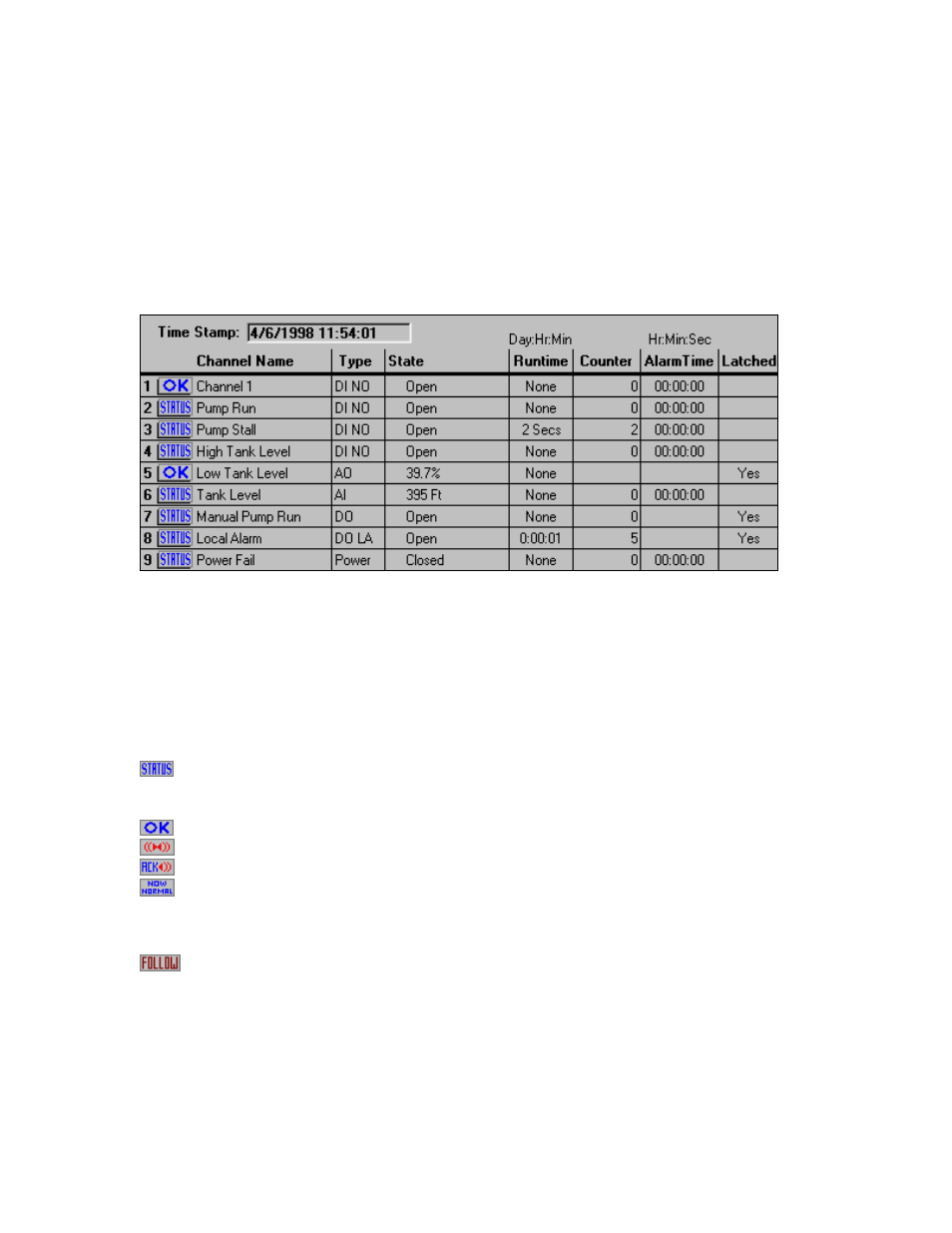

This tells the channel name. To the left of the same column is a picture which represents the
current alarm condition for this channel.
For a Status Channel:
The channel is not setup for alarm callouts. Outputs also appear as a Status Channel.
For a Call On Alarm Input Channel:
The channel is currently in a normal state
The channel is currently in an unacknowledged alarm state
The channel alarm condition is currently acknowledged
The channel is currently in a normal state. Previously, an alarm condition did occur but it
wasn’t acknowledged.
For a Follow Channel:
The channel is setup to follow another channel’s state. Its state depends on the channel that
its following.
