DIRECTOR Series Operator’s Guide
Document Revision: 0802
Page 14
Location Of CD-R/RW Recorder Parts And Controls

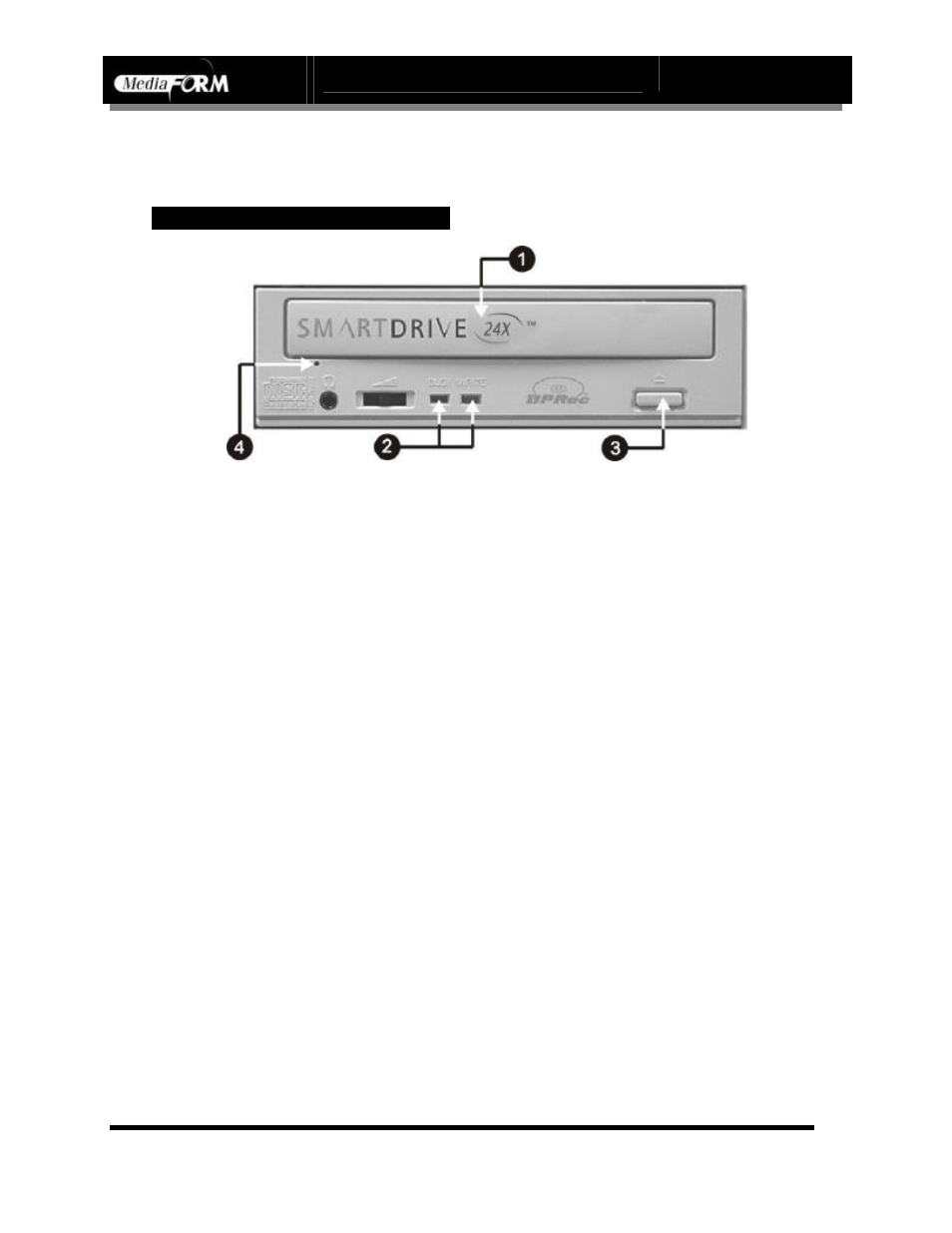

MediaFORM SmartDRIVE 24x
Legend
1)
Disc tray - Discs are loaded and removed from this tray. Pressing the eject button will open the
tray when the power to the DIRECTOR is switched on.
2)
Read and write status LEDs - These indicators light up when the recorder is reading or writing.
3)
Eject button - This button is used to manually open or close the disc tray.
4)
Eme rgency eject pinhole - In the event that the disc tray will not open by pressing the eject
button insert the tip of a large paper clip into this hole and push.
