1 Introduction

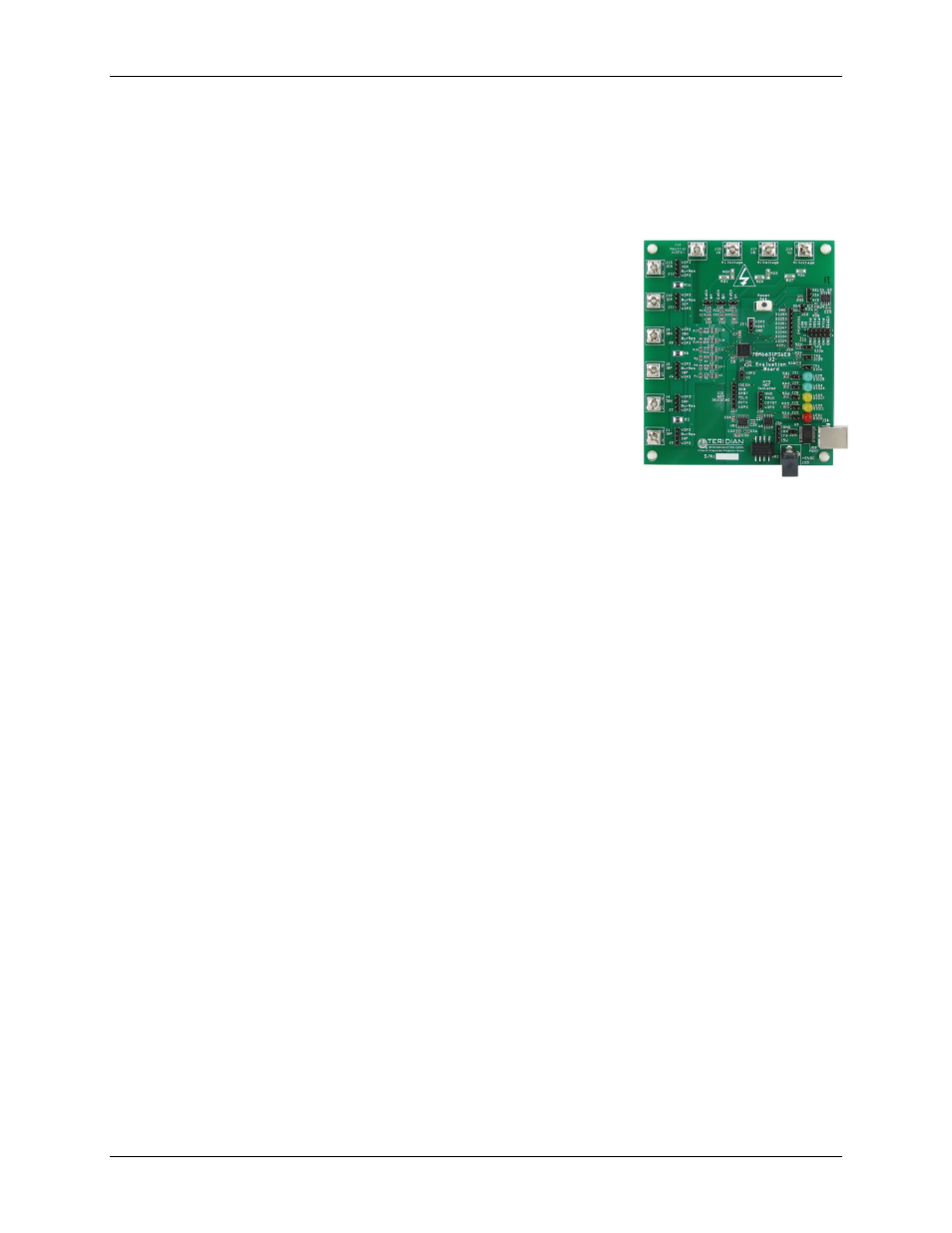

The Teridian™ 78M6631 Evaluation Board is an electrical measurement unit for performing

measurements on a 3-phase AC system. It incorporates the 78M6631 power and energy measurement

device and connects to a PC through a USB cable such as the one provided in the demo kit. The

Evaluation Board demonstrates the capability of the 78M6631 energy meter controller chip for

measurement accuracy and overall system use.

The on-board 78M6631 is pre-programmed with the Firmware Demo

Code.

The 78M6631 energy measurement data and status is read back

over the serial UART interface using a text-based CLI command set (easy

manual operation is performed using HyperTerminal) and through the

serial peripheral interface (SPI).

Refer to the 78M6631 Firmware Description Document for details about

the firmware and the use of the CLI commands.

1.1 Package Contents

The 78M6631 Evaluation Board Demo Kit includes:

78M6631 Evaluation Board

USB Cable Assembly USB A-B 28/24 1.8M (Tyco/Amp 1487588-3)

In-Circuit Emulator (ICE) Adaptor

Three CTs

CD with documentation

1.2 System Requirements

The 78M6631 Evaluation Board requires use of a PC with the following features:

PC (1 GHz, 1 GB) with Microsoft Windows XP

®

, Windows Vista

®

, or Windows 7 operating systems,

equipped with USB port

Minimum 1024 x 768 video display resolution
