78M6631 Evaluation Board User Manual

UM_6631_077

10

Rev 1

2.4 3-Phase System Connection

The 78M6631 Evaluation board supports both Wye (3-phase 4-wire) and Delta (3-phase, 3 wires)

configurations. The current transformers are not provided with the evaluation board and must be selected

by the customer. A burden resistor (12.4 Ω – value dependent on CT) can be connected on each phase

through dedicated jumpers. Particular attention must be placed in configuring the burden resistors as the

current transformers can generate high voltage if no burden resistor is present (or if its value is too high).

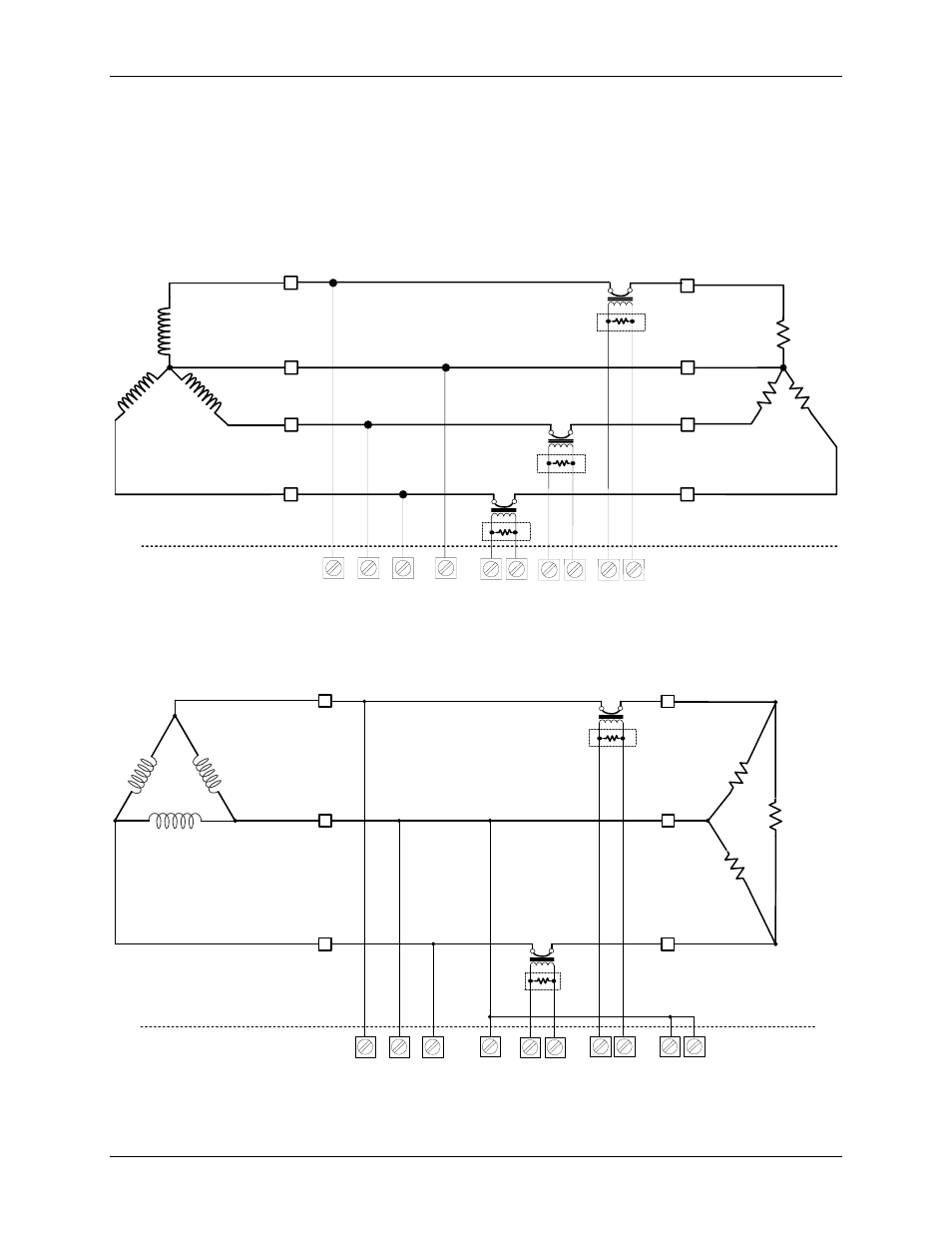

Figure 2 and 3 shows a connection diagram using external burden resistor, in this case the external

burden resistor can replace the on-board or used in parallel.

A

Neutral

B

C

LOAD A

LOAD B

LOAD C

A

Neutral

B

C

J15

(VA)

J17

(VB)

J19

(VC)

J14

(V3P3)

J13

(ICN)

J10

(ICP)

J9

(IBN)

J5

(IBP)

J4

(IAN)

J1

(IAP)

External Equipment

78M6631 Evaluation Board

Optional

Optional

Optional

Figure 2: 78M6631 Evaluation Board Application Diagram (Wye 3-phase 4-wires)

J15

(VA)

J17

(VB)

J19

(VC)

J14

(V3P3)

J13

(ICN)

J10

(ICP)

J9

(IBN)

J5

(IBP)

J4

(IAN)

J1

(IAP)

A

B

C

LOAD A-C

A

B

C

LOAD A-B

LOAD B-C

External Equipment

78M6631 Evaluation Board

Optional

Optional

Figure 3: 78M6631 Evaluation Board Application Diagram (Delta 3-phase 3-wires)
