Make Noise MATHS User Manual

Page 3

Installation:

The Make Noise MATHS is an electronic signal generator requiring 60mA of +12V and 60ma

of -12V regulated power and properly formatted distribution receptacle to operate. It is

designed to be used within the euro format modular synthesizer system.

Go to

http://www.doepfer.de/a100_man/a100t_e.htm

for the details of this format.

To install, find 20HP of space in your euro-rack synthesizer system, confirm proper

installation of included power cable on backside of module (see picture below), plug the

16pin end power cable into the euro-rack style power distribution board, minding the polarity

so that the RED stripe on the cable is oriented to the NEGATIVE 12 volt supply line. This is

USUALLY at the bottom.

Please refer to your case manufacturers’ specifications for location of the negative supply.

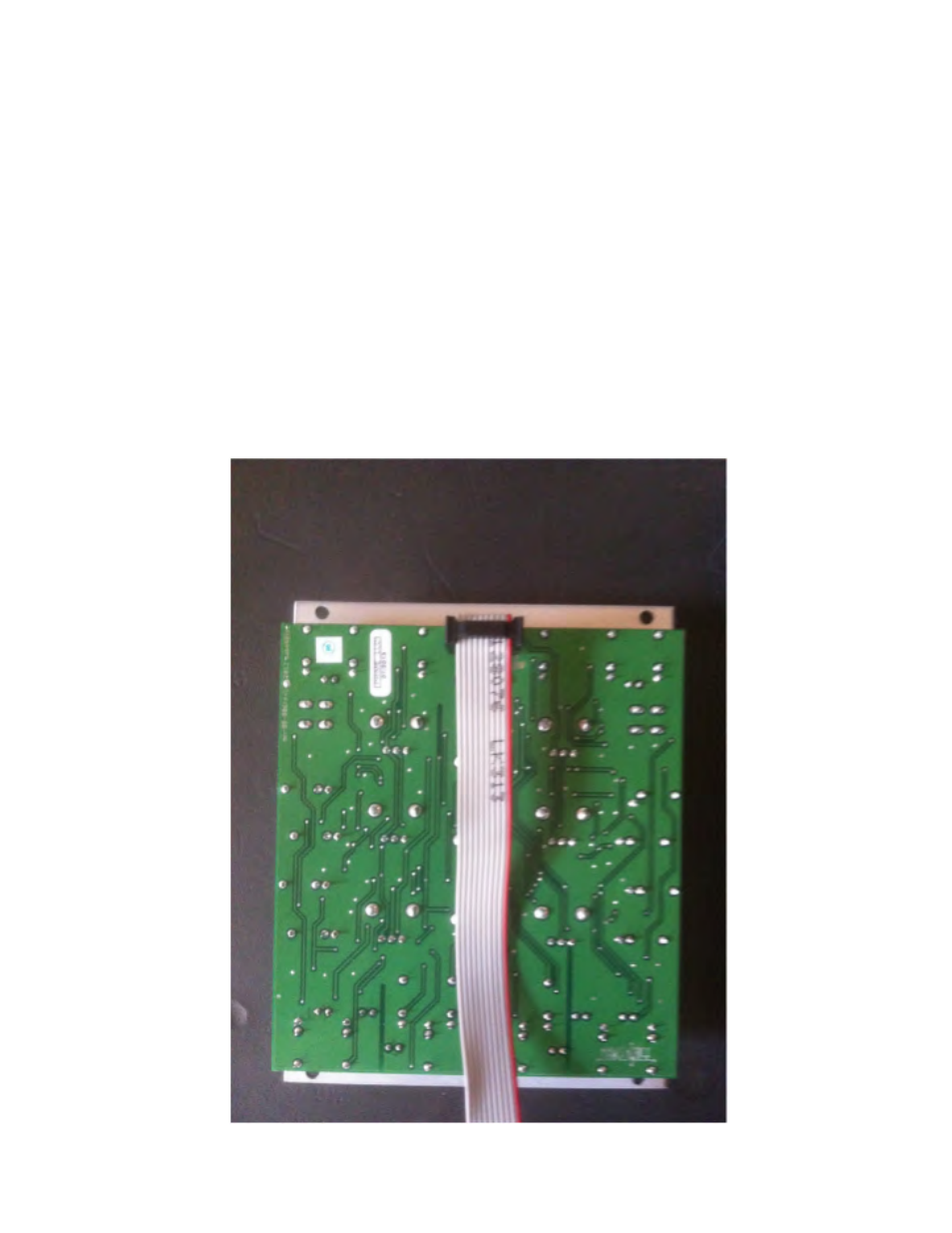

Proper installation of included power cable on module.

Please note the RED BAND.
