Channel Name
Channel Number

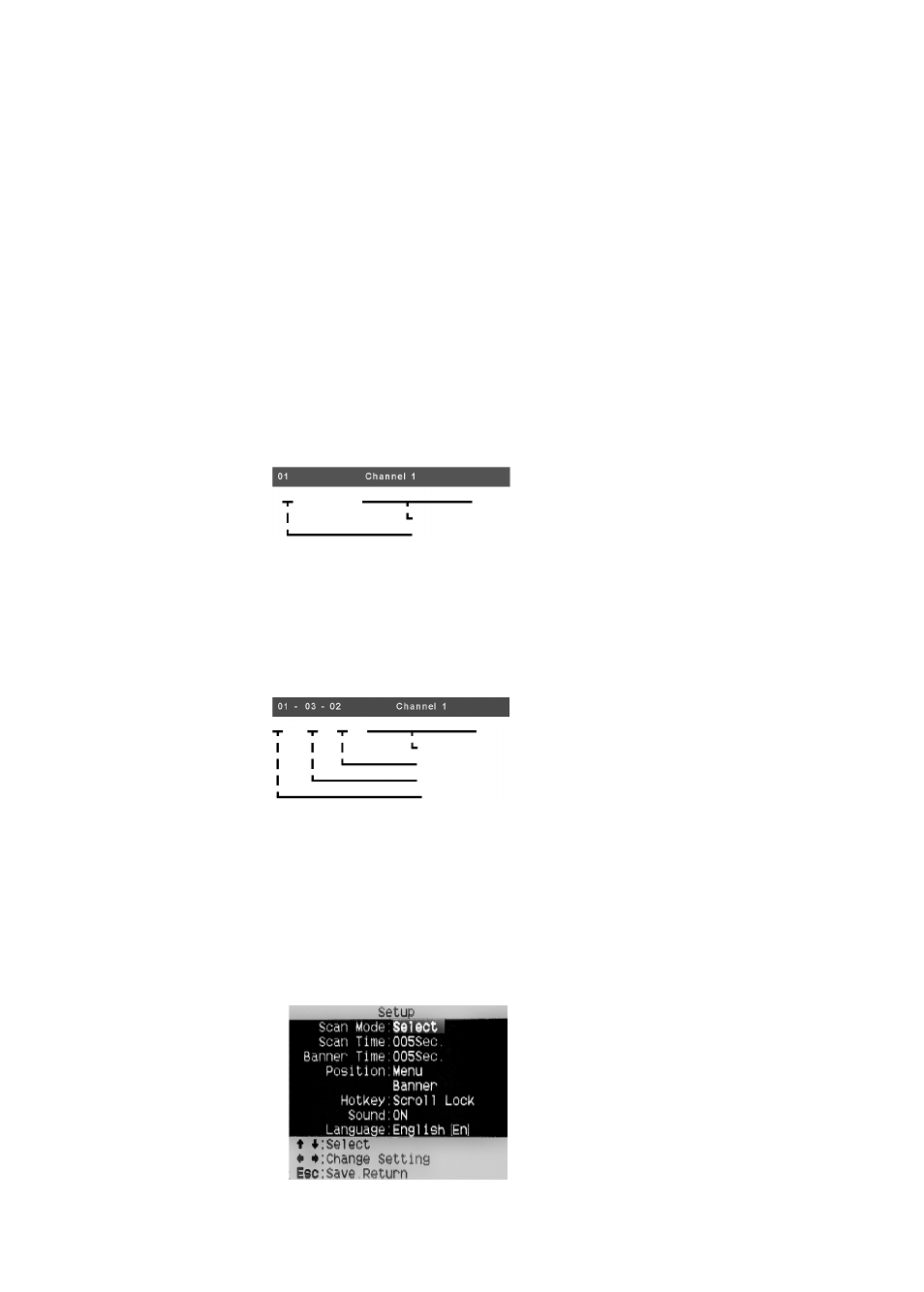

Fig. 17: Channel Banner (Single Layer)
Channel Name
Channel Number
Fig. 18: Channel Banner (Cascade Layer)
2
nd
Layer Channel Number
1
st
Layer Channel Number
Figure 19: OSD Setup
7.1.7. Function Control Menu
The detail of control functions will be described in later sections. The list of control functions:
F1: Set up: basic set up menu
F2: Scan: autoscan function
F3: Lock: setup lock/unlock, only available when F5 Security is enabled.
F4: Rename: rename selected channel name.
F5: Security: security function and user authority settings
F6: Lock Port: PC port lock function (for administrator only)
7.2. Channel selection in OSD
7.2.1. Channel select to computer
Use the and arrow keys to highlight a computer and then to select it and
leave OSD menu. A banner with the channel name will be shown on left-upper corner of the screen.
7.2.2. Channel select to cascade port
A plus mark (+) showing in the left of channel name indicates that the port is under cascade channing.
Pressing in this channel will enter one level down, and the screen pops up the listing of the
computers of the slave KVM.
7.2.3. Return from cascade port
After entering cascade port, press will return to upper layer OSD menu.
7.3. Setup in OSD:
Please use or arrow key to select the item you want to change, and use or
arrow key to change the settings. Press to exit and save the setup settings.
