PS960GLE/ PS965GME Mainboard
18

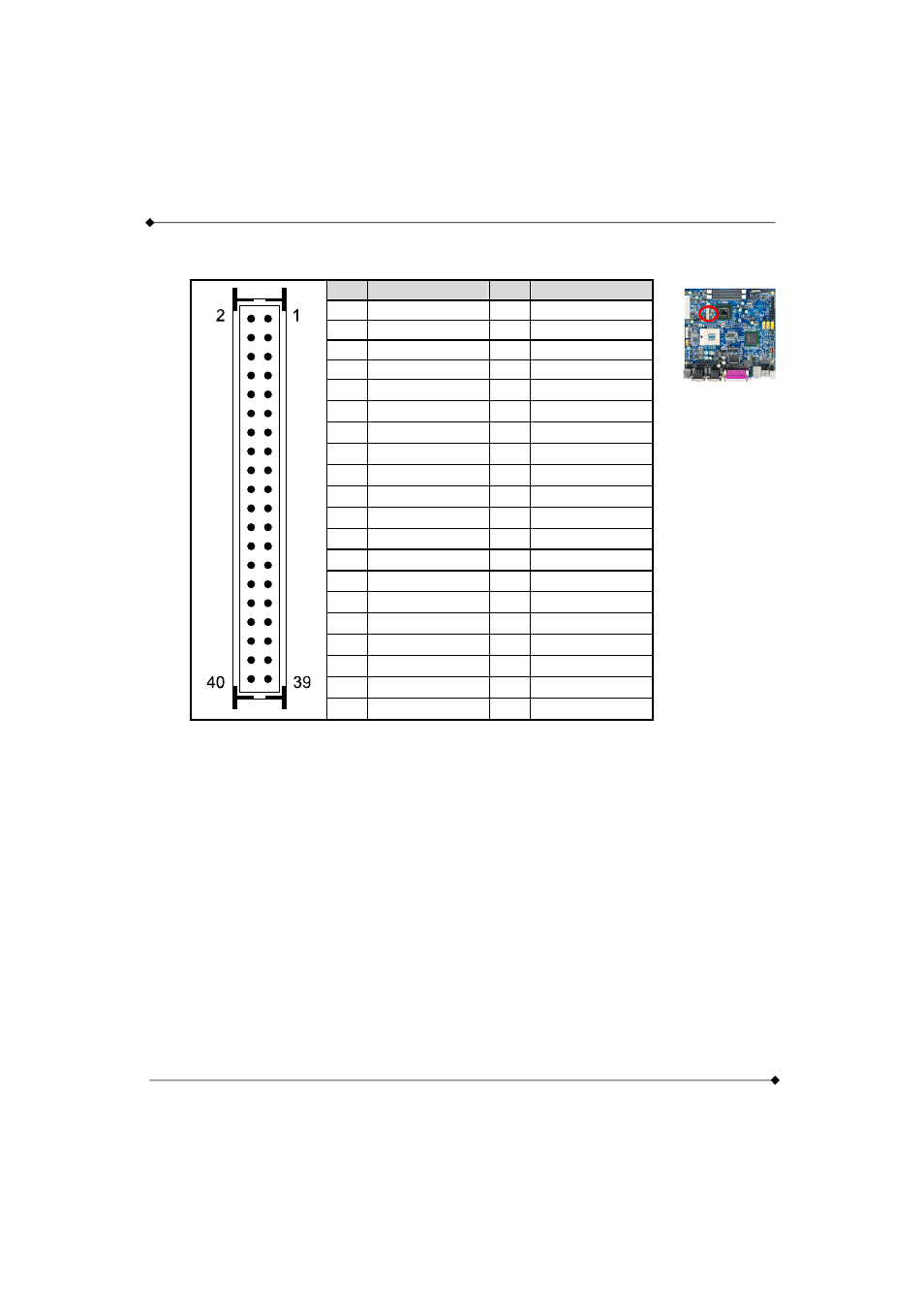

1.4.29 CON2: LVDS
Pin Assignment Pin Assignment
2 +12V/+5V 1 +12V/+5V
4 GND 3 GND
6 LCDVDD 5V/3.3V 5 LCDVDD 5V/3.3V
8 GND 7 GND
10 BCKLITE_ON 9 BRIGHTNES
12 LVDS_GND 11 LVDS_GND
14 CHB_TX0+ 13 CHA_TX0+
16 CHB_TX0- 15 CHA_TX0-
18 LVDS_GND 17 LVDS_GND
20 CHB_TX1+ 19 CHA_TX1+
22 CHB_TX1- 21 CHA_TX1-
24 LVDS_GND 23 LVDS_GND
26 CHB_TX2+ 25 CHA_TX2+
28 CHB_TX2- 27 CHA_TX2-
30 LVDS_GND 29 LVDS_GND
32 CHB_TXC+ 31 CHA_TXC+
34 CHB_TXC- 33 CHA_TXC-
36 LVDS_GND 35 LVDS_GND
38 CHB_TX3+ 37 CHA_TX3+
40 CHB_TX3- 39 CHA_TX3-
