PS960GLE/ PS965GME Mainboard
7

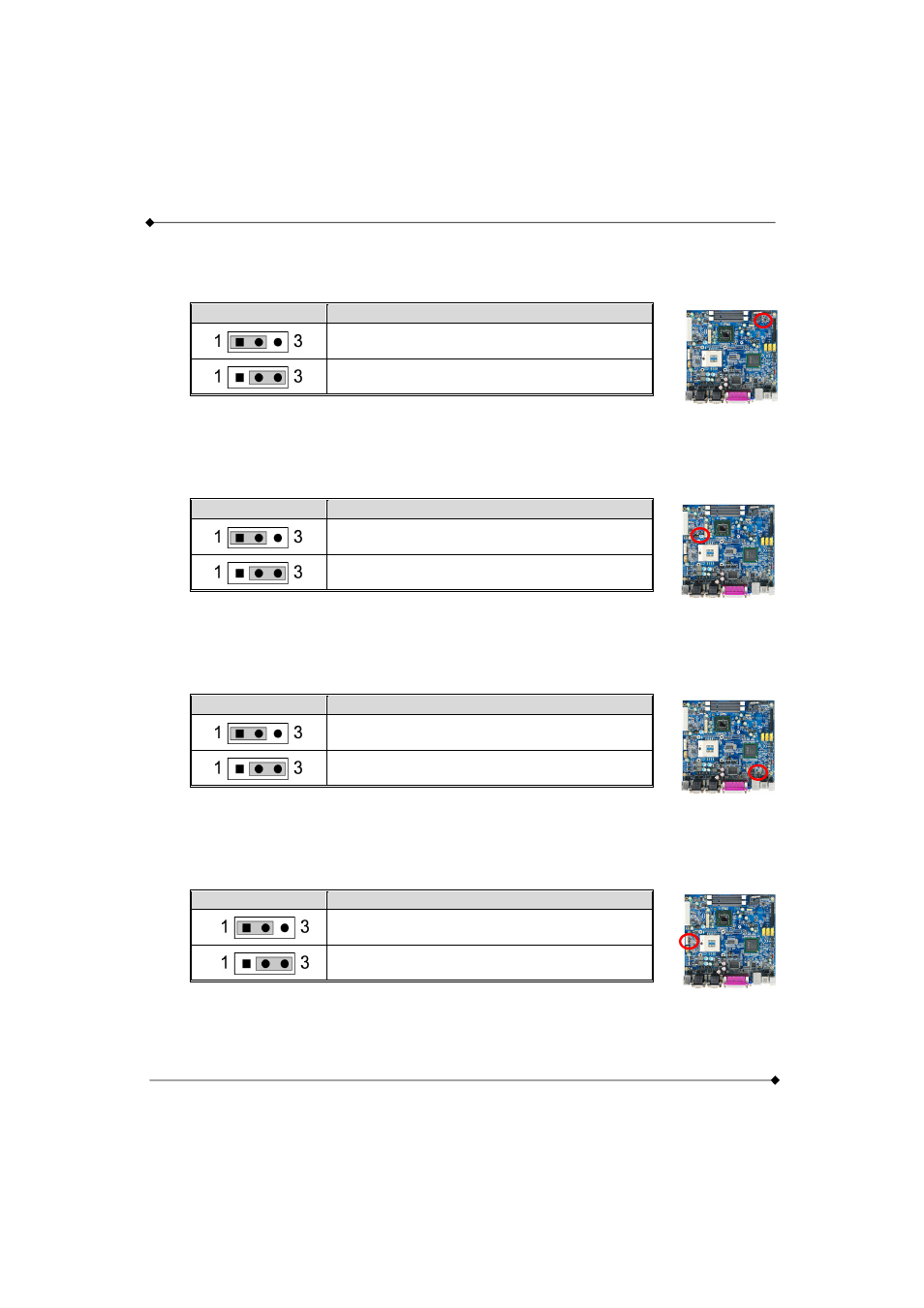

1.4.2 JP2: CF Card Master/ Slave Jumper
This Jumper is to select the CF works on Secondary Channel master device or Slave device.
JP2 Assignment
Pin 1-2 Closed
Slave (Default)
Pin 2-3 Closed
Master
1.4.3 JP3: LVDS VDD POWER
It’s for LVDS VDD power setting.
JP3 Assignment
Pin 1-2 Closed
5V
Pin 2-3 Closed
3V (Default)
1.4.4 JP4: USB POWER
+5V or +5V STB for USB
JP4 Assignment
Pin 1-2 Closed
5V (Default)
Pin 2-3 Closed
5V STB
1.4.5 JP5/ JP6: FAN Power
This is a 3-pin header for the fan. JP5 is for Fan2, JP6 is for Fan3.
JP5/ JP6 Assignment
Pin 1-2 Closed
12V (Default)
Pin 2-3 Closed
5V
