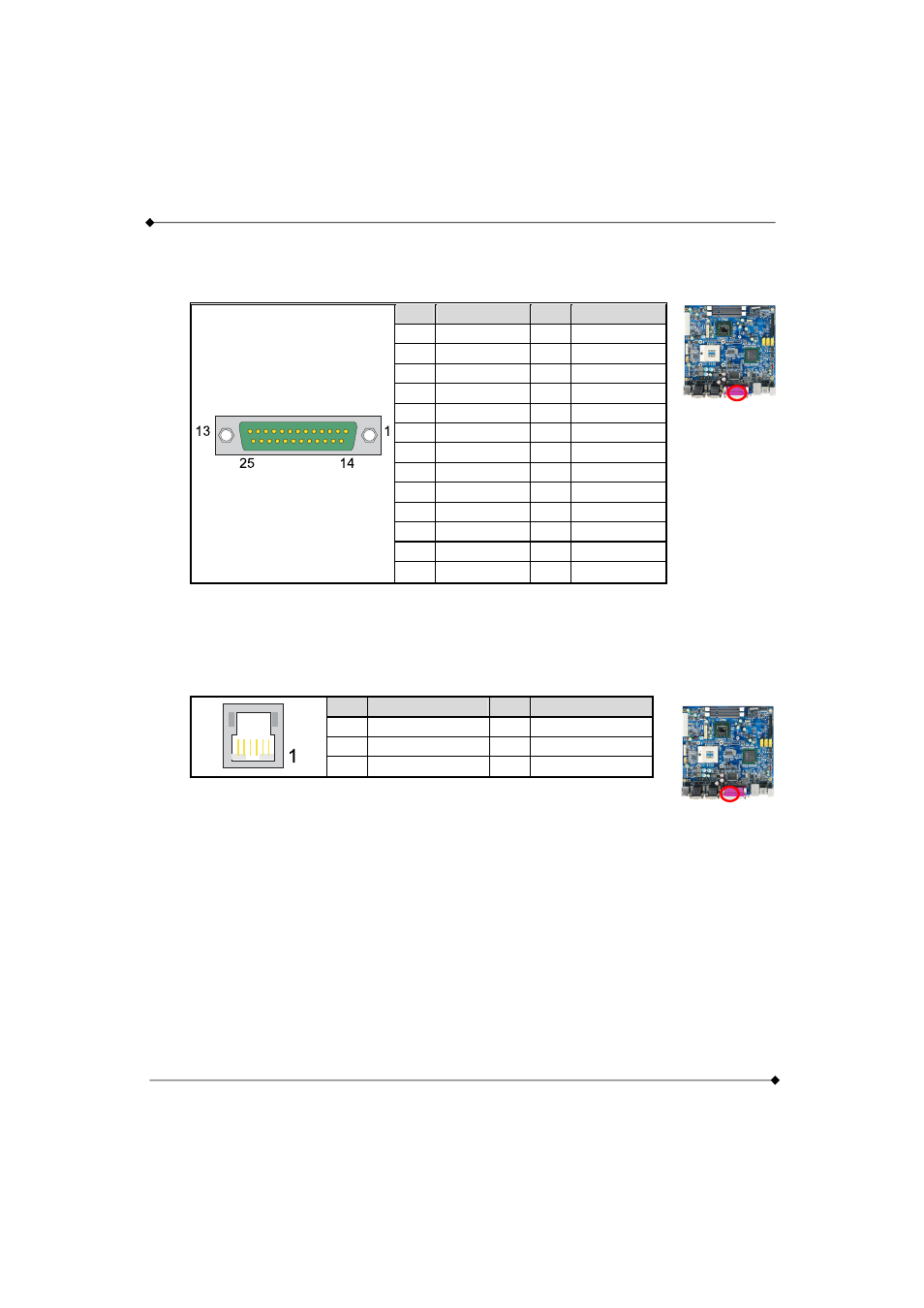

1.4.16 PRT1: LPT PORT
The following table shows its pin assignments.
Pin Assignment Pin Assignment
1 RSTB- 14 RAFD-
2 RPDR0 15 P_ERR-
3 RPDR1 16 RINIT_P-
4 RPDR2 17 RSLIN-
5 RPDR3 18 GND
6 RPDR4 19 GND
7 RPDR5 20 GND
8 RPDR6 21 GND
9 RPDR7 22 GND
10 P_ACK- 23 GND
11 P_BUSY 24 GND
12 P_PE 25 GND
13 P_SLCT
1.4.17 RJ12
The following table shows its pin assignments.
Pin Assignment Pin Assignment
1 GND 2 GND
3 Sensor_IN 4 24V/12V
5 N/C 6 Sensor_IN
