PS960GLE/ PS965GME Mainboard
17

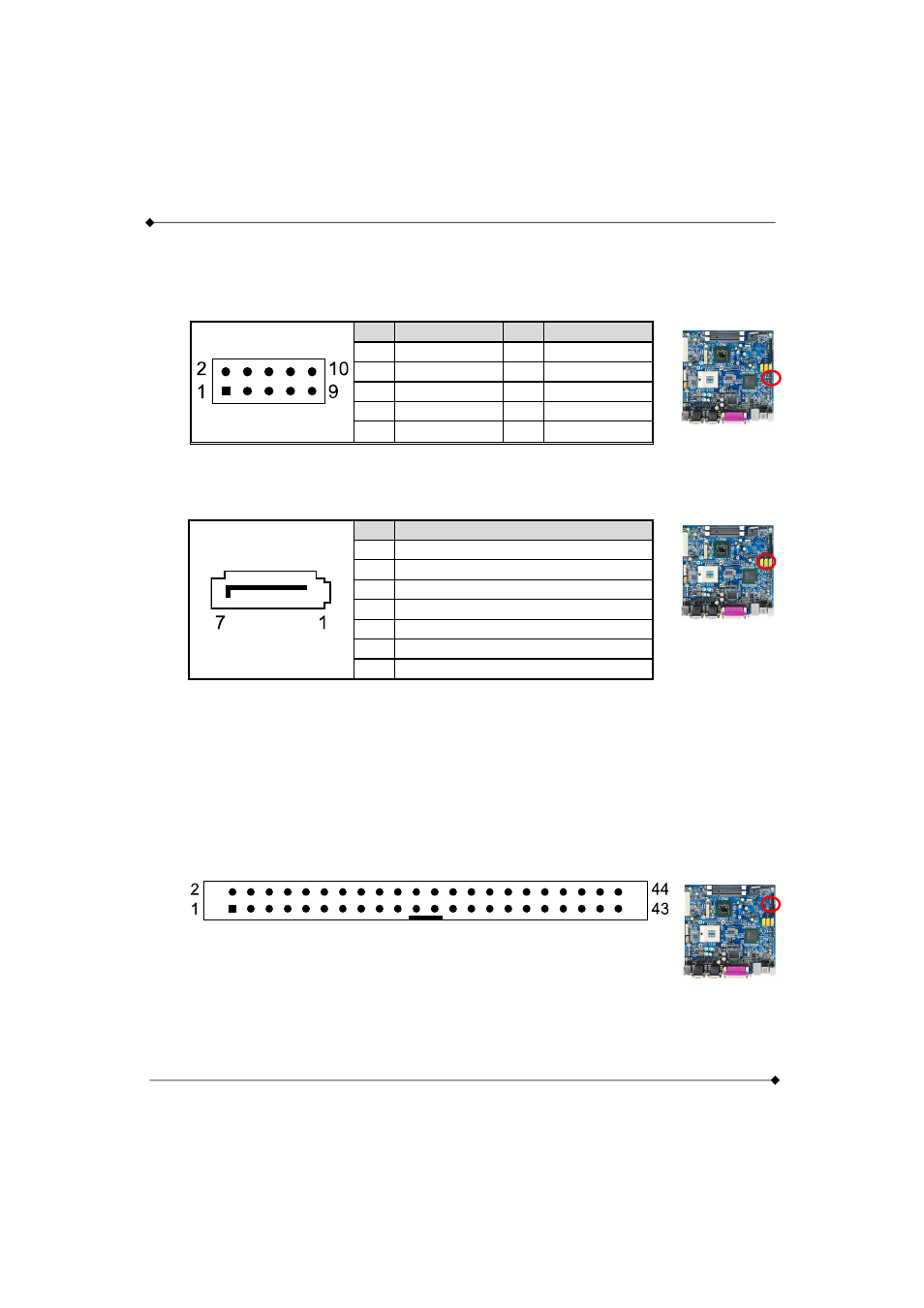

1.4.26 USB2/ USB3: USB Connector
These USB ports are used to attach with USB devices, such as keyboard, mouse and other USB
supported devices.
Pin Assignment Pin Assignment
1 N/C 2 VCC
3 GND 4 DA-
5 DB+ 6 DA+
7 DB- 8 GND
9 VCC 10 N/C
1.4.27 SATA1/ SATA2/ SATA3
Pin Assignment
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX+
6 SATA_RX-
7 GND
1.4.28 IDE1: Mini-IDE Connector
The mainboard provides one Mini-IDE connector that supports Ultra ATA 100/ 66/ 33 Mini-IDE
device. You can attach a maximum of two Mini-IDE devices, such as hard disk drive (HDD),
CD-ROM, DVD-ROM, etc. using Mini-IDE ribbon cables.
In general, two Mini-IDE devices can be attached onto one Mini-IDE connector. If you attach two
Mini-IDE HDDs, you must configure one drive as the master and the other one as the slave.
