6. Repeatability of titration analysis: 0.2%
7. Electronic unit repeatability: ≤0.2mV
8. Electronic unit stability: ±0.3mV ±1 bit/3h
9. Normal operating conditions:
ambient temperature: (5.0~35.0) ℃
relative humidity: ≤80%
power supply: (220±22)V, frequency: (50±1)Hz;
Without disturbing by electron magnetic field except terrestrial magnetic field.
10. Outside dimensions (mm): 360Ч300Ч300 (l×w×h)
11. Weight (kg): about 10.
III. CONSTRUCTION
1. Front panel of the meter

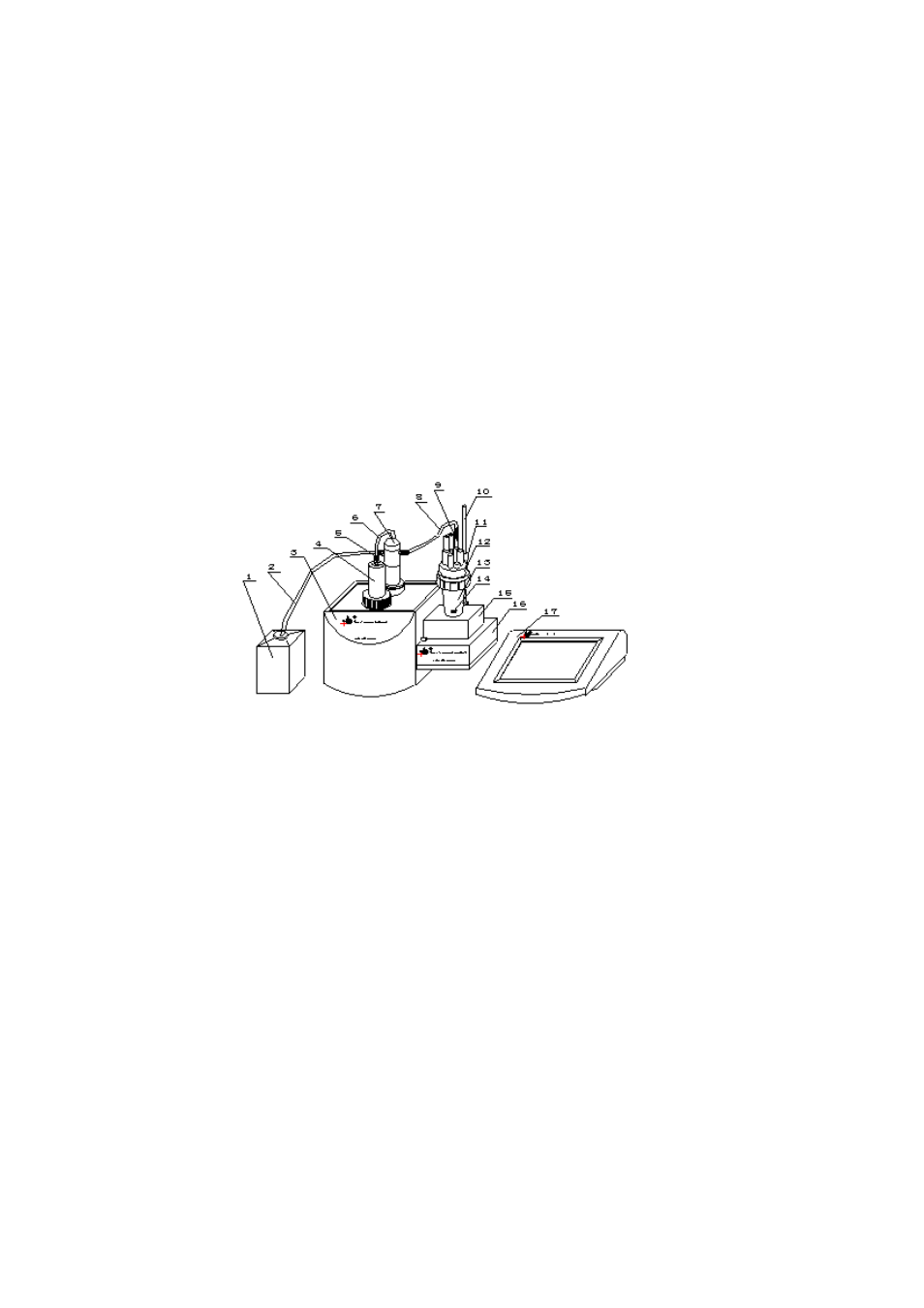

Diag.1
(1) Solution bottle (2) feeding tube (3) volume titration unit (4) burette (5) joint nut
(6) feeding tube (7) turning valve (8) feeding tube (9)dripping tube
(10) electrode pole (11) screw (12) beaker supporter (13) beaker
(14) stirring drop (15) stirrer (16) potential measuring unit (17) control unit
As shown in diag.1, three parts constitute the meter: control unit (17), volume titration unit (3) and
potential measuring unit (16). Computer (must be installed
TIT-5 automatic titrator control software)
can be replace control unit to control titration.
