The LAARS Gateway LER and RER Startup Guide

Page 13

LAARS Gateway Startup Guide

Page 13 of 32

LAARS Heating Systems Company, 20 Industrial Way, Rochester, NH 03867 USA

Web:

www.laars.com

Toll Free: (800) 900-9276

4

CONNECT TO GATEWAY’S WEB GUI TO SETUP IP ADDRESS FOR BACNET/IP AND

MODBUS TCP

Download the RUINET Utilities from the ProtoCessor web site (under Utilities section – Install.zip)

www.protocessor.com/tech_support/Design_Documents

Run Install.zip and follow the installation instructions

Once installed, the FieldServer Utilities can be located in the Windows Start menu as a desktop icon

4.1

Connect the PC to the Gateway via the Ethernet port

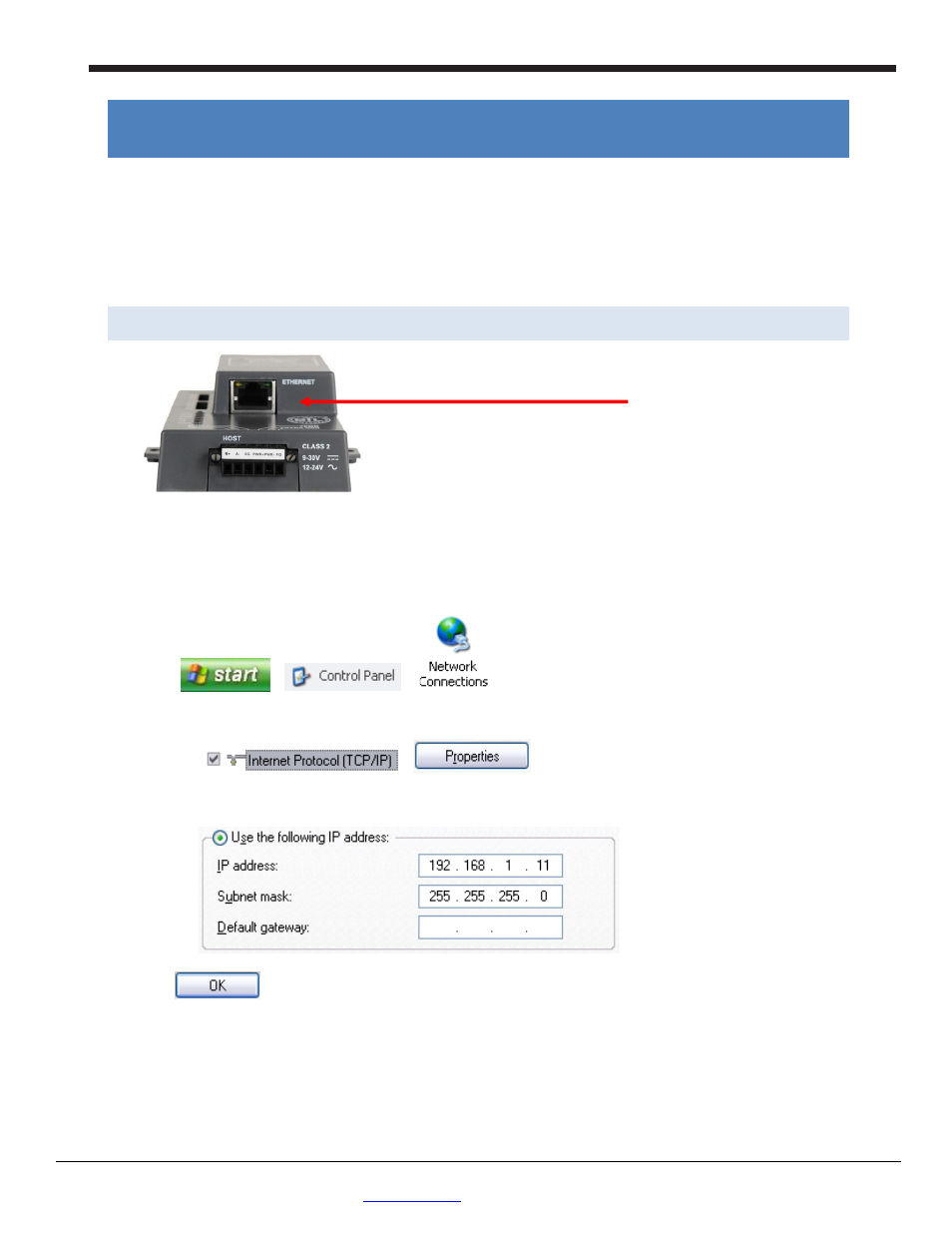

Figure 7: Ethernet port location of Gateway

Connect a standard CAT5 Ethernet cable (straight through or cross) between the PC and Gateway

The Default IP Address of the Gateway is 192.168.1.24, Subnet Mask is 255.255.255.0. If the PC and the

Gateway are on different IP Networks, assign a static IP Address to the PC on the 192.168.1.xxx network

Go to

>

>

Right-click on Local Area Connection > Properties

Highlight

>

Select: Use the following IP address

Click

twice

Ethernet Port
