Wiring Connections to Gateway RER and LER

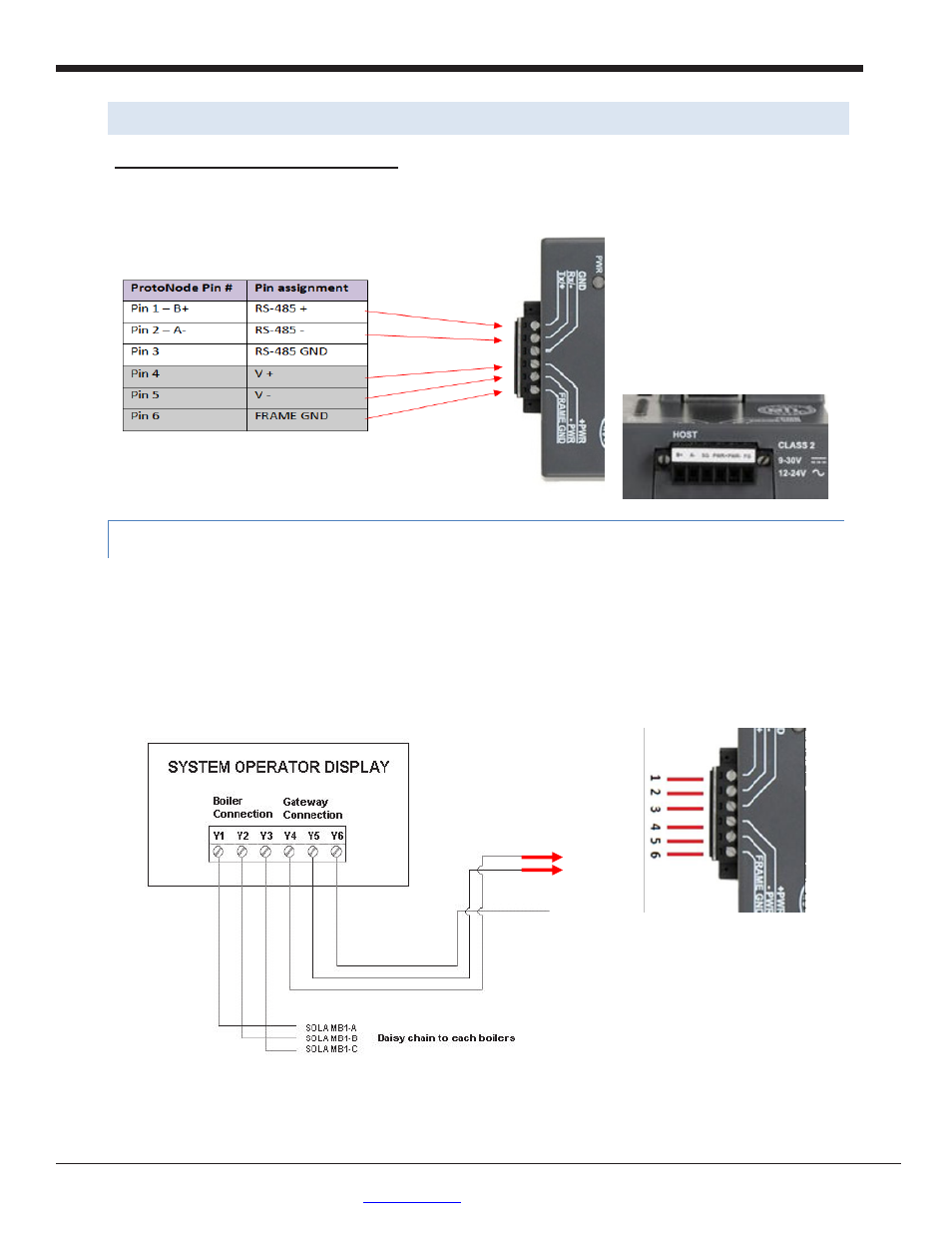

Gateway 6 Pin Phoenix connector – Pinouts

3.2.1

Sola wiring to the Gateway using Display

On the System Operator Display, connect terminal Y4 (RS-485+) to Pin 1 - RS 485+ on the Gateway’s 6 pin

Phoenix connector.

Connect terminal Y5 (RS-485) to Pin 2 - RS 485- on the Gateway’s 6 pin on the Gateway’s Phoenix

connector.

Y6 (Ground) does not need to be grounded to the Gateway.
