14. Additional Mounting Information:
Sources for the optional items shown below:
 3-gang stainless steel blank cover. Available from:
Leviton: part number 84033-40
Graybar: part number 88158404
 Magnetic switch set: G.R.I. part number: 505

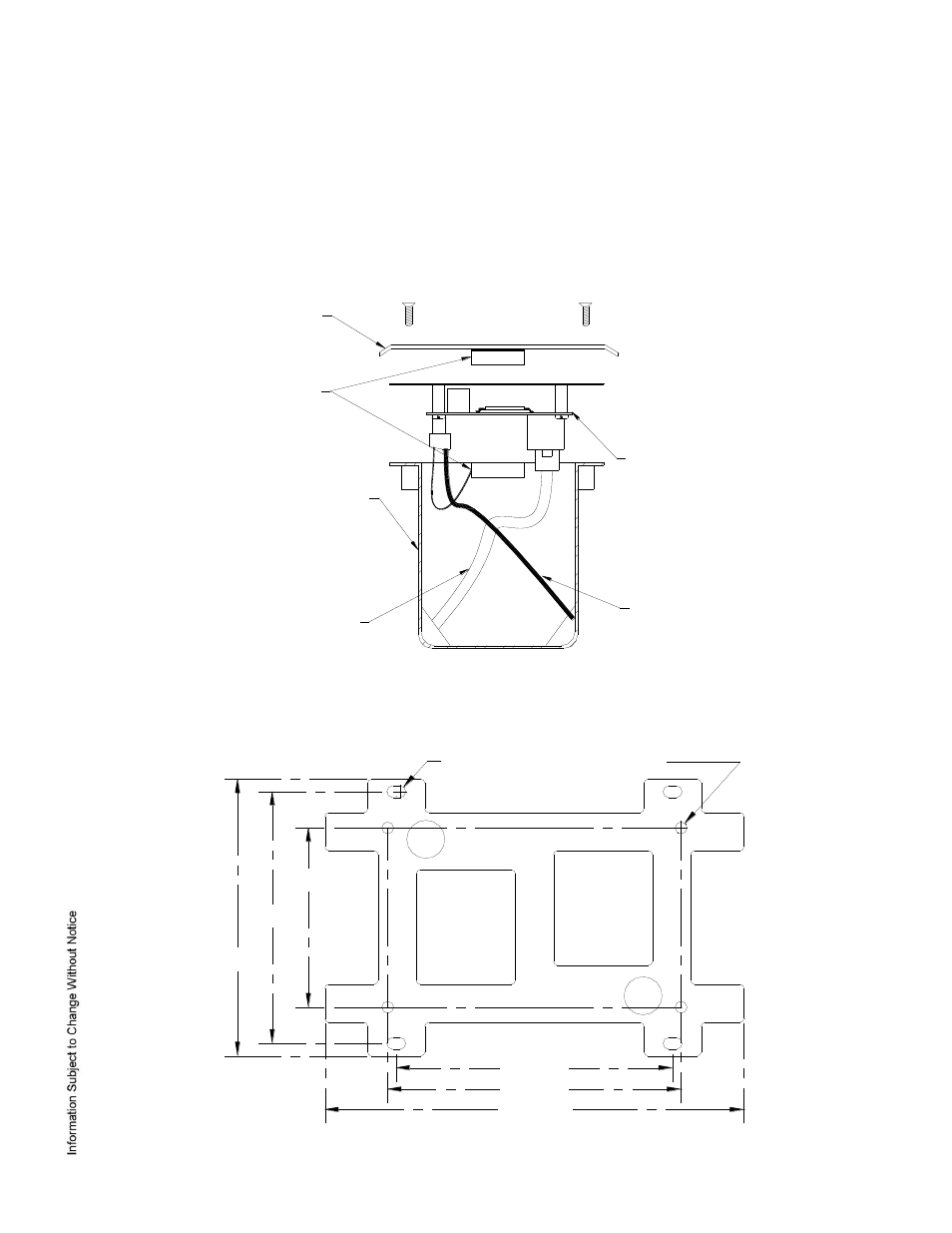

Mounting Plate Dimensions:
FIELD WIRING
EP1501 WITH INCLUDED
MOUNTING PLATE
TO ETHERNET
NETWORK
OPTIONAL 3-GANG
JUNCTION BOX
OPTIONAL BLANK
COVER W/SCREWS
OPTIONAL MAGNETIC
TAMPER SWITCH
3.85 [97.8]
2.35 [59.7]
5.50 [139.7]
3.63 [92.1]
3.30 [83.8]
3.63 [92.1]
Ш0.16 [Ш4.0]
MR50 MGT HOLES
4PL
Ш0.16 [Ш4.0]
3-GANG MGT HOLES
4PL
