MS-4000: ShootingStar Reader
2305 Bering Drive
01815-004 Rev. G
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: [email protected]
Page 5 of 8
MS-4000
Quick S
tart Guide
3.3
IntelliProx Connections
The reader is connected to TB1, pins 1, 5, and 6 (no connection is made to pins 2, 3, and 4).

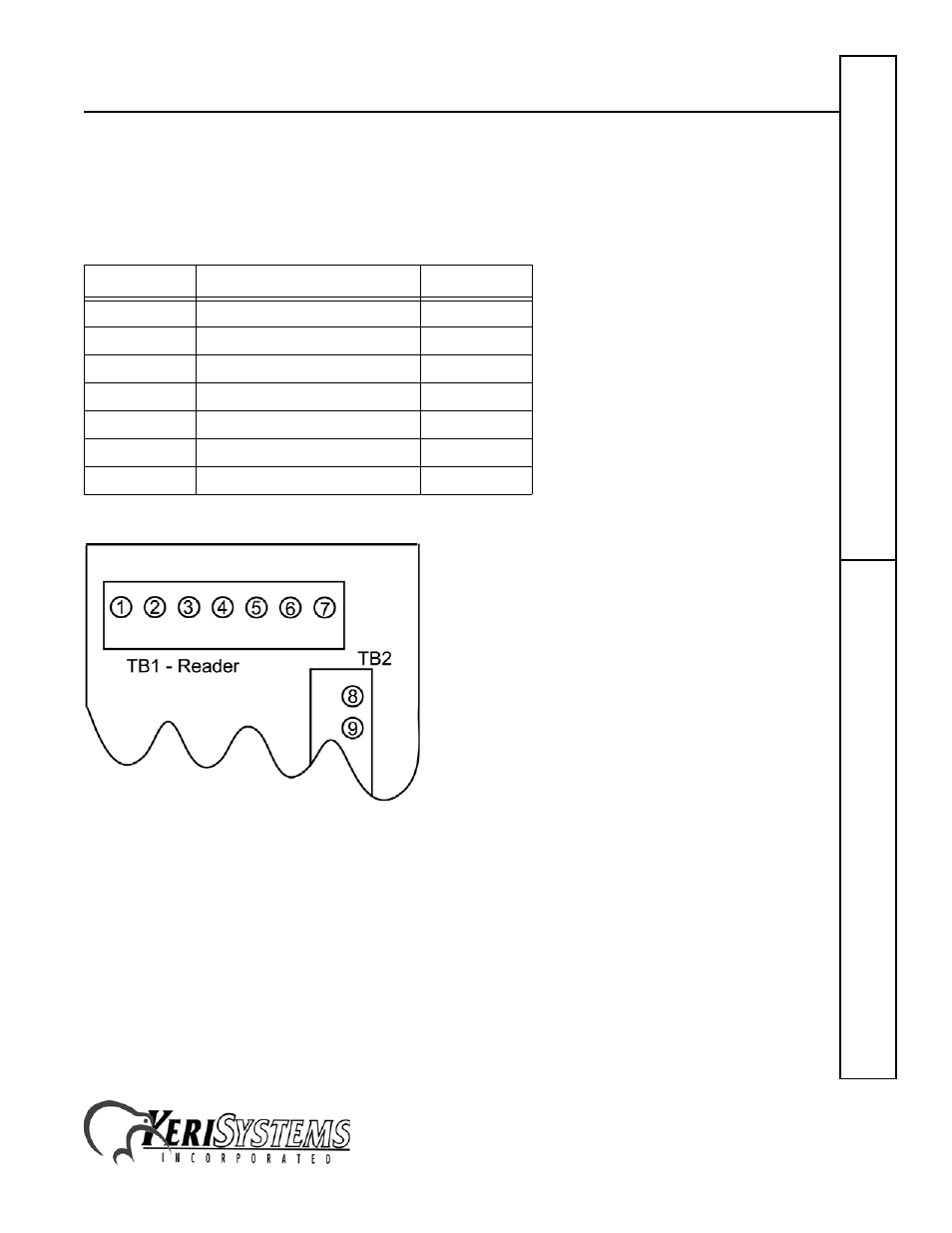

Connecting to the IntelliProx – TB1
Figure 4: IntelliProx Connections
Pin #
Function
Wire Color
1
Reader Antenna
Blue
2
no connection
–
3
no connection
–
4
no connection
–
5
Reader Power
Red
6
Reader Ground
Black
6
Shield
Silver
