Carrier 06D User Manual
Page 7
7

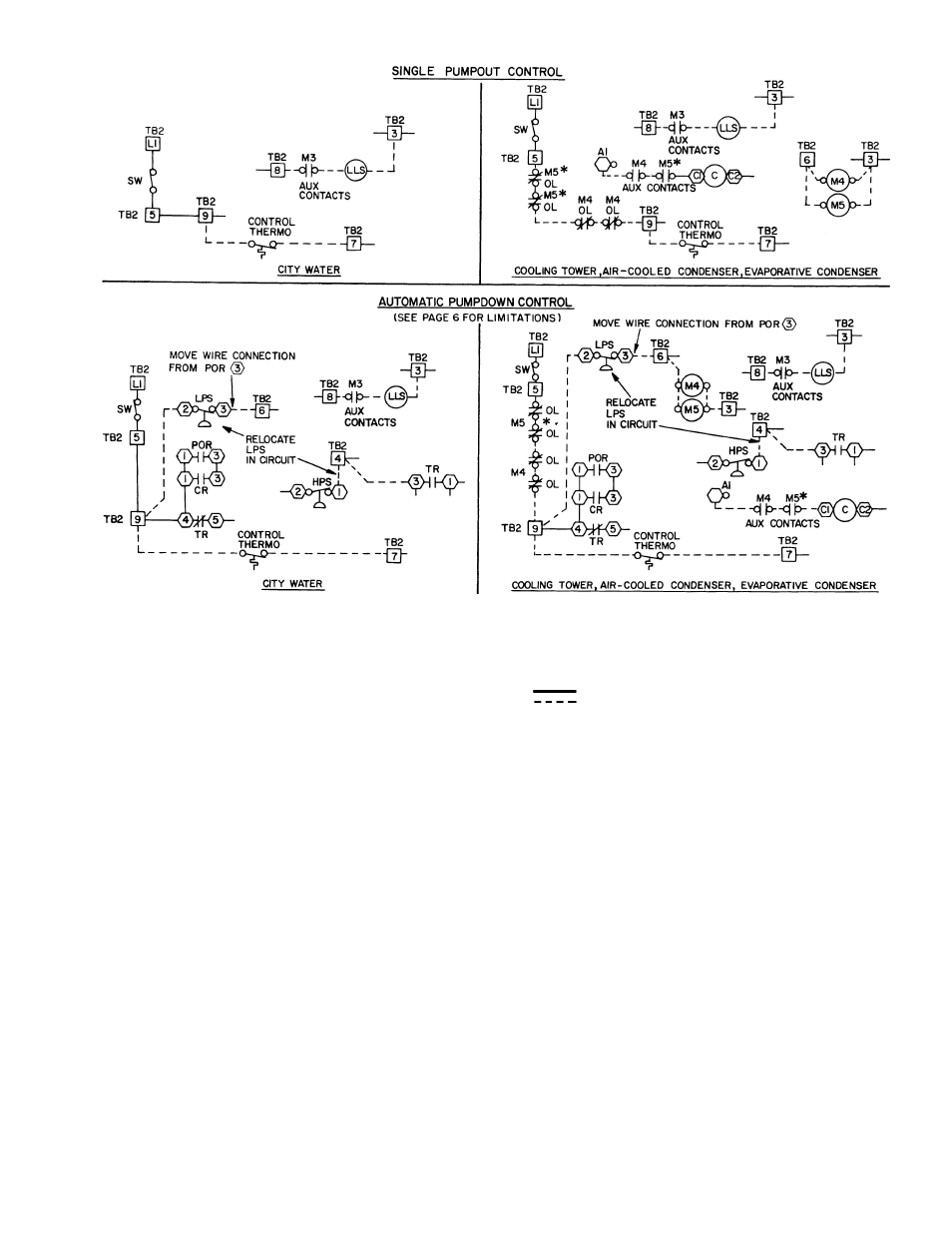

Fig. 6 — Recommended Field Wiring
LEGEND
AUX — Auxiliary
OL
— Overload Relay
C
— Contactor
POR — Pumpout Relay
CR
— Control Relay
SW
— Switch
HPS — High-Pressure Switch
TB
— Terminal Block
LLS — Liquid Line Solenoid Valve
TR
— Timer Relay
LPS — Low-Pressure Switch
Factory Wiring
M3
— Evaporator Fan or Chilled Water Pump
Field Wiring
M4
— Cooling Tower Pump, Air-Cooled or
Evaporative Condenser Fan
M5
— Cooling Tower Fan or
Evaporative Condenser Pump
*Optional.
