14
LEGEND FOR FIG. 12
Cylinder Heads — Disassemble cylinder heads by re-
moving cap screws and prying up on side between cylinder
head and valve plate to break heads loose from valve plate. Do
not strike cylinder heads to break loose.
Check heads for warping, cracks and damage to gasket
surfaces. When replacing cylinder head, torque cap screws
30 to 35 lb-ft to prevent high to low side leak in center portion
of cylinder head gasket.
Service Replacement Compressors — Replace-
ment compressors are not equipped with control valves. One or
both side bank cylinder head(s) is plugged with a spring loaded
plug piston assembly. Compressor will run fully loaded with
piston plug(s) in place.
Transfer original capacity control valve(s) to replacement
compressor (ensures proper valves are used with correct set-
ting). For sealing purposes, install a plug piston assembly into
each cylinder head of original compressor from which a con-
trol valve was removed.
Three Allen head cap screws hold capacity control valve in
place (Fig. 14). Remove screws using a cut-down 3 /
16
-in. Allen
wrench, and pull valve from cylinder head.
Remove same number of piston plugs from replacement
compressor as number of unloaders supplied with original
compressors. Three Allen head cap screws hold piston plug
assembly in place. Remove flange cover, gasket, spring and
bypass piston plug (Fig. 15). A tapped hole is provided in
piston to allow it to be pulled out. Hole has same thread
diameter as cap screws removed above.
TOP
8
1
2
3
4
5
6
7
LEGEND
1 — Suction Strainer
Assembly
2 — Oil Pump Bearing Head
Assembly
3 — Rotor Retaining Ring
4 — Oil Pump Drive Segment
5 — Oil Pump Rotor
6 — Drive Segment Cap
Screws
7 — Bearing Head Cap
Screws
8 — Oil Pump Inlet Passage

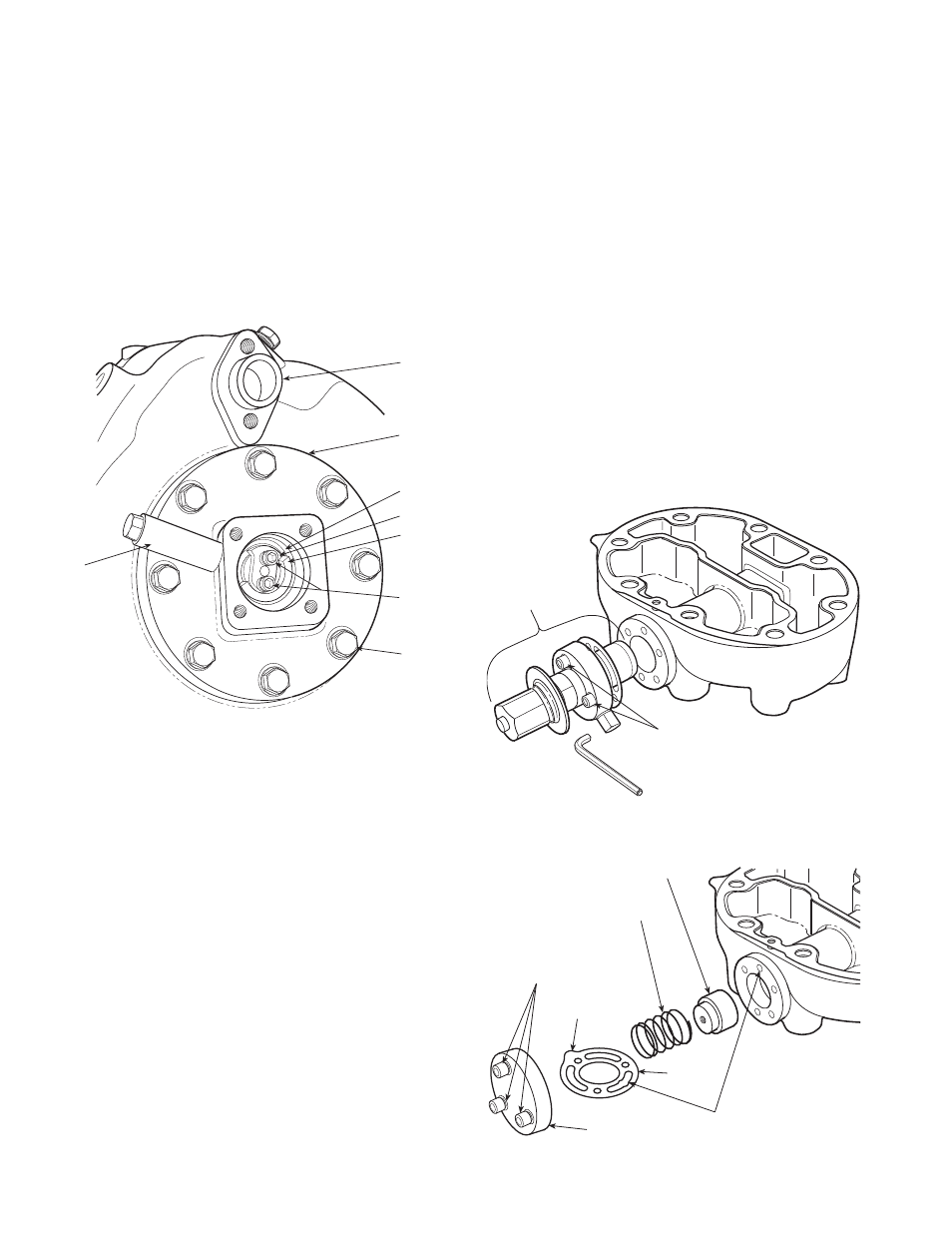

Fig. 13 — Removing Pump End Bearing Head
CAPACITY
CONTROL
VALVE
CAP SCREWS
(NONINTERCHANGEABLE
WITH FLANGE COVER
CAP SCREWS)
BYPASS PISTON PLUG
SPRING
TAB
FLANGE COVER
CAP SCREWS
(NONINTERCHANGERABLE
WITH CONTROL VALVE
CAP SCREWS)
GASKET
GAS PORT
Fig. 14 — Removal of Capacity Control Valve
Fig. 15 — Removal of Bypass Piston Plug
1 — Motor Cover Gasket
2 — Motor End Cover
3 — Discharge Manifold Connection
4 — Valve Plate Gasket
5 — Valve Plate Assembly
6 — Cylinder Head Gasket
7 — Cylinder Head
8 — Cylinder Head Washer
and Cap Screw
9 — Suction Manifold Connection*
10 — Suction Valve Positioning Spring
11 — Suction Strainer
12 — Bearing Head Gasket
13 — Oil Pump Inlet Passage
14 — Bearing Head Washer
and Cap Screw
15 — Oil Pump Cover
16 — Pump End Bearing Head
17 — Oil Drain Plug
18 — Crankcase
19 — Bottom Plate Gasket
20 — Bottom Plate
21 — Bottom Plate Washer and Cap Screw
22 — Oil Filter Screen
23 — Oil Return Check Valve
24 — Oil Level Sight Glass
25 — Motor Terminal Plate
26 — Dowel Pins (For Suction Valve
Positioning)
27 — Equalizing Tube and Lock Screw Assembly
28 — Lockwasher
29 — Rotor Lockwasher
30 — Rotor Drive Key
31 — Piston Pin Lock Ring
32 — Piston Pin
33 — Piston
34 — Oil Ring
35 — Compression Rings
36 — Eccentric Strap
37 — Eccentric Strap Side Shield
38 — Pump End Counterweight
39 — Oil Pump Drive Segment
40 — Drive Segment Cap Screws
and Lockwashers
41 — Oil Feed Guide
42 — Oil Feed Guide Retainer Spring
43 — Cover Gasket
44 — Pump Cover Cap Screw and Washer
45 — Counterweight Bolt
46 — Eccentric Strap Side Shield
47 — Motor End Counterweight
48 — Locknut
49 — Eccentric Shaft (or Crankshaft)
*Used to add compressor oil.
