Page 16
Recommended Equipment
1-8
The M-LVDS Evaluation Module

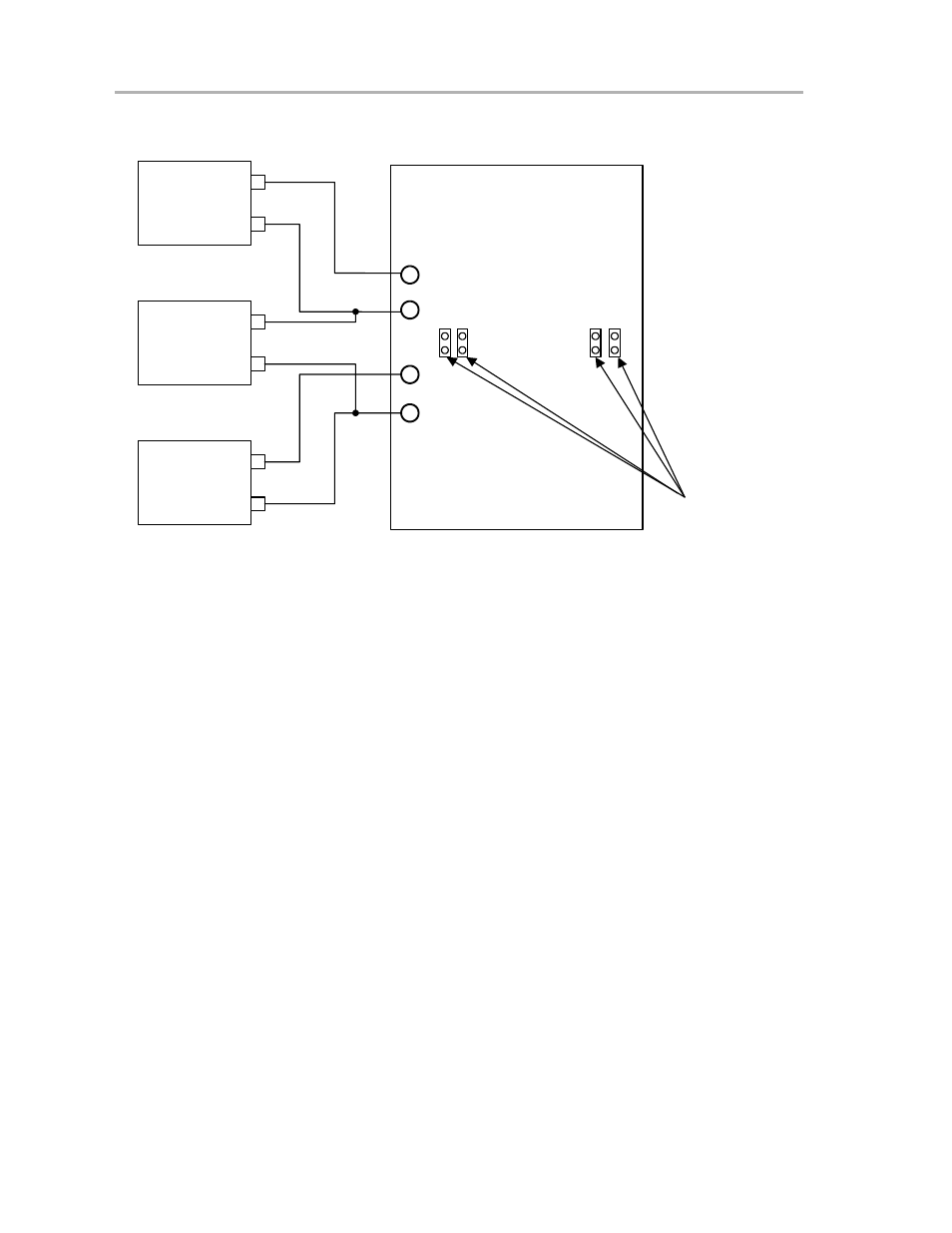

Figure 1−8. EVM Configuration for Including a Ground Potential Difference Voltage
Between Nodes
PS1
PS2
PS3
Jumpers removed from
W7, W8, W9, W10
W9
W7
W8
W10
J13
J14
J17
J18
+
−
+
−
+
−
1.5
Recommended Equipment
-
3.3 Vdc at 0.5-A power supply or multiple power supplies (with both
devices powered and enabled the board draws about 35 mA).
-
A 100-
Ω
transmission medium from the driver to the receiver, (twisted-pair
cable recommended, CAT5 cable for example).
-
A function or pattern generator capable of supplying 3.3-V signals at the
desired signaling rate.
-
A multiple-channel high-bandwidth oscilloscope, preferably above the
1-GHz range
-
Differential or single ended oscilloscope probes.
