SIMM Upgrade
B-4 Switch Settings, Upgrades, and Installations
B.2.2 Installing the DRAM SIMM
To install a DRAM SIMM, refer to Figure B-3 and proceed as follows:
1. With the SIMM alignment notch oriented as shown in Figure B-3 , insert the SIMM down
between the connector teeth.
2. Pivot the SIMM downward so the connector clips align with the two side notches of the SIMM
and the connector clips lock the SIMM into place.

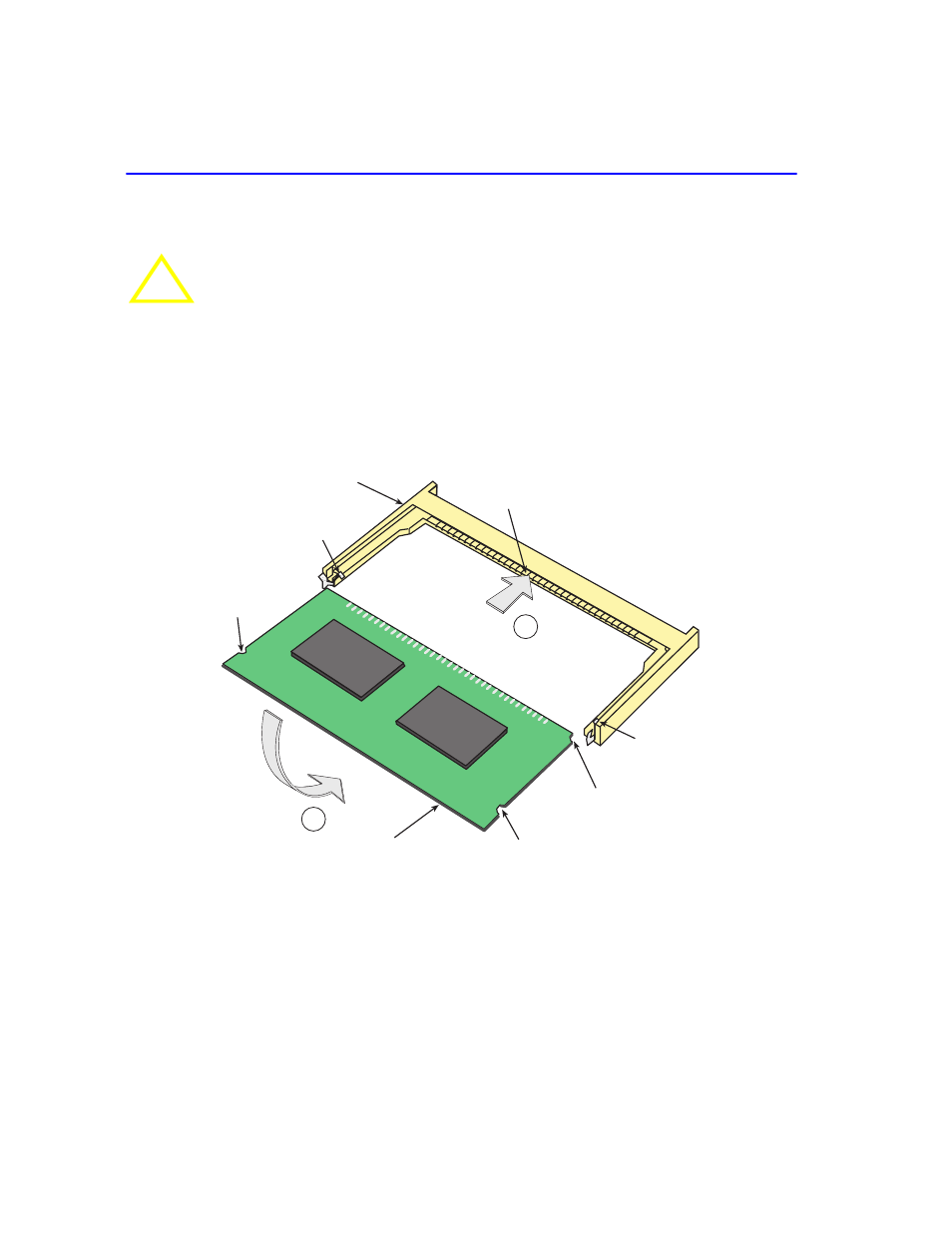

Figure B-3 Installing the DRAM
!
CAUTION
Observe all antistatic precautions when handling sensitive electronic equipment.
1
2
SIMM
Alignment Notch
Clip
Clip
Connector
Teeth
Side Notch
Side Notch
Connector
2504-91
