Char-Broil NATURAL GAS CONVERSION KIT 7116572 User Manual
Page 8

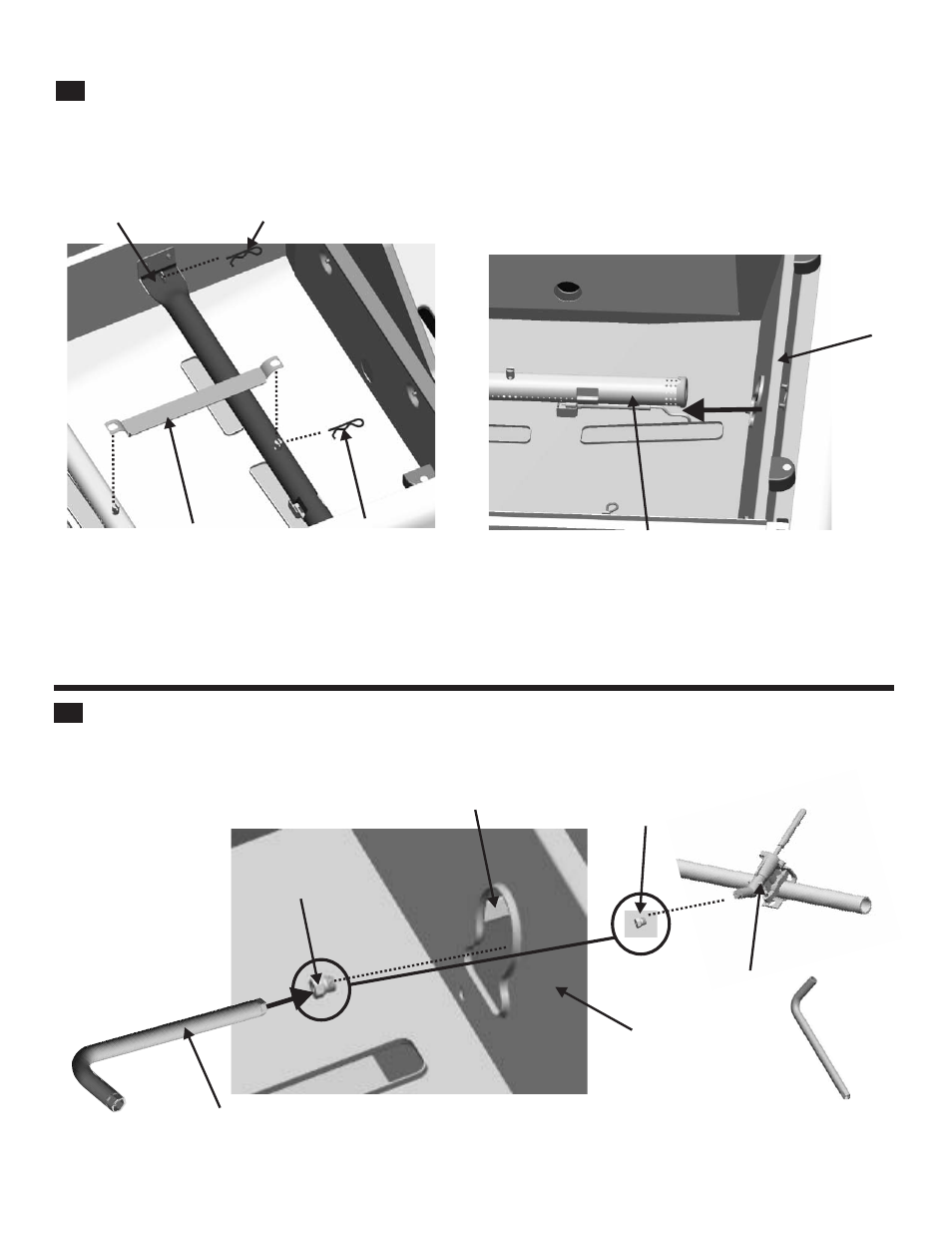

B1
Remove Hitch Pins and remove Carryover Tubes.
Remove Hitch Pins at back of Burners to detach Burners from Burner Brackets.
Lift back of Burner while sliding Burner out of Firebox, disengaging burners from Valves.
Front of
Firebox
Hitch Pin
Hitch Pin
Carryover Tube
Burner
Burner
B2
Insert Orifice Driving Tool into Firebox Burner openings and unscrew Orifices from ends of Valves. Save removed
orifices for converting back to LP Tank Gas. These grill valves are designed to work with Natural Gas once Orifices are removed
unless otherwise noted.
Valve
Orifice
Front of
Firebox
Orifice
Firebox Burner Opening
Orifice Driving Tool
Section B
Orifice Driving Tool
8
