Char-Broil NATURAL GAS CONVERSION KIT 7116572 User Manual
Page 11
Section C Con’t.
11

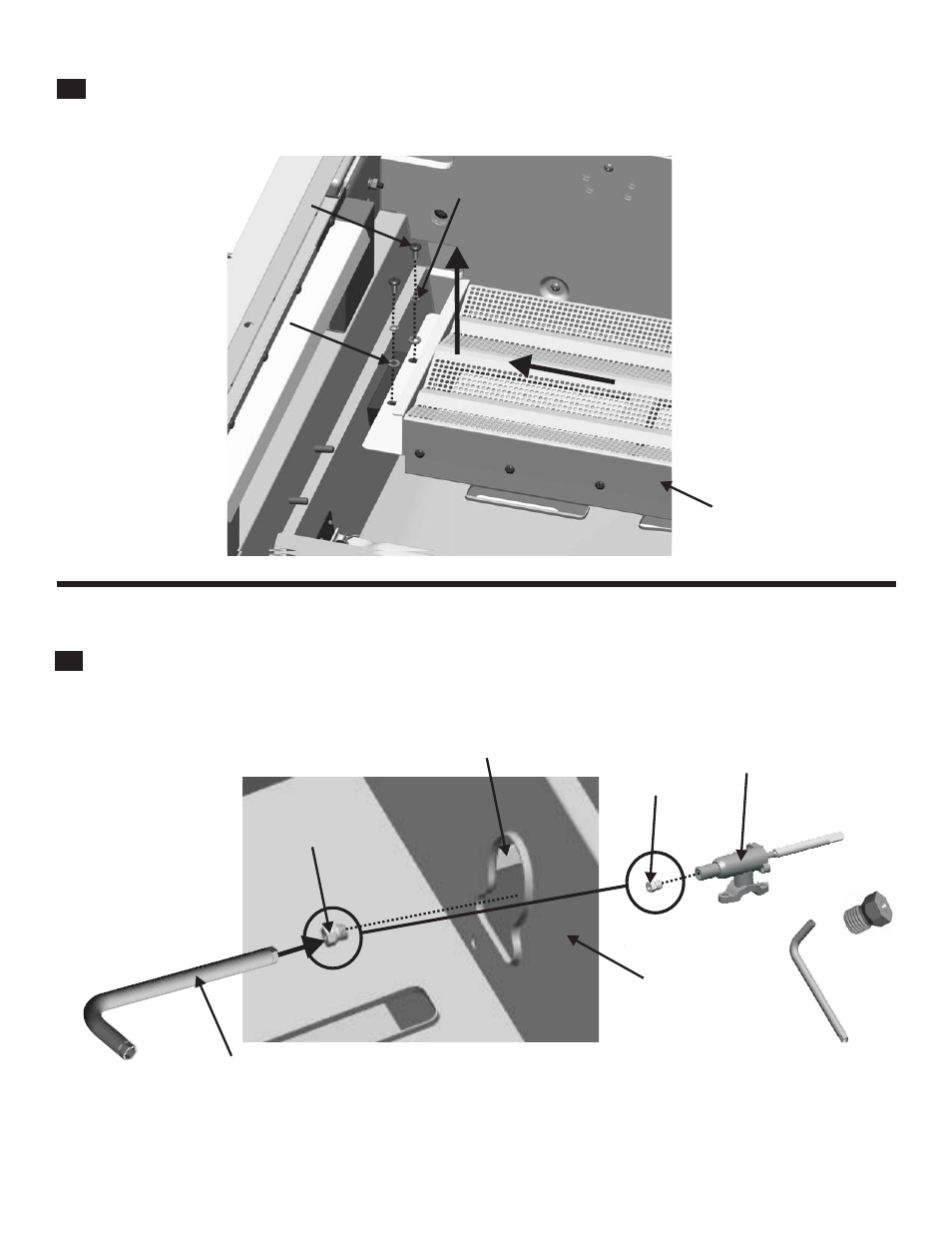

C3
Remove two Screws, two Lock Washers and two Flat Washers at the back of Searing Burner.
Slide Searing Burner back and up to remove Burner.
C4
Valve
Orifice
Front of
Firebox
Orifice
Firebox Burner Opening
Orifice Driving Tool
Orifice Driving Tool
Insert Orifice Driving Tool into Firebox Burner openings and unscrew Orifice from end of Valve. Save removed orifice for
converting back to LP Tank Gas. Do not mix with Orifices removed from Main Burners.
Replace with Natural Gas Orifice 1.65 (Green Dot) and secure tightly to Valve.
1.65mm
Green Dot
Searing Burner
Flat Washer
Screw
Lock Washer
