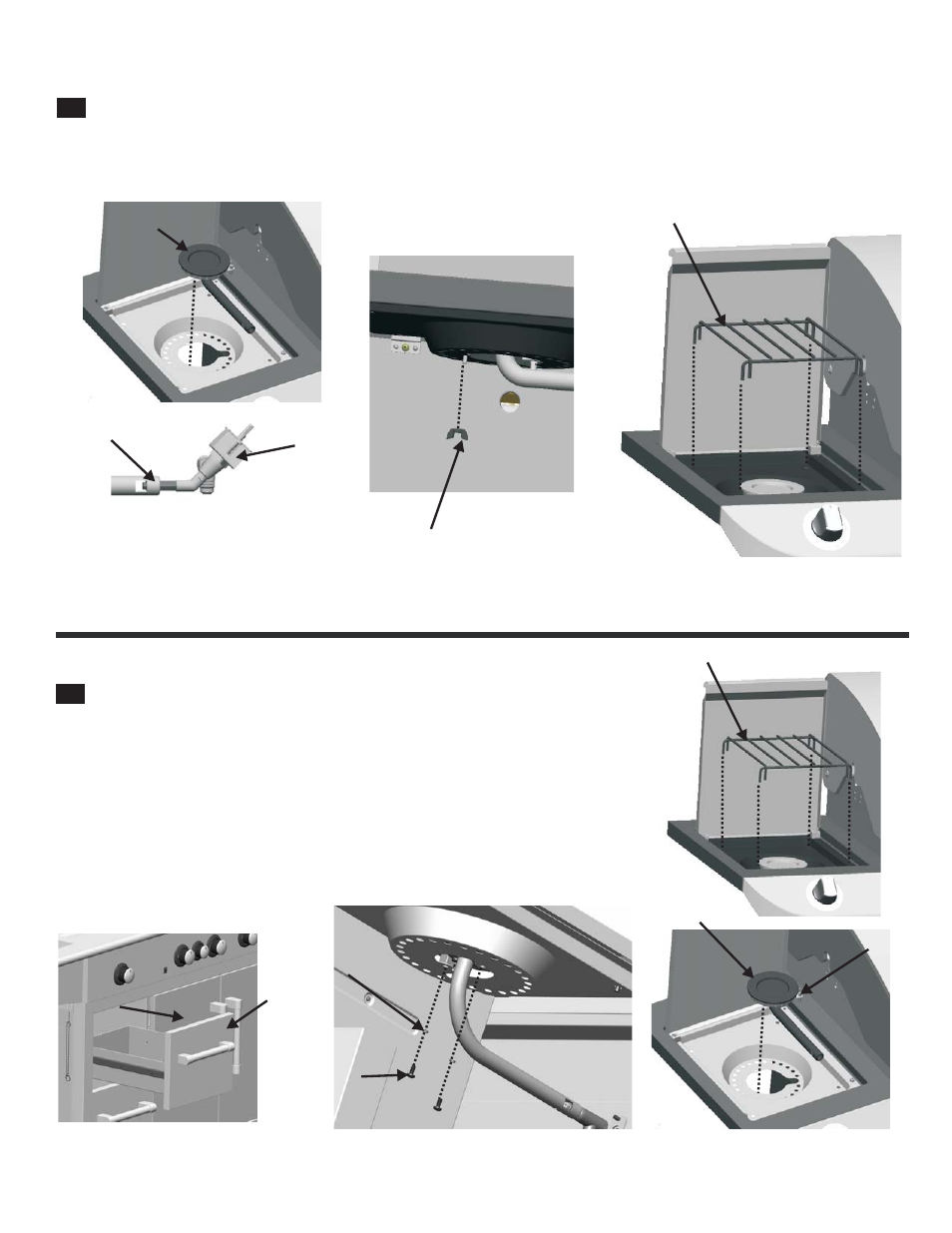

Return Sideburner to Shelf. Make sure Burner engages Sideburner Valve. See illustration below for correct burner-to-valve
engagement.
Secure Burner to Shelf with Wingnut.
Place Sideburner Grate onto Sideburner Pan.
F4
Valve
Sideburner
Wingnut
Sideburner Grate
Sideburner
CORRECT BURNER-TO-VALVE
ENGAGEMENT
Section F Con’t.
20
Reinstall Heat Diffusers, Cooking Grates and Warming Rack, reference illustration Section A1. for reinstallation.
Sideburner Grate
Sideburner
Open Sideburner Lid and remove the Sideburner Grate.
Open Top Drawer below Sideburner. DO NOT REMOVE DRAWER.
Disconnect Ignitor Wire from Electrode.
From beneath Sideburner Shelf, remove two Washers and two Screws.
Remove Sideburner from Shelf.
G1
Section G
Washers
Screws
Top Shelf
Electrode
