Char-Broil NATURAL GAS CONVERSION KIT 7116572 User Manual
Page 6
A1
First, make sure all Control Knobs are in the OFF position, LP tank valve is closed, and Tank is disconnected from Regulator and
removed from Grill.

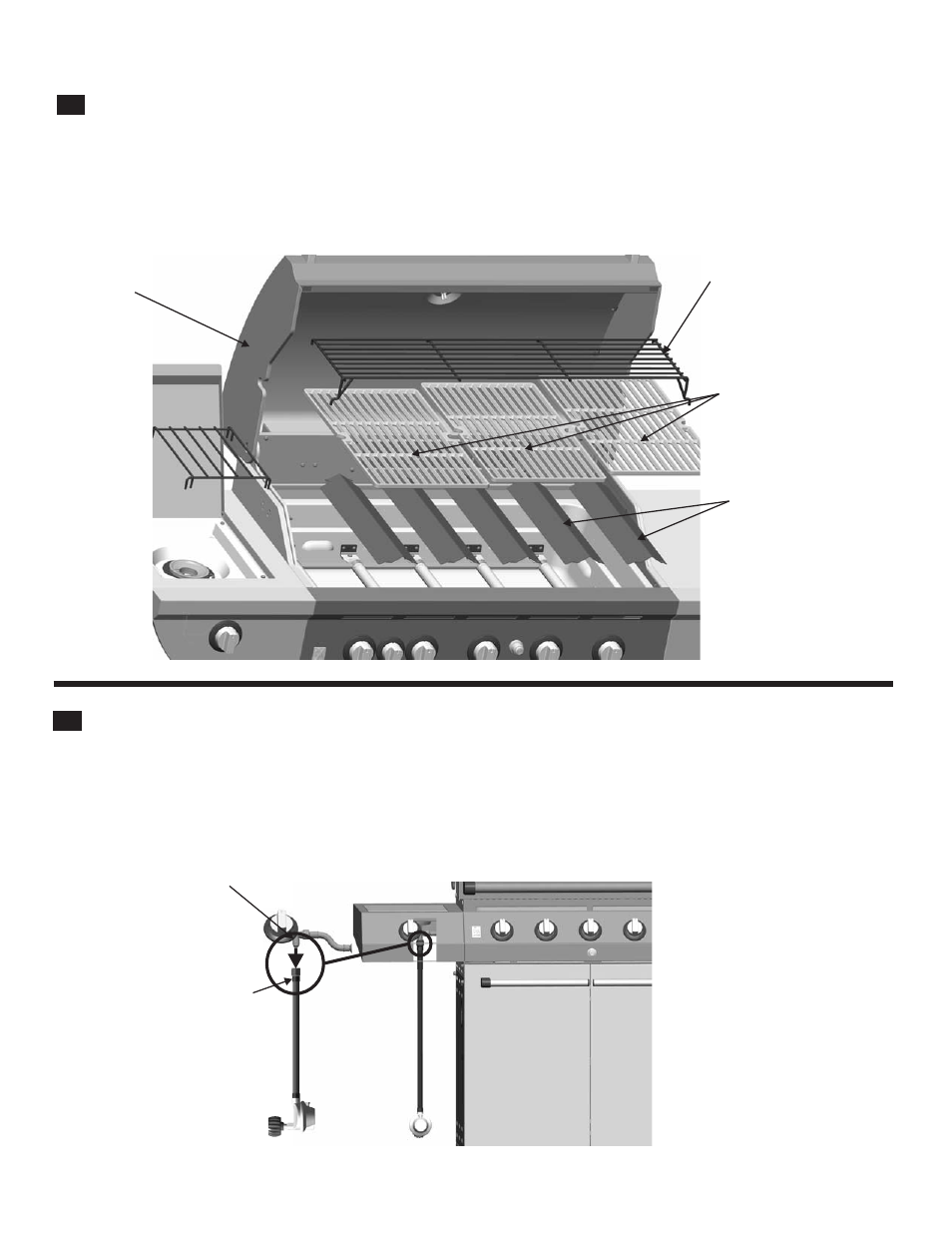

Next, open Lid and remove Warming Rack, Cooking Grates, and Heat Diffusers.
Your Grill may differ from illustrations shown. This manual covers a variety of grills styles, use pictures as reference only.
Warming Rack
Cooking Grates
(2 or 3 depending on Unit purchased)
Heat Diffusers
Lid
Section A
A2
Using a wrench (not provided) remove LP Regulator Hose Assembly from Manifold Connection. Save removed LP Regulator Hose
assembly for converting back to LP Tank Gas. Your LP Regulator hose will be located under the Sideburner Shelf.
6
LP Regulator
Hose Assembly
Manifold
Connection
6
