D3

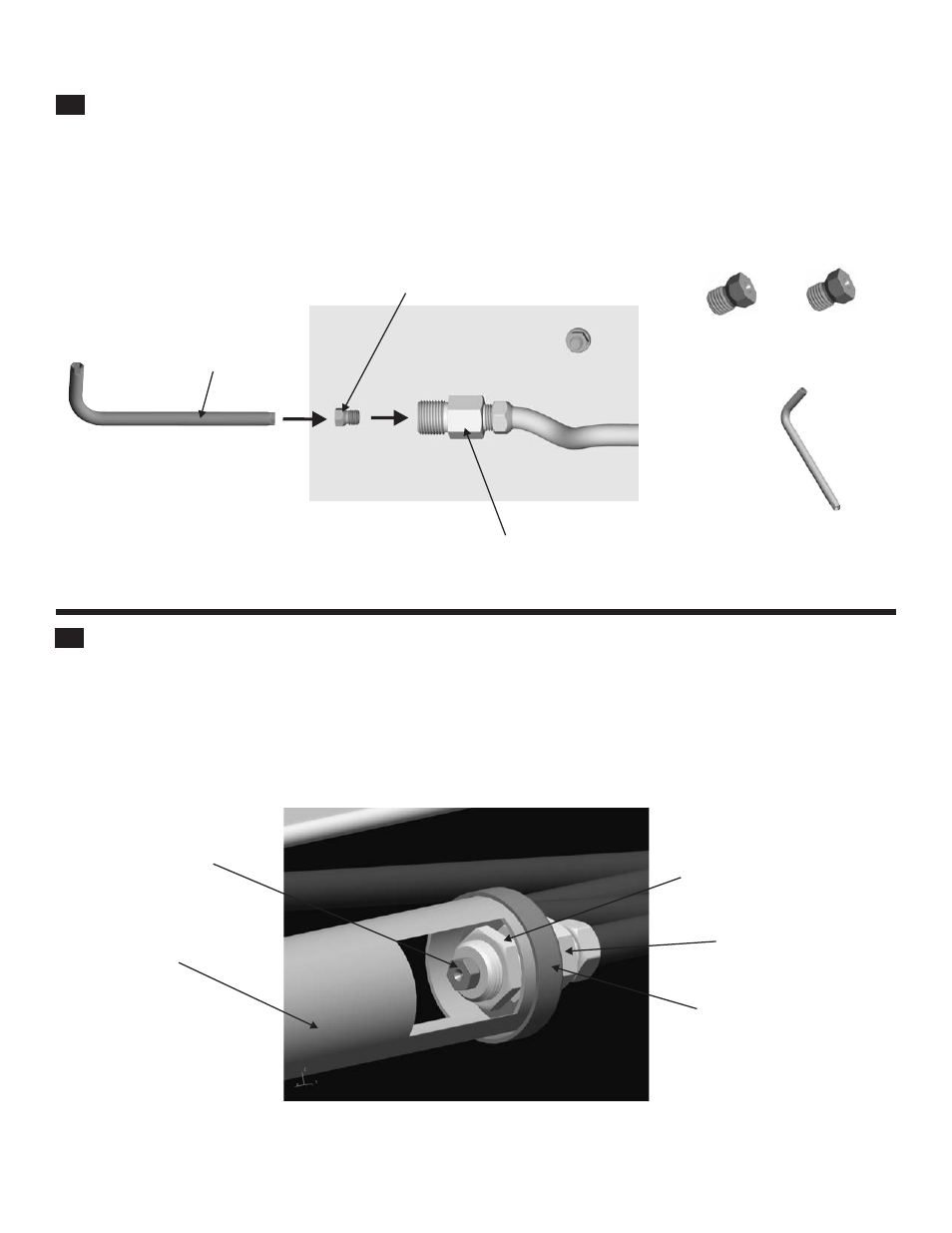

Using Orifice Driving Tool provided with Kit, unscrew Orifice from Rotisserie Connector. Save Orifice for converting back to LP Tank
Gas. Do not mix with Orifices removed from Main Burners.

For Grill Model 415.16649011 replace with Natural Gas Orifice 1.45mm (Red Dot) and secure tightly to Rotisserie Connector.

For Grill Model 415.16139110 replace with Natural Gas Orifice #53 (Yellow Dot) and secure tightly to Rotisserie Connector.

Orifice Driving Tool

Rotisserie Connector

Orifice

D4

6

Reinstall Rotisserie Burner

Insert Rotisserie Connector through end of Rotisserie Burner Tube and tighten flush against Burner Tube End Cap using previously
removed Securing Nut. Rotisserie Connector with Orifice should engage in Rotisserie Burner Tube. Reference illustration Below.

Replace Rotisserie Cover. Reference illustration D1.

Rotisserie

Burner Tube

Securing

Nut

Orifice

Burner Tube

End Cap

Rotisserie

Connector

Section D Con’t.

Orifice
1.45mm
Red Dot

Orifice
#53
Yellow Dot

Orifice Driving Tool

14
