2 xL LCD Keypad User's Guide 21-3600E rev1.3
1
,
- # 2 ABC 3 DEF
4 5 JKL 6 MNO GHI
7 8 TUV 9 WXY PRS
0 Z_Q
X
X

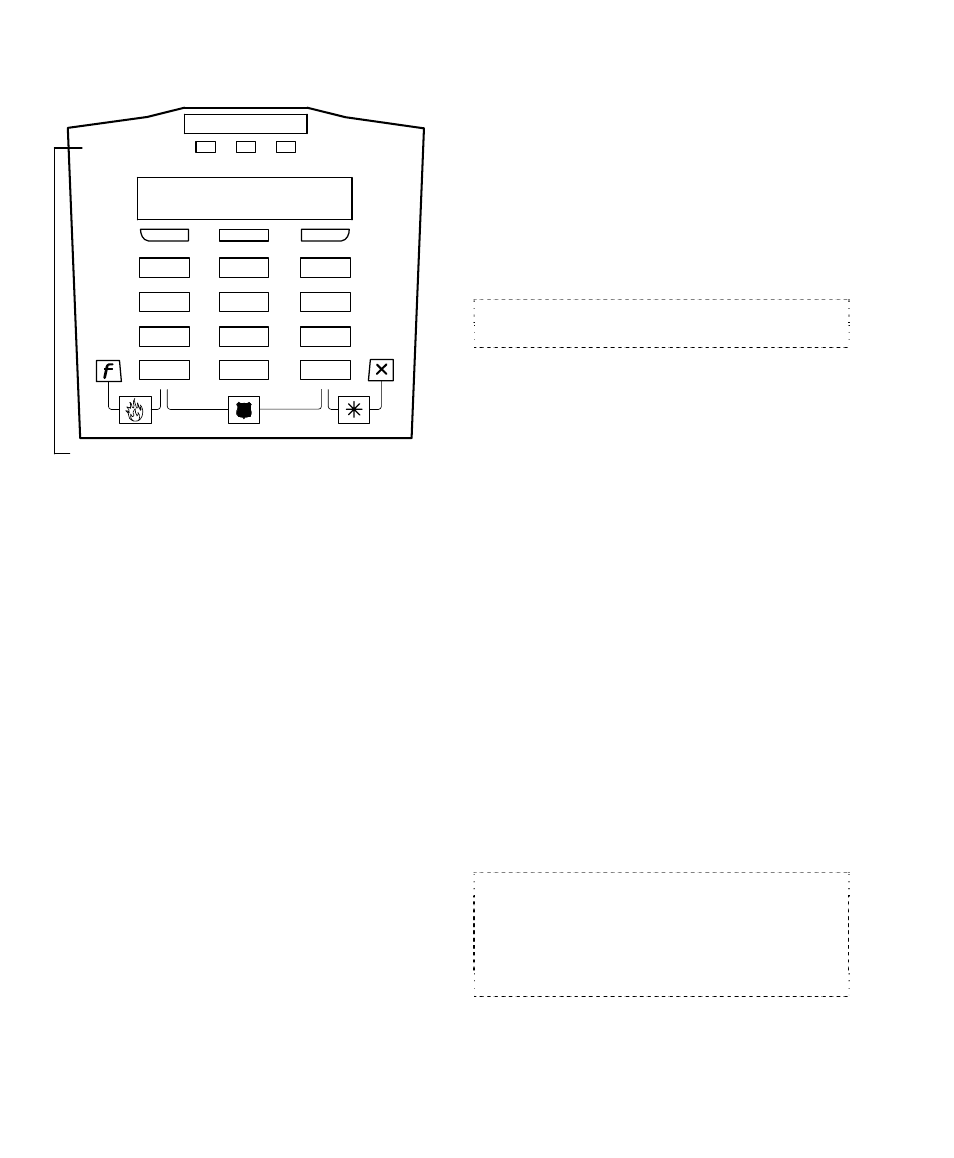

Keypad Lights
Red Flashing:
Protection ON
Solid: Partial
protection
(STAY) Green On
Always with
power
present.
Red Green Yellow
WELCOME
Enter ID:
Yellow On when
trouble condition
present. Flashing
when there is no
AC mains.
The xL LCD (liquid crystal display) keypad
provides an integrated 2-line display and multi-
function backlit keypad. (The keypad is hidden
behind a hinged access cover.)
What You can do with the
LCD Keypad
xL LCD keypads provide a convenient local
interface that allows:
• Turning protection on and off;
• Checking status of items;
• Controlling / commanding items;
• Performing administrative tasks;
• Some models can act as a card reader to
permit access to locked doors.
Keypad Display and Buttons
The display is your 'window' into the xL
system.
When you enter your user ID and/or PIN, you
will be given access to all menus and features
as assigned through your user authorities.
Buttons under the Display Screen
The buttons directly under the display screen
allow selecting associated items on the display
screen. This means the item displayed on the
screen above each button.
Like the rest of the keypad, these buttons are backlit
for use in poor lighting conditions.
The Numeric Keypad
The main keypad (in the bottom-left portion of
the unit) provides a convenient way to enter
numbers, and letters as well (when applicable).
The Key
This is the "escape" key, which allows you to
return to a previous screen, or exit from a
menu altogether (log out).
The ◄ arrow ► Keys on the Keypad
These keys allow selecting different items and
topics. When available, the left ◄ or right ►
arrow keys will appear on-screen.
Emergency Keys and Programmed
Function Keys
Pressing a number and the ƒ key at the same
time will perform the action as programmed for
that key-sequence. The emergency keys at
the bottom of the keypad each transmit a
specific emergency message (to the central
monitoring station).
For more information on the emergency keys, refer
to "Using the Emergency Keys" in the "Alarms…"
chapter.
For details on the programmable function keys, refer
to "Using the Function Keys" in the "Status &
Control" chapter.
The xL LCD Keypad
