ATP1000 Touchpad/Display Installation
Instructions
Product summary
The ATP1000 lets you control all programming and operation
of compatible security systems (see the “Specifications”
section).
The large 2-line, 16-character display provides easy to read
messages to indicate the current status of the system. The
touchpad includes police, fire, and auxiliary panic buttons that
can be activated anytime. A built-in speaker provides alarm,
status, and button-press sounds. A swing-down door reveals a
label with basic system operating commands. The door can be
removed by simply opening it past its stop point. The door can
also be reattached later if desired.
Tools and equipment needed
•
4-conductor, 22- or 18-gauge wire
•
Screwdriver
•
#6 screws and anchors (included)
•
Panhead screws for gang box installation
•
Saw or utility knife for cutting wallboard
Installation
Installation guidelines
•
Mount the touchpad in an environmentally controlled area
(32°F to 120°F/0°C to 49°C).
•
When mounting the touchpad, allow at least 3 inches
below it for the swing-down cover.
•
Do not exceed the maximum available power. See the
panel installation instructions for maximum available
power.
•
Table 1
describes the power used by the touchpad.
•
Table 2
describes the maximum wire lengths allowed
between the touchpad and the panel.
Table 1. Touchpad power usage
Current (mA)
Conditions
110
Maximum alarm current with the buzzer sounding
and the touchpad illuminated from a button press
60
Typical operation
12
Power saving mode (no panel AC power)
Table 2. Maximum touchpad wire lengths
Wire Gauge (Unshielded
or Shielded)
Max. Touchpad Wire Length
Between Touchpad and Panel
18
750 feet
22
300 feet
Installing the Mounting Plate
1. Separate the mounting plate from the touchpad by first
loosening the screw, then lift the touchpad away from the
mounting plate (see
Figure 1
).

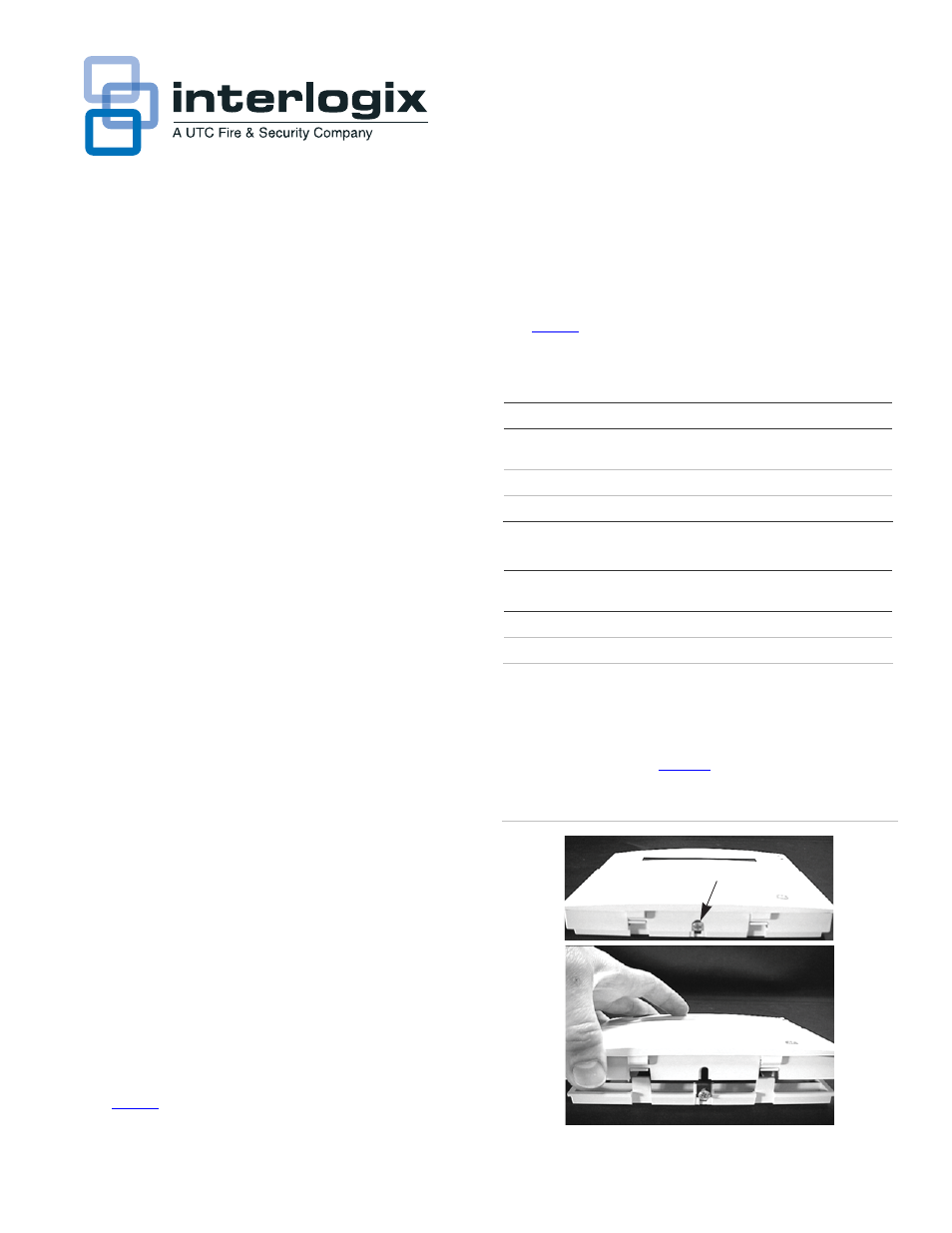

Figure 1. Separating touchpad from mounting plate
Loosen screw,
then lift touchpad.
P/N 466-2100 • REV I • January 2011
1
