2BChapter 3: Camera configuration
TruVision IP PTZ Camera Configuration Manual 35

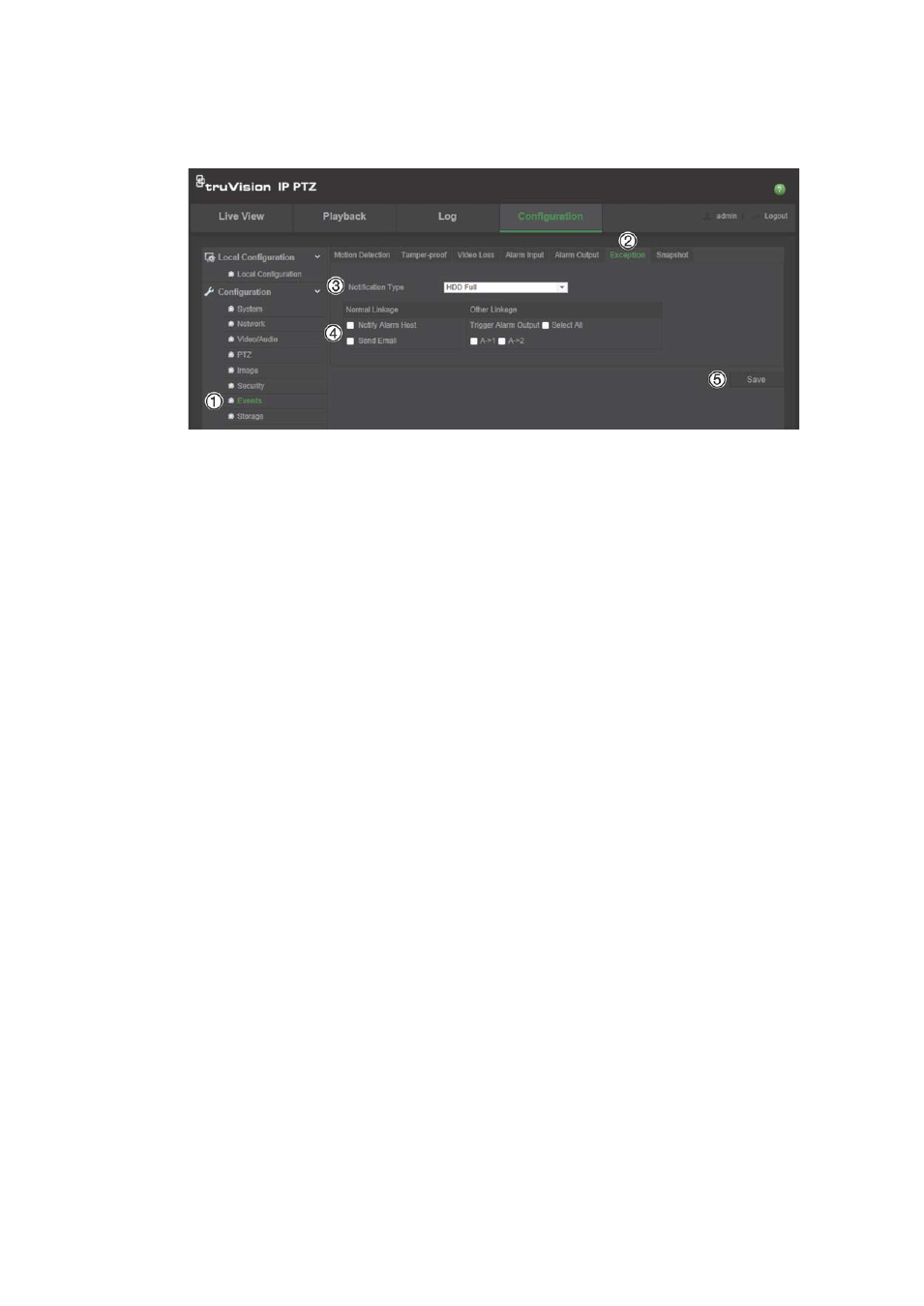

To define exception alarms:
1. In the Events folder (1), click the Exception tab (2) to open its window.
2. Under Notification Type (3), select one of the exception alarms from the
drop-down list.
3. Check the checkbox to select the linkage method (4): Notify alarm host, send
email, or trigger alarm output. If “Trigger alarm output” is selected, check
which type is required: Select all, A->1, or A>2.
4. Repeat steps 2 and 3 for each of the exception alarms to be configured.
5. Click Save (5) to save changes.
Alarm inputs and outputs
To define an external alarm input:
1. In the Events folder (1), click the Alarm Input tab (2) to open its window.
