Interlogix TruVision 360° Configuration Manual - Manual (Page 33)

TruVision 360° Camera Configuration Manual 31
as 5 seconds, the camera records until 11:00:05. The post-record time can be
configured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min.
To set up a recording schedule:
1. Click Configuration > Storage > Record Schedule .
2. Click the Enable Record Schedule box to enable recording.
Note: To disable recording, deselect the option.

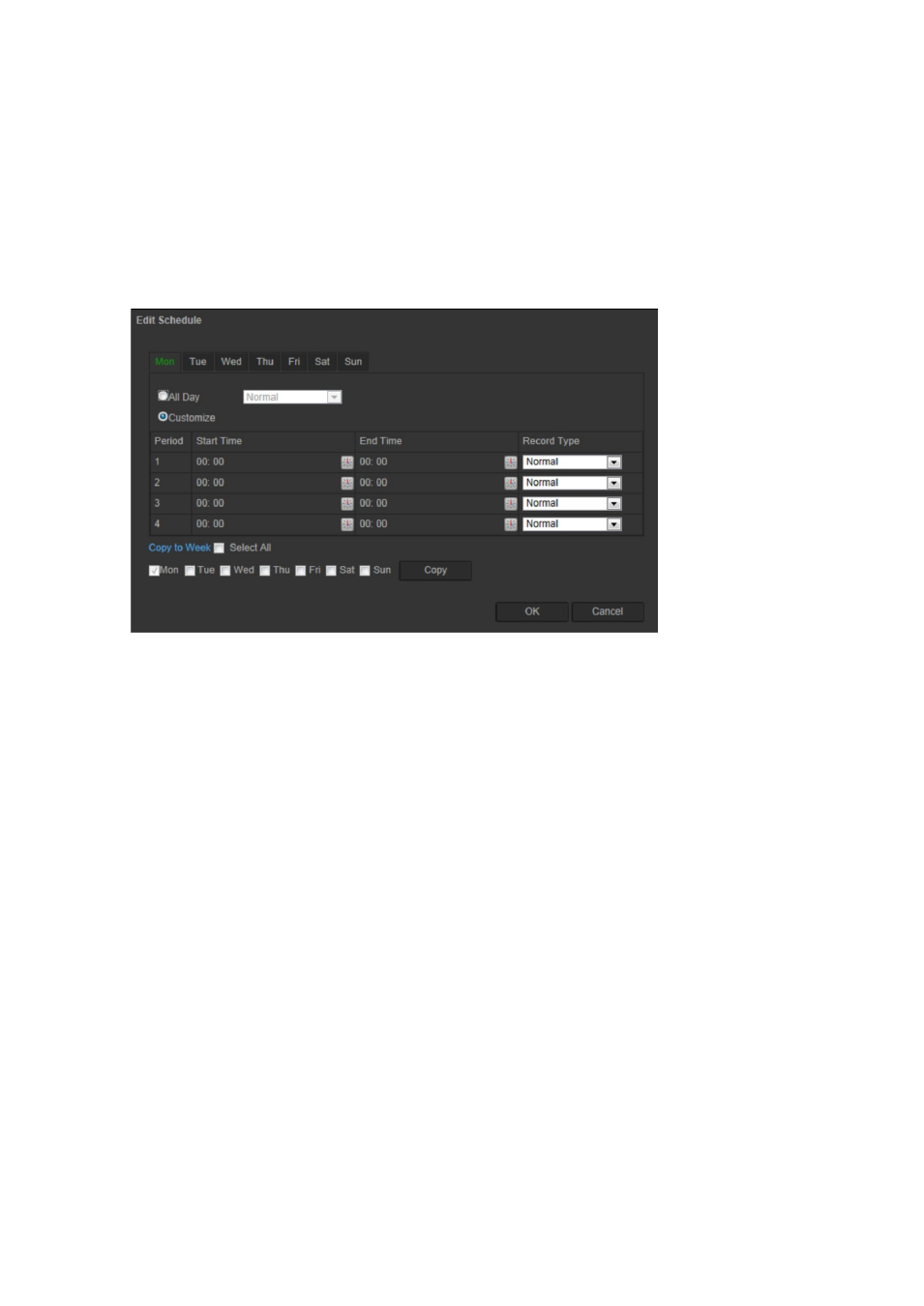

3. Click Edit to edit the recording schedule. The following window appears:
4. Select whether the recording will be for the whole week ( All Day recording) or for
specific days of the week.
If you have selected “All day”, select one of the record types to record from the drop-
down list box:
• Normal: This is continuous recording.
• Motion detection: The video is recorded when the motion is detected.
• Alarm: The video is recorded when the alarm is triggered via the external alarm
input.
• Motion | Alarm: The video is recorded when the external alarm is triggered or
the motion is detected.
• Motion & Alarm: The video is recorded when motion and alarms are triggered
at the same time.
5. If you selected “Customize”, click the day of the week required and then for period 1
set the start and end times during which you want the camera to begin and end
recording.
From the drop-down list box, select one of the record types to record.
Repeat for additional periods in the day. Up to eight time periods can be selected.
Note: The eight time periods cannot overlap.
6. Set the recording periods for the other days of the week if required.
