Lithium Battery Disposal
3. Remove the transmitter circuit board and place it inside
the cover (see Figure 11).

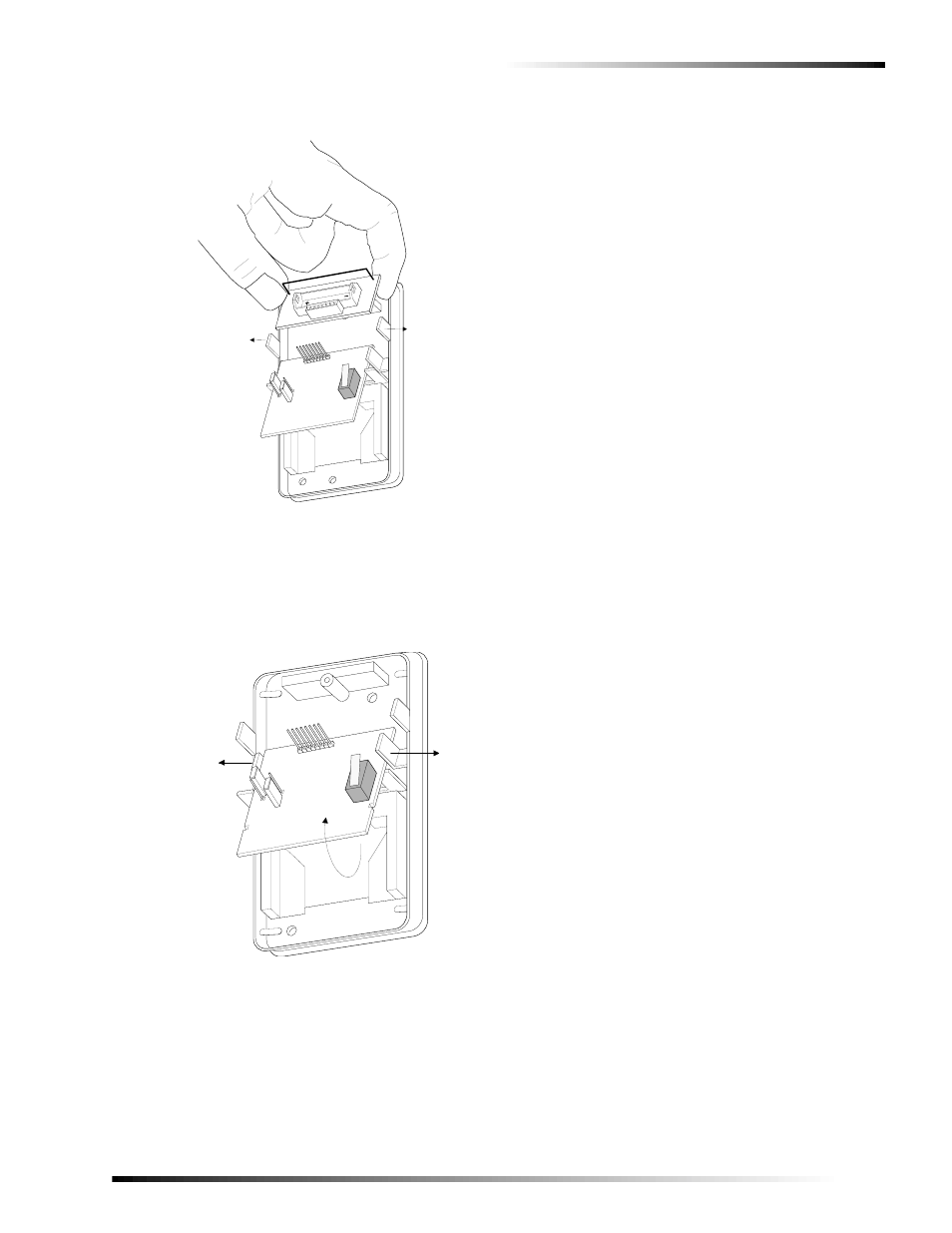

Figure 11.Removing the Transmitter Circuit Board
4. Carefully remove the PIR (lower) circuit board by
pressing outward on either side tab, then pull up on the
circuit board (see Figure 12).
1RWH
Avoid touching the mirror. Fingerprints may affect
detection coverage.
Figure 12.Removing the PIR Circuit Board
5. Remove the PIR circuit board battery (located on oppo-
site side of components) and install a new one, observ-
ing polarity (marked on the circuit board).
6. Re-install the PIR circuit board into the sensor plastic.
7. Re-install the transmitter circuit board onto the PIR cir-
cuit board.
8. Install a new battery in the transmitter circuit board,
observing polarity (marked in battery bucket).
After replacing batteries, wait at least 3 minutes before acti-
vating the walk test mode.
Lithium Battery Disposal
Lithium batteries that are no longer usable are considered
hazardous waste. Be sure to properly dispose of the old bat-
teries. Contact your local city government for hazardous
waste disposal laws.
Troubleshooting
Use the following guidelines if the system does not respond
correctly when the sensor is activated.
‰ Check programming and re-program sensor into panel
if necessary.
‰ Move the sensor to another location and test for correct
response.
‰ Test a known good sensor at the same location.
‰ If the system does not respond, avoid mounting a sen-
sor at that location.
‰ If the replacement sensor functions, return the problem
sensor for repair or replacement.
