Mounting the Sensor
‰ For installations where pets are present, mount the sen-
sor upside down about 3.5 feet above the floor (see Fig-
ure 3). Leave the factory-installed undercrawl mask in
place to block any detection pattern directed at the ceil-
ing.

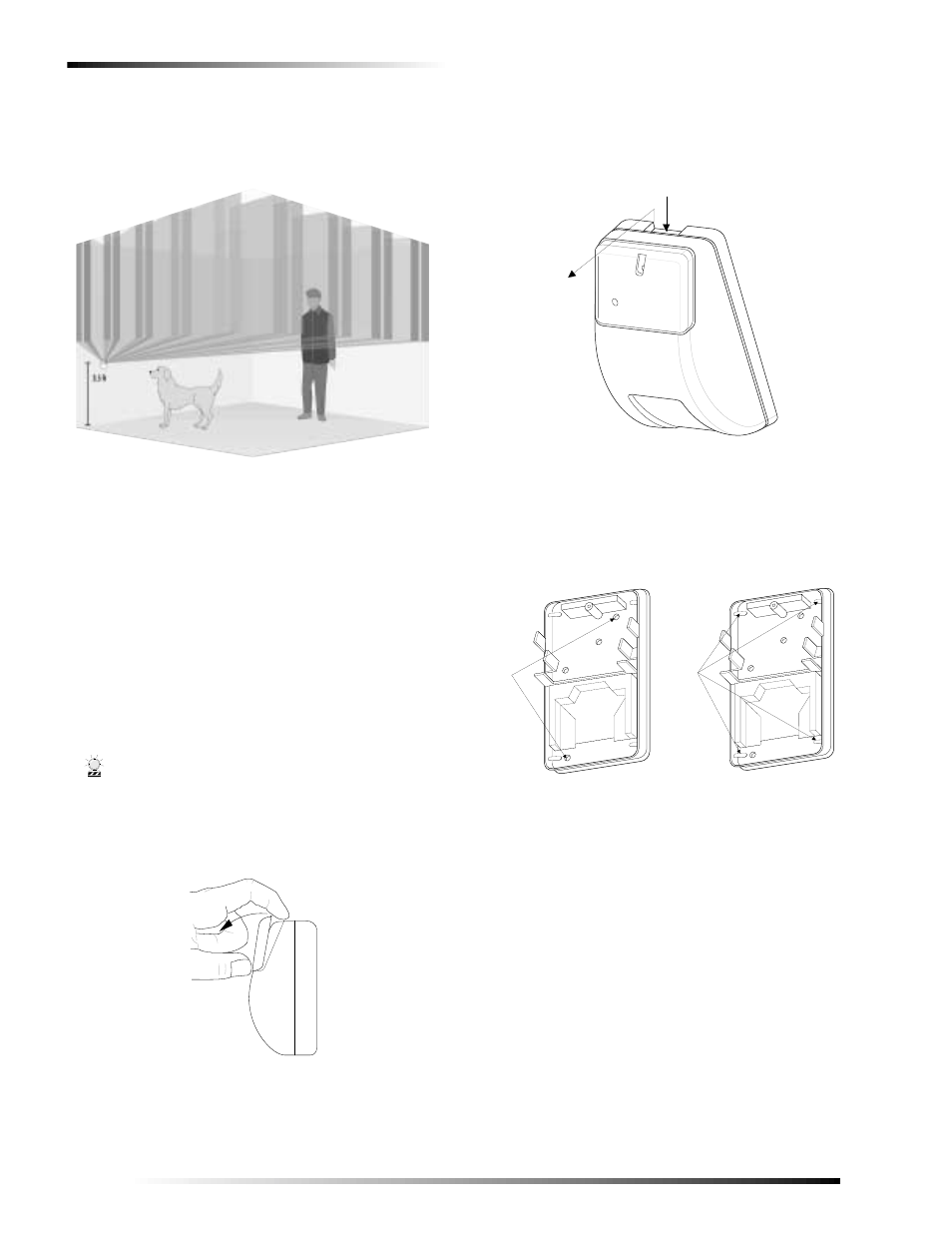

Figure 3. Pet Alley Application
Tools and Supplies Needed
‰ Phillips screwdriver
‰ Anchors and screws for mounting (included)
‰ Masks (included)
Mounting the Sensor
This section describes how to mount the sensor on a flat
wall or in a corner.
1RWH
Remove the factory-installed plastic masks before
mounting. Re-install as desired after walk testing.
&$87,21
You must be free of all static electricity before handling
sensor circuit boards. Touch a grounded, bare metal
surface before touching circuit boards or wear a
grounding strap.
1. Remove the small cover (see Figure 4).
Figure 4. Removing the Small Cover
2. Open the sensor housing by pressing down on the top
rear and pulling the front cover at the top (see Figure
5). Set the front cover aside.
Figure 5. Opening the Sensor Housing
3. Mount the sensor on a flat wall or in a corner, using the
appropriate mounting holes (see Figure 6). Use wall
anchors and screws to secure the sensor.
1RWH
Avoid touching the mirror. Fingerprints may affect
detection coverage.
Figure 6. Mounting Hole Locations
S T E P 1 :
P R E S S D O W N
W I T H I N D E X F I N G E R
S T E P 2 :
P U L L A W A Y
C O R N E R
M O U N T I N G
H O L E S
( 4 )
F L A T
M O U N T I N G
H O L E S
( 2 )
M I R R O R M I R R O R
