2 ShatterPoint Glassbreak Sensor

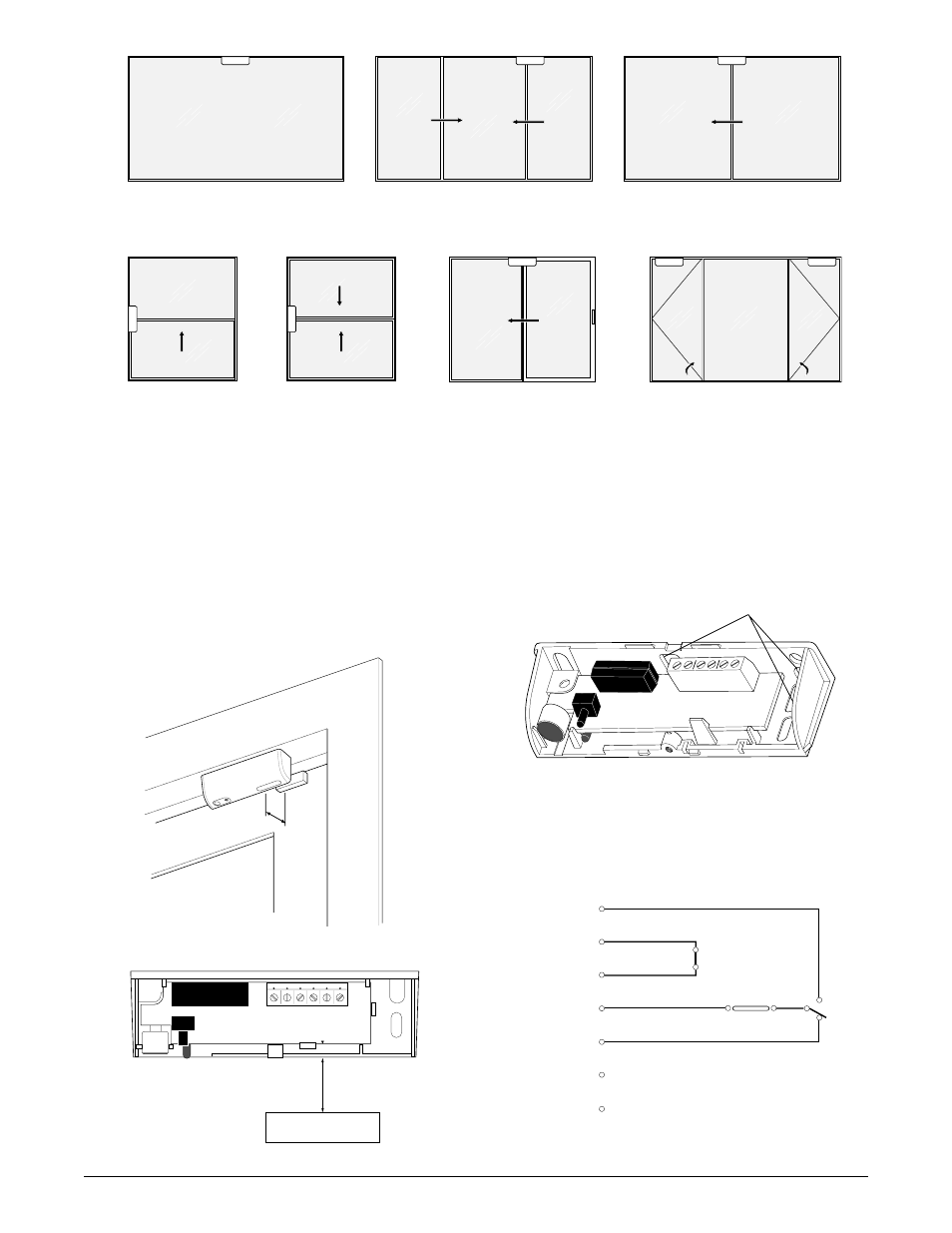

Figure 7. Output Circuit (shown powered)
Reed Switch Models
Models 5620 and 5625 require the magnet be mounted on
the moving portion of the window or door. Magnet
placement must be within 3/4" (19mm) of sensor, either
behind or below (see Figure 4). Center magnet as marked
on the printed circuit board (see Figure 5).
Note Mounting sensor or magnet on steel surfaces will
reduce gap.
Picture Window Double Slider Horizontal Slider
Figure 3. Mounting Locations
The 5600 sensor provides multiple wiring entrances (see
Figure 6). Use rear holes or knock-out as needed. It is
recommended to tape over unused holes.
Wire Entrances
Wiring
Figure 6. Wire Entrances
CENTER MAGNET HERE
3/4" (19mm)
MAGNET
Figure 5. Centering the Magnet
3/4"
(19mm)
Figure 4. Magnet Placement
Vertical Slide Double Hung Patio Door Hinged Casement
N.O.
TAMP
TAMP
COM
N.C.
-GND
+12 V
REED (5620 Series only)
