Operation information
The relay contacts will open and the LED will turn on (if
enabled) every time an alarm occurs. The unit should be
allowed to settle for at least one minute after power-up before
walk testing. When walk testing, walk across the curtains, not
directly toward or away from the unit.
4
AP450 Motion Sensors Installation Instructions
Maintaining the sensor
When installed and used properly, the unit provides years of
service with minimum maintenance. To ensure proper
operation, you should walk test the unit annually.
Clean the inside of the unit with a soft bristled brush or
compressed air. Clean the outside with a damp (water) cloth as
needed to keep it free of dust and dirt. Always test the unit
after cleaning.

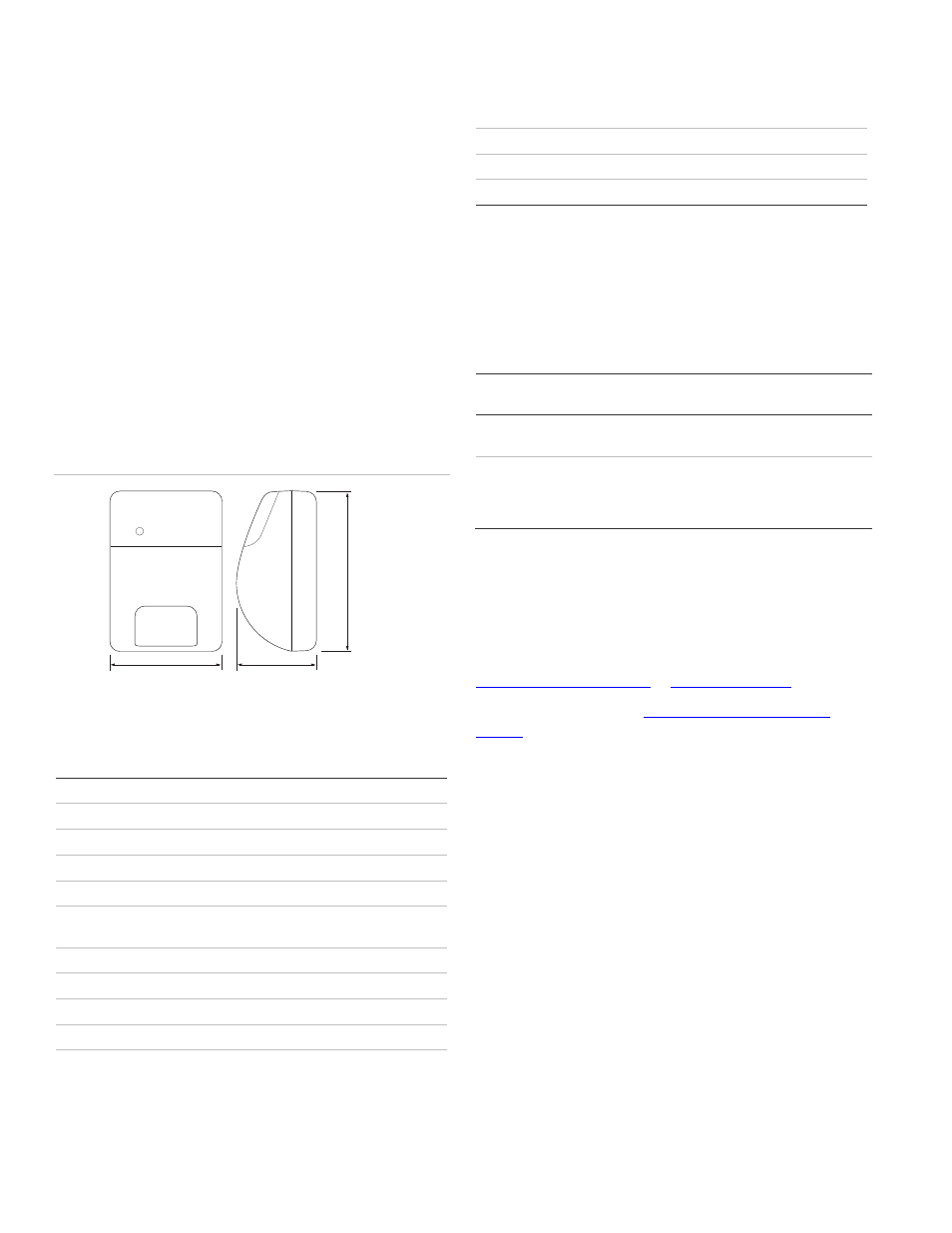

Figure 9: Dimensions
2.8"
71mm
2.0"
51mm
4.0"
102mm
Specifications
Input voltage
9 to 15VDC (12V nom.)
Peak to peak ripple
2V max at 12VDC
Current consumption
15mA max.
Mounting height
6' to 10' (1.8m to 3m)
Target speed range
0.7' to 13.0' (0.2m to 4.0m)/sec.
Relay rating w/10
ohms in series
50mA at 28VDC
Alarm time
2.5 sec. min.
Tamper switch rating
100mA at 28VDC
Operating temperature
0° to 131° F (-18° to 55° C)
Relative humidity
93% max. non-condensing
Weight
4.25 ounce (120 g)
Dimensions:
Width
Depth
Height
2.8" (71mm)
2.0" (51mm)
4.0" (102mm)
Number of curtains
9
View angle
89°
Detection range
50' (15.2m) max.
Regulatory information
Listings C-UL
US
Ordering information
Model #
Loop type
Electrical
configuration
Comments
AP450A Closed Normally
Closed
Form A
AP450
Open or Closed Normally
Closed or
Normally Open
(SPDT)
Form C
w/tamper
The unit shall be connected to a UL Listed power supply or control unit
capable of providing a minimum of 4 hours standby power. The
equipment shall be installed in accordance with NFPA 70. The unit
shall be tested at least once a year.
Contact information
For customer support, see
Copyright © 2011 UTC Fire & Security. All rights reserved.
