EPIM Specifications
A-2
EPIM-F1 and EPIM-F2
The EPIM-F1 and EPIM-F2 support Multimode Fiber Optic cabling. Each EPIM
has an internal Cabletron Systems FOT-F™ Fiber Optic Transceiver. The EPIM-F1
is equipped with SMA Connectors and the EPIM-F2 is equipped with ST
Connectors. Figure A-2 shows both EPIMs. Specifications for the EPIMs are listed
in Table A-1.

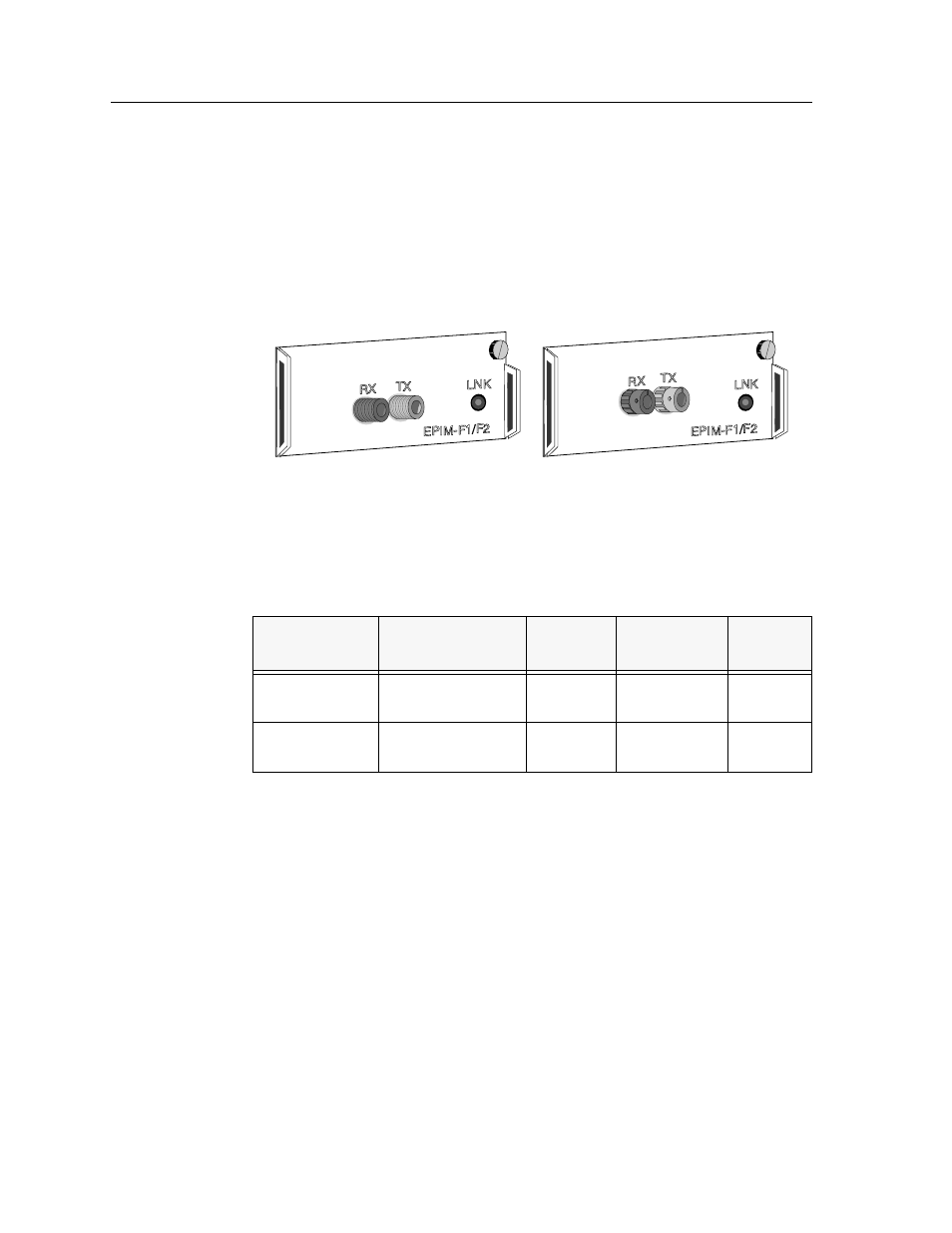

Figure A-2. EPIM-F1 and EPIM-F2
Transmitter power parameters are listed Table A-2.
Table A-1. EPIM-F1 & EPIM-F2 Specifications
Parameter Typical Value
Worst
Case
Worst Case
Budget
Typical
Budget
Receive
Sensitivity -30.5 dBm -28.0 dBm — —
Peak Input
Power -7.6 dBm -8.2 dBm — —
