This capability is ideal for use as an Ethernet extender for your
existing Ethernet network.
The MCR200-1T/1CX Converter provides a cost-effective and
efficient analog migration to Long Reach Ethernet (LRE)
networks.
The cable specifications of the connection are listed as
follows:
• 10Base-T, Category 3, 4 or 5 UTP
• 100Base-TX, Category 5, 5e or 6 UTP
• Ethernet over VDSL2, Coaxial cable (50 or 75 ohm)

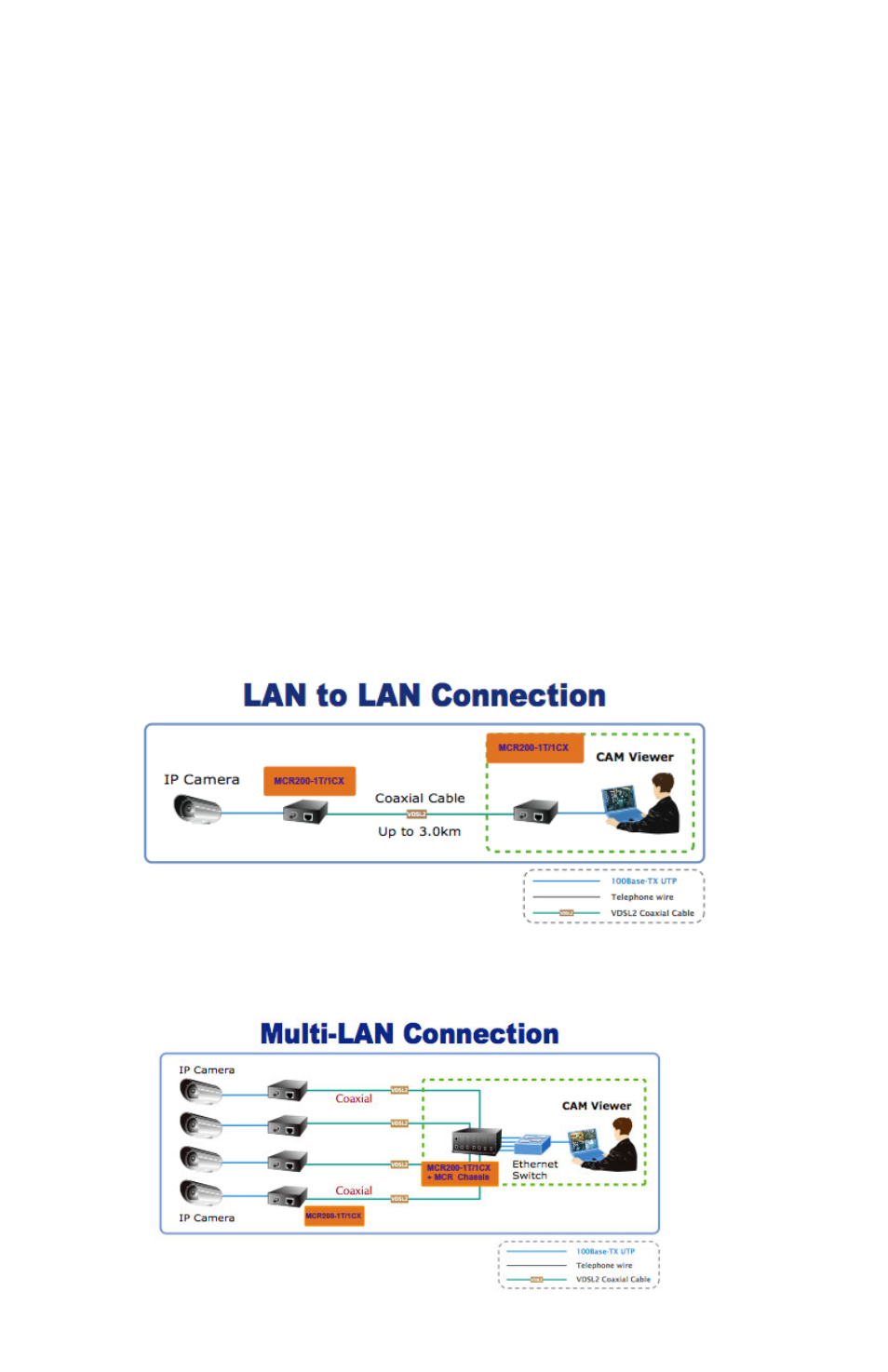

The following illustrations are typical application diagrams for
the MCR200-1T/1CX.
Note:
A Slave device (CPE) must connect to a Master device
(CO) through 50 or 75 ohm coaxial cable. It does not allow
such connections from Master to Master or Slave to Slave.
