IFS MCR200-1T/1CX User Manual 11
2. Turn the power on the MCR200-1T/1CX by connecting its
power source.
3. The power LED will illuminate.
4. Connect the coaxial cable from another MCR200-1T/1CX
to the BNC port of the MCR200-1T/1CX.
5. The LNK LED will illuminate.
6. Connect the Ethernet port to an Ethernet Switch (or
Broadband Router) via regular Cat. 5, 5e, or 6 cables.

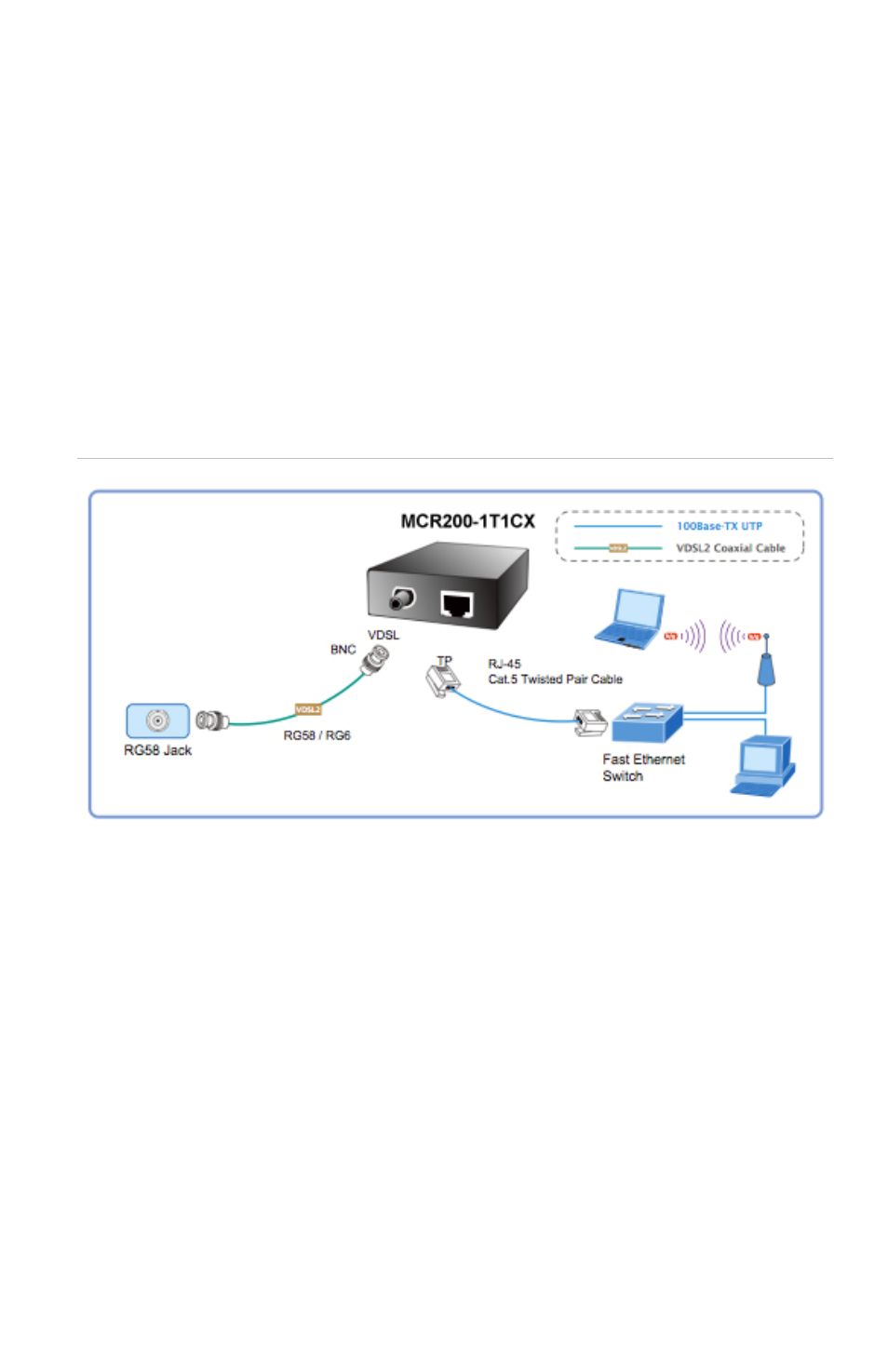

Figure 5: Connecting Multiple PCs to an Ethernet LAN
Note: Please refer to your Ethernet device User’s Manual for
the device’s set up information.
Chassis Installation and Rack Mounting
To install the MCR200-1T/1CX into the MCR-R15 media
converter rack, follow the instructions described below.
1. Place your MCR200-1T/1CX on a hard flat surface, with
the front panel facing you.
2. Carefully slide in the module until it is fully and firmly fitted
into the slot of the MCR-R15 chassis.
