4 IFS MCR200-1T/1CX User Manual

Hardware Description

MCR200-1T/1CX

The MCR200-1T/1CX provides 1 BNC connector and supports
50 or 75 ohm cable with distances of up to 3.0km.

The MCR200-1T/1CX provides 1 RJ-45 port. It will distinguish
the speed of the incoming connection automatically.

This section describes the hardware features of the MCR200-
1T/1CX. Front panel illustrations in this chapter describe the
unit LED indicators. Before connecting any network device, we
recommend you read this chapter carefully.

Front Panel

The front panel of the MCR200-1T/1CX provides LEDs for
interface monitoring as shown in Figure 1 and following table.

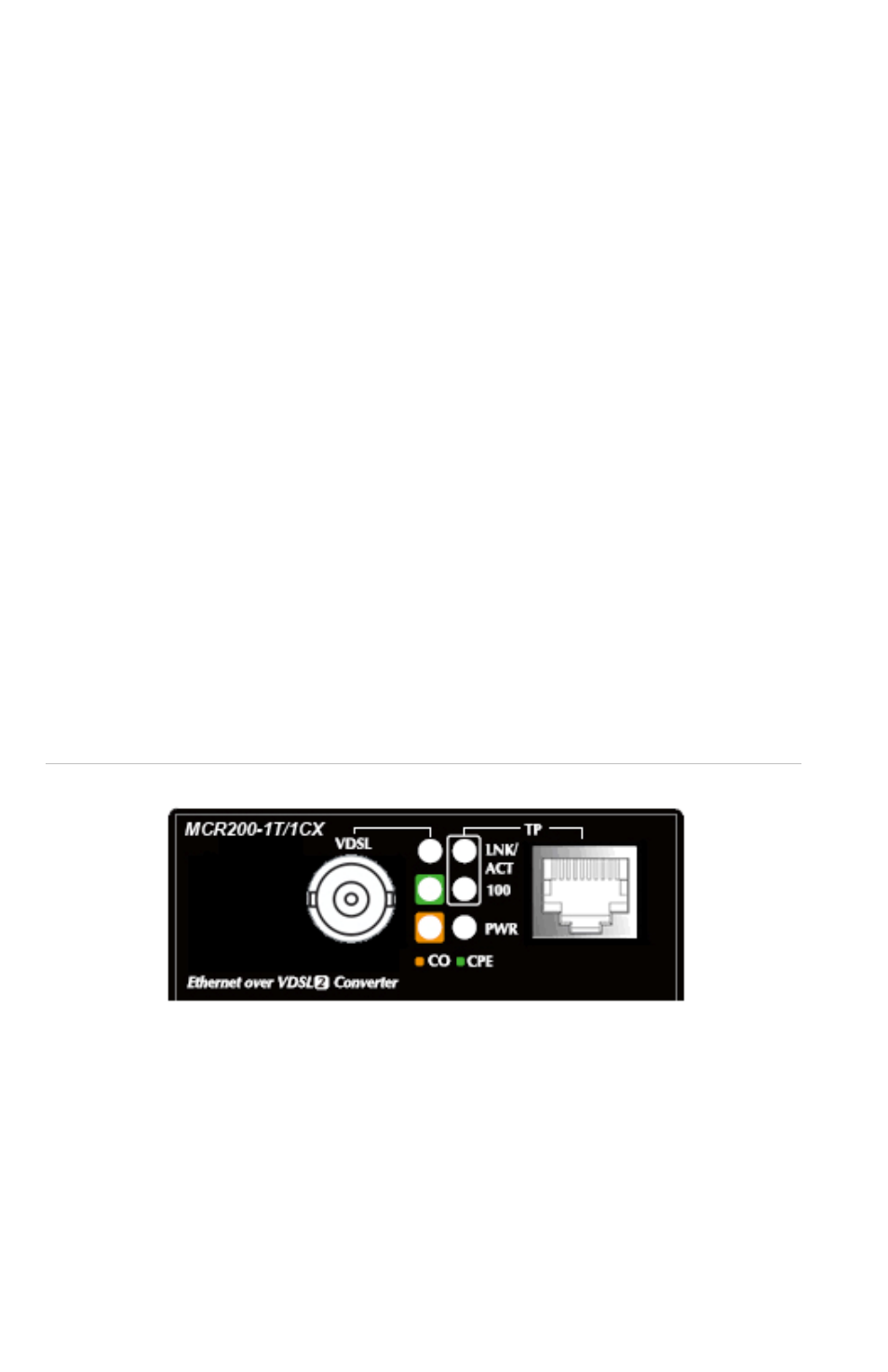

Figure 1: MCR200-1T/1CX Front Panel
