Installation
Installing the MCR200-1T/1CX
The MCR200-1T/1CX does not require any software
configuration. Users can immediately use any feature of this
product simply by attaching the cables and power plug. Based
on the quality of the coaxial cable, the maximum distance of
one connection is 3.0 km (9842 ft.) with 50 or 75 ohm coaxial
cable. Changes in the cable quality would affect the maximum
distance of a connection.
MCR200-1T/1CX LAN to LAN connection
Two sets of the MCR200-1T/1CX should be used to link two
local Area networks that are located at different locations.
Through a normal coaxial cable, the devices can be set up as
a 100/65Mbps asymmetric backbone, but one MCR200-
1T/1CX must be selected as a Master (CO mode) and the
other one as a Slave (CPE mode).

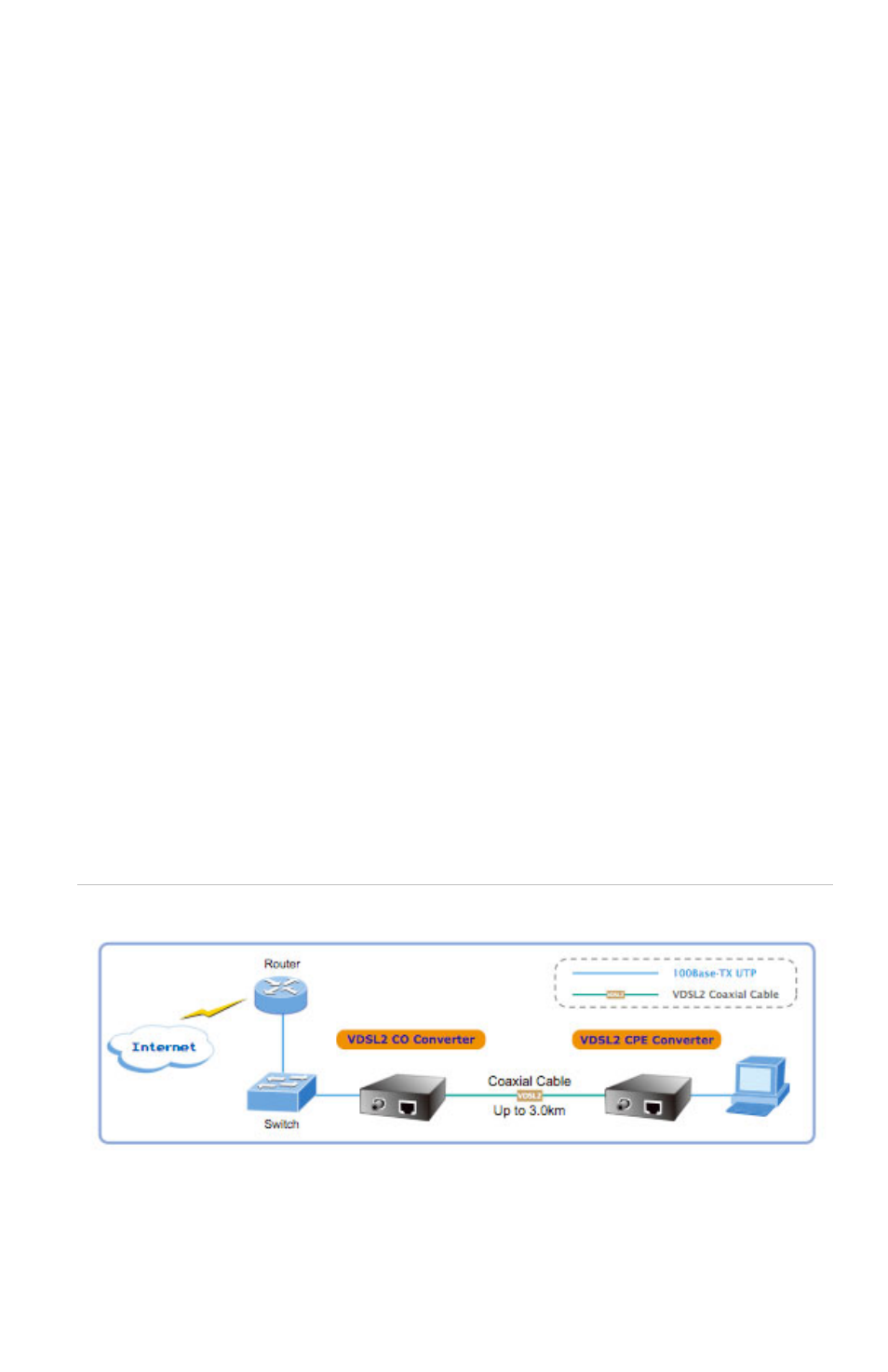

Figure 3: MCR200-1T/1CX LAN to LAN connection
