46

z

Latch: When the anti-dither time ended, the channel alarm you select in the alarm output

may last the specified period. The value ranges from 1 to 300 seconds. This function is not
for other alarm activation operations. The latch is still valid even you disable the alarm event
function directly. .

z

Tour: Here you can enable tour function when alarm occurs. System supports one-window

tour. Please go to chapter 5.3.9 Display for tour interval setup.

z

Snapshot: You can enable this function to snapshoot image when an alarm occurs.

z

Video matrix: Check the box to enable this function. The video matrix output can display the

alarm video of current channel when there is an alarm signal.

z

Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.

z

Snapshot: For snapshot operation, please refer to chapter 4.5.2.

Note: The network alarm means the alarm signal from the TCP/IP. You can enable the network
alarm function via the net SDK. The network alarm does not have the device type; anti-dither and
alarm upload function. The rest items are the same.

Please highlight icon

to select the corresponding function. After setting all the setups

please click save button, system goes back to the previous menu.

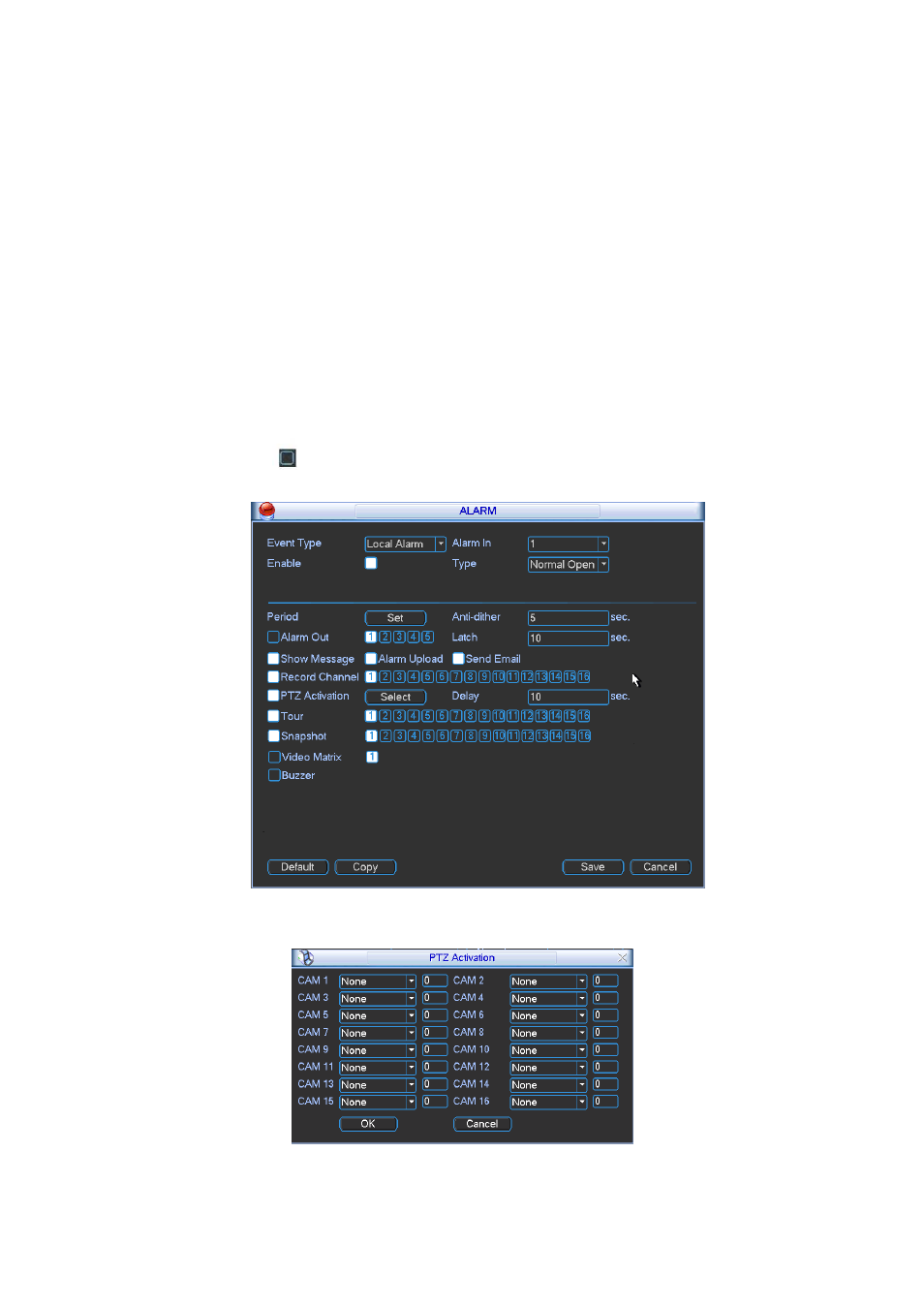

Figure 4-34

Figure 4-35
