5.6.6 Network Information

In this interface, you can see network test and network load information.

5.6.6.1 Network Test

Network test interface is shown as in Figure 5-73.
z

Destination IP: Please input valid IPV4 address and domain name.

z

Test: Click it to test the connection with the destination IP address. The test results can

display average delay and packet loss rate and you can also view the network status as OK,
bad, no connection and etc.

z

Network Sniffer backup: Please insert USB2.0 device and click the Refresh button, you can

view the device on the following column. You can use the dropdown list to select peripheral
device. Click Browse button to select the snap path. The steps here are same as preview
backup operation.

You can view all connected network adapter names (including Ethernet, PPPoE, WIFI, and 3G),

you can click the button

on the right panel to begin Sniffer. Click the grey stop button to stop.

Please note system can not Sniffer several network adapters at the same time.

After Sniffer began, you can exit to implement corresponding network operation such as login

WEB, monitor. Please go back to Sniffer interface to click

stop Sniffer. System can save the

packets to the specified path. The file is named after “Network adapter name+time”. You can use
software such as Wireshark to open the packets on the PC for the professional engineer to solve
complicated problems.

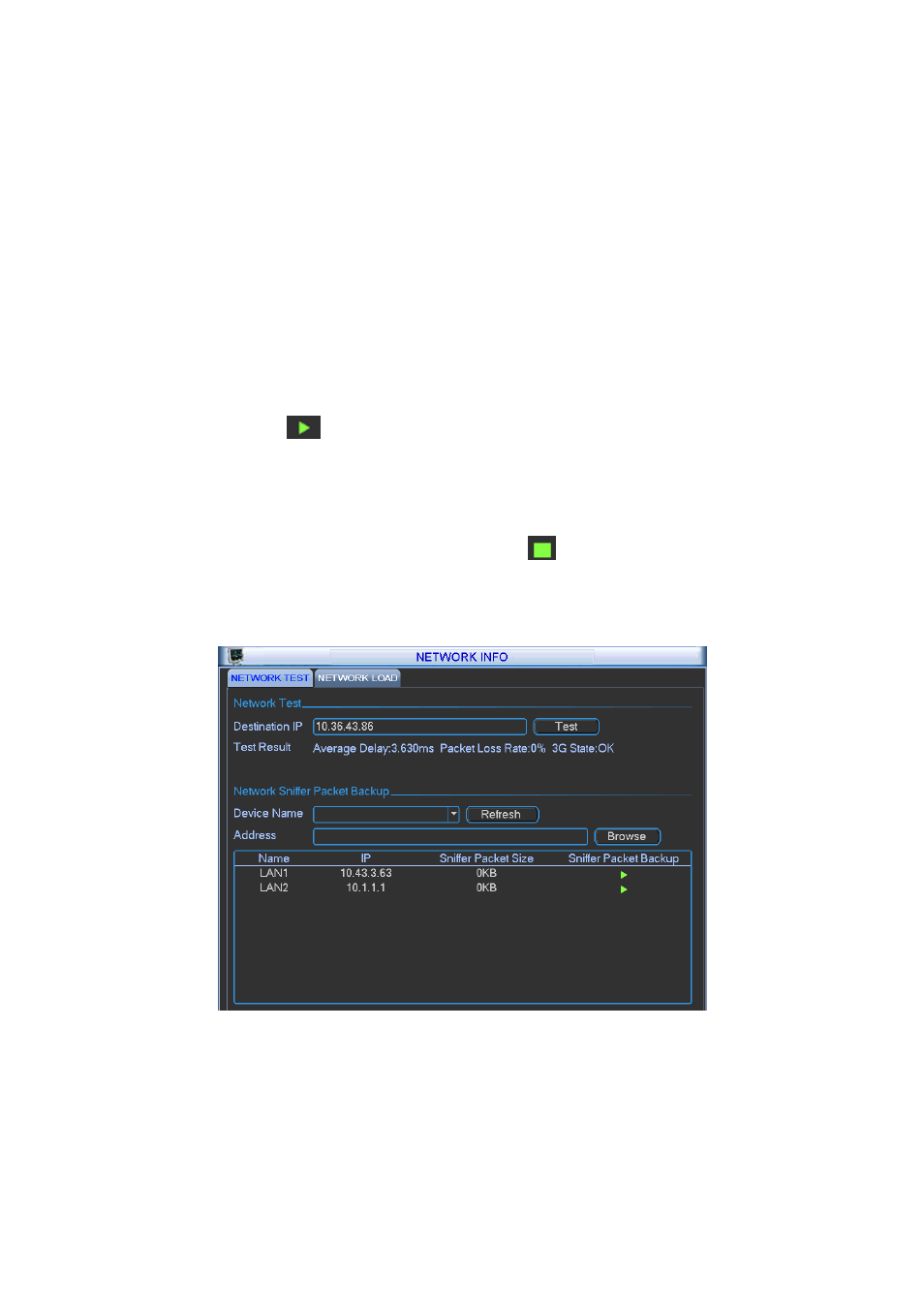

Figure 5-73

5.6.6.2 Network Load

Network load is shown as in Figure 5-74. Here you can view the follow statistics of the device
network adapter.
Here you can view information of all connected network adapters. The connection status is
shown as offline if connection is disconnected. Click one network adapter, you can view the flow
statistics such as send rate and receive rate at the top panel
