15

3 Installation and Connections

Note: All the installation and operations here should conform to your local
electric safety rules.

3.1 Check Unpacked DVR

When you receive the DVR from the forwarding agent, please check whether there is any visible
damage. The protective materials used for the package of the DVR can protect most accidental
clashes during transportation. Then you can open the box to check the accessories.
Please check the items in accordance with the list. Finally you can remove the protective film of
the DVR.

3.2 About Front Panel and Real Panel

The model label in the front panel is very important; please check according to your purchase
order.
The label in the rear panel is very important too. Usually we need you to represent the serial
number when we provide the service after sales.

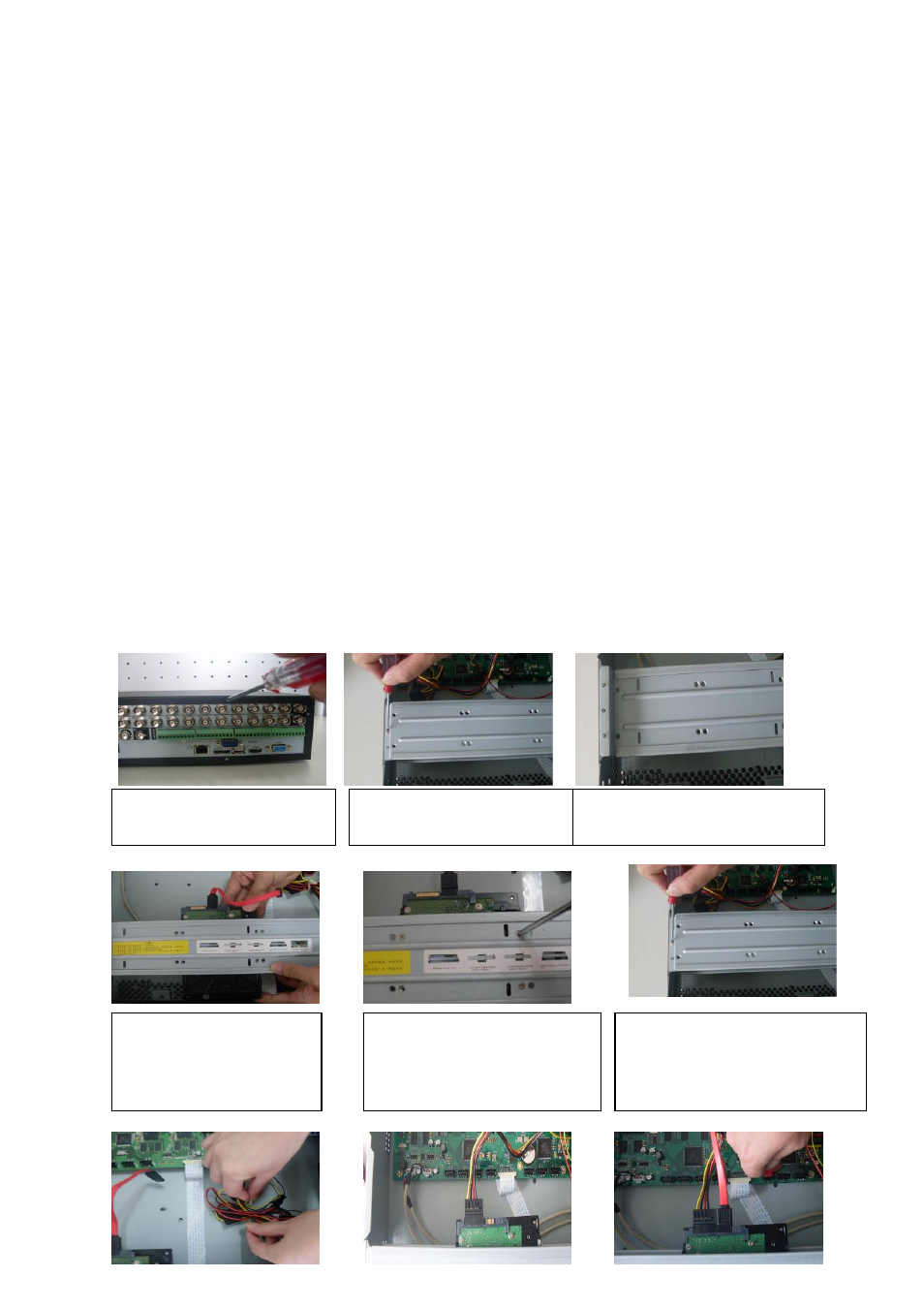

3.3 HDD Installation

Before the installation, you can refer to the sheet to know the max HDD amount your product
supports.
This series DVR max supports 8 SATA HDDs. Please use HDD of 7200rpm or higher.

2. Remove the HDD upper

bracket

3. Now you can see the bottom

bracket

5. Use screws to fix HDD.

6. Install the upper bracket and then

Use screws to fix HDD in the

bracket.

1. Loosen the screws of the

upper cover.

4. Line up the HDD to the

four holes of the HDD

bracket.
