MAINTENANCE AND REPAIR
MAINTENANCE AND REPAIR
The Heli-Max™ Novus 125 FP is an extremely small helicopter. Working on a
model this size will require small tools. The DTXR0170 DuraTrax® Precision
Phillips Screwdriver 00x75mm is recommended. On occasion it will be
necessary to replace damaged parts after a crash. Please use this section as
a guide to performing these steps.
Main Rotor Blade Replacement

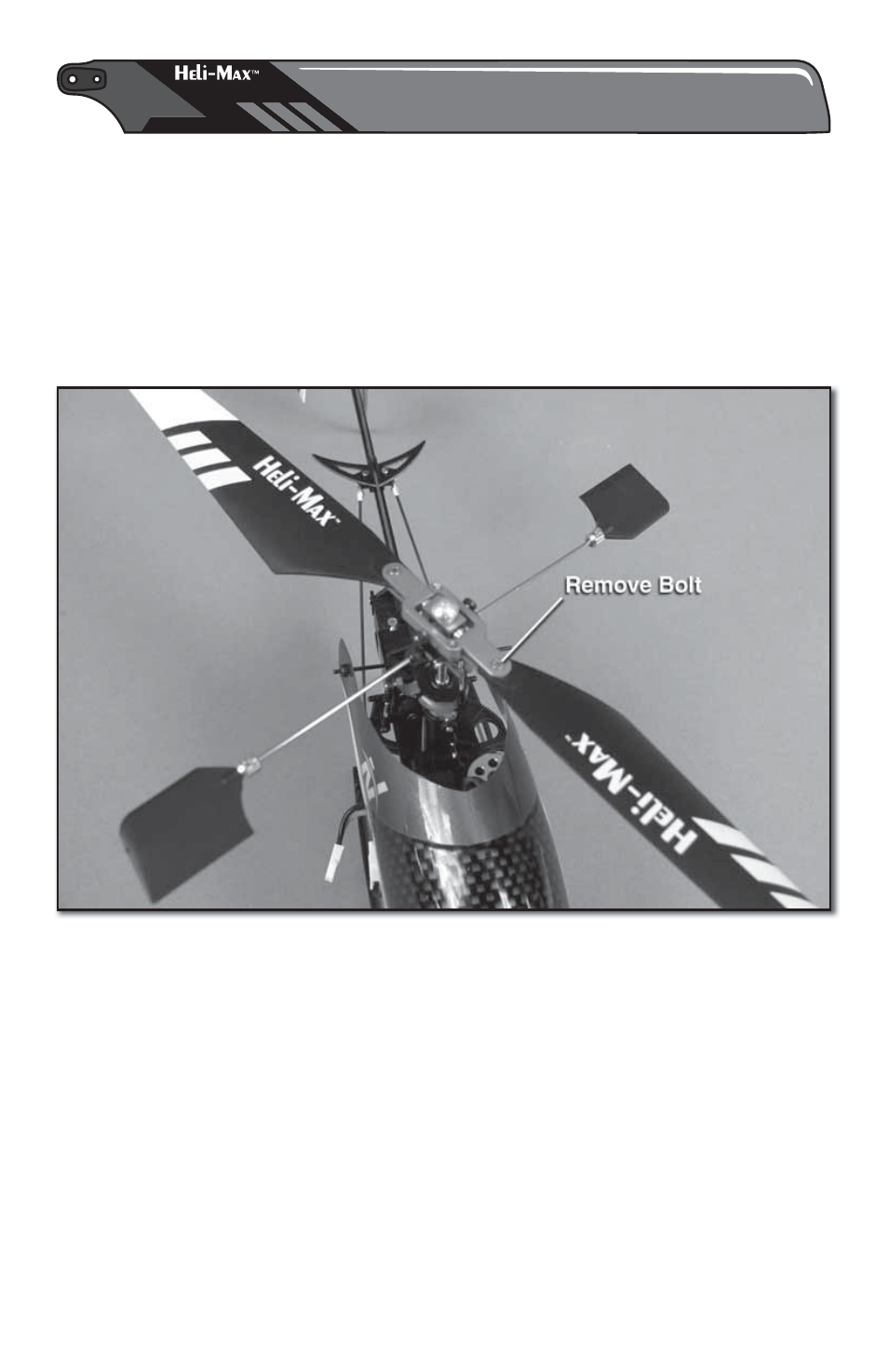

Remove the blade bolt using a #00 phillips screwdriver. After the blade bolt has
been removed, slide the rotor blade out of the blade grip. Reinstall the new blade,
ensuring that the holes within the blade and blade grip are aligned properly.
Reinstall the blade bolt.
