16
1.2 Installation Summary
1. Mount Manifold Absolute Pressure Sensor.
2. Mount Coolant Temperature Sensor.
3. Mount Inlet Air Temperature Sensor.
4. Mount Throttle Position Sensor.
5. Route Main Wiring Harness and connect sensors.
6. Mount and connect Power Relays.
7. Mount Fuse Block.
8. Mount ECU inside passenger compartment.
9. Locate and connect flying wires:-
RED + 12 volts battery
GREY Ignition on 12 volts
BLACK Chassis ground
ORANGE (2 wires) Fuel Pump Circuit
BROWN Trigger Input
10. Configure Trigger dip-switches
11. Route Optional Auxiliary loom. (Optional)
12. Connect ECU and test.
1.3 Expanded Installation Guide

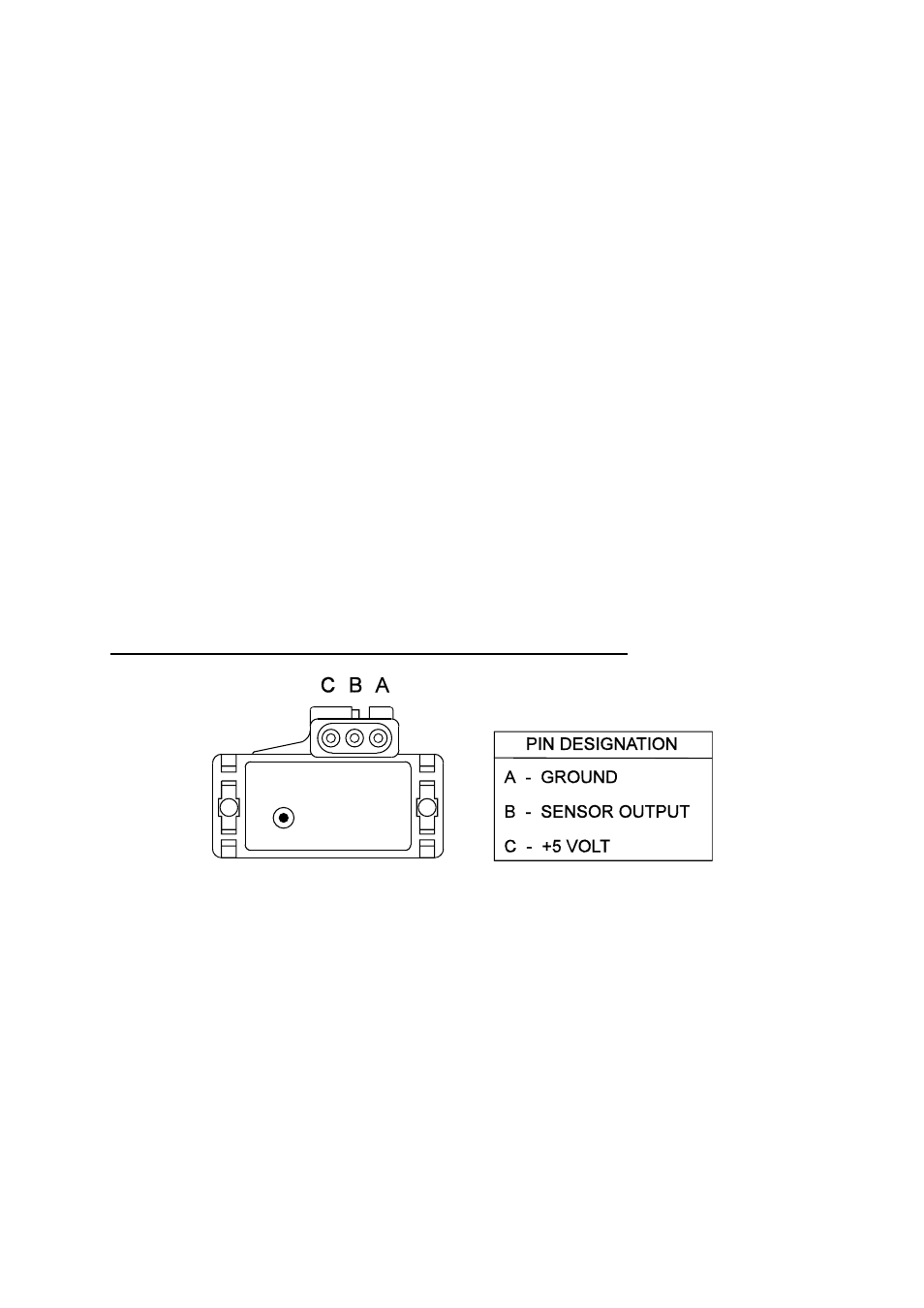

1.3.1. Manifold Absolute Pressure (MAP) Sensor
The MAP sensor is used to convert the manifold pressure into an electrical signal for the F9
ECU to use. The sensor works in absolute pressures, thus its calibration is not affected by
changes in barometric pressure.
There are three types of MAP sensors that can be used with the F9 system. The sensor
required depends on the engine setup.
1 Bar Sensor (Part No. 039 4070)
( -100kPa to 0 kPa) Normally Aspirated Engines
