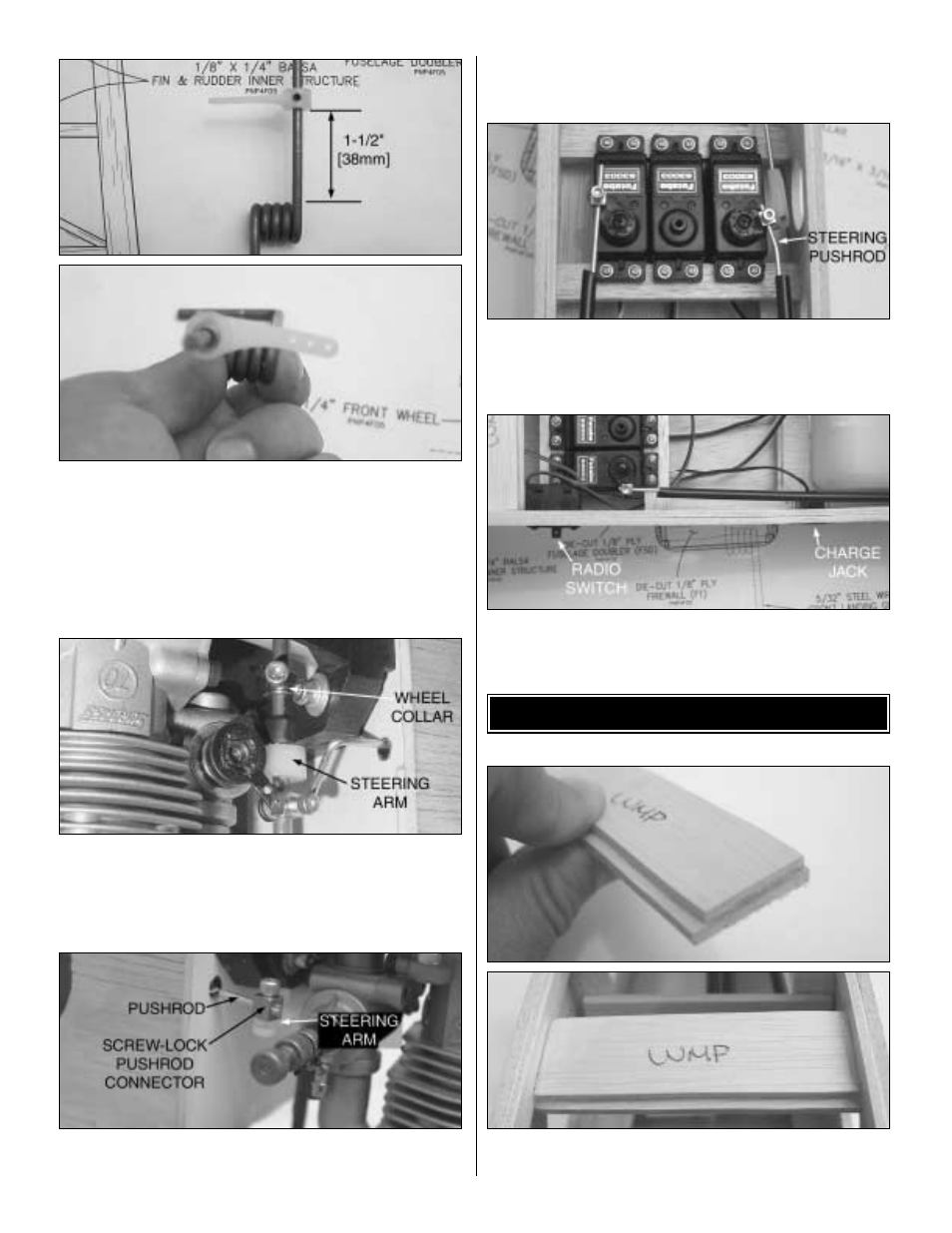

7. Fixed Tricycle. These images are for your reference.
The steering arm should be installed 1-1/2" [38mm] above
the coil of the nose gear. Also, it should be installed at a
slight angle as shown above. To ensure that it will not come
loose, a flat spot should be filed where the steering arm’s
SHCS will be installed. Remember, the steering arm is at a
slight angle and so the flat spot will be, too. Use Great Planes
Pro Threadlocker on the steering arm’s SHCS.
❏
8. Fixed Tricycle. Install the nose gear in place through
the holes at the bottom of the engine mount. The gear coil
should be 3/32" [2.4mm] away from the bottom of the
fuselage. Use Great Planes Pro Threadlocker on the SHCS
and tighten it.
❏
9. Fixed Tricycle. Locate the leftover piece of music wire
used in step 5. Insert the music wire into the steering plastic
outer pushrod. Connect the music wire to the steering arm
using a screw-lock pushrod connector. Use Great Planes
Pro Threadlocker on the screw-lock SHCS and tighten it.
❏
10. Fixed Tricycle. Connect the steering music wire to
the rudder servo arm with a screw-lock pushrod connector
as shown above. Use Great Planes Pro Threadlocker on the
screw-lock SHCS and tighten it.
❏
11. Install the radio switch on the side of the fuselage. If
you wish to do so, now is the time to install an external
charge jack.
❏
1. Locate the die-cut 1/8" [3.2mm] lite-ply wing mounting
plate (WMP) and the die-cut 1/8" [3.2mm] lite-ply wing
MOUNT THE WING TO THE FUSELAGE
38
