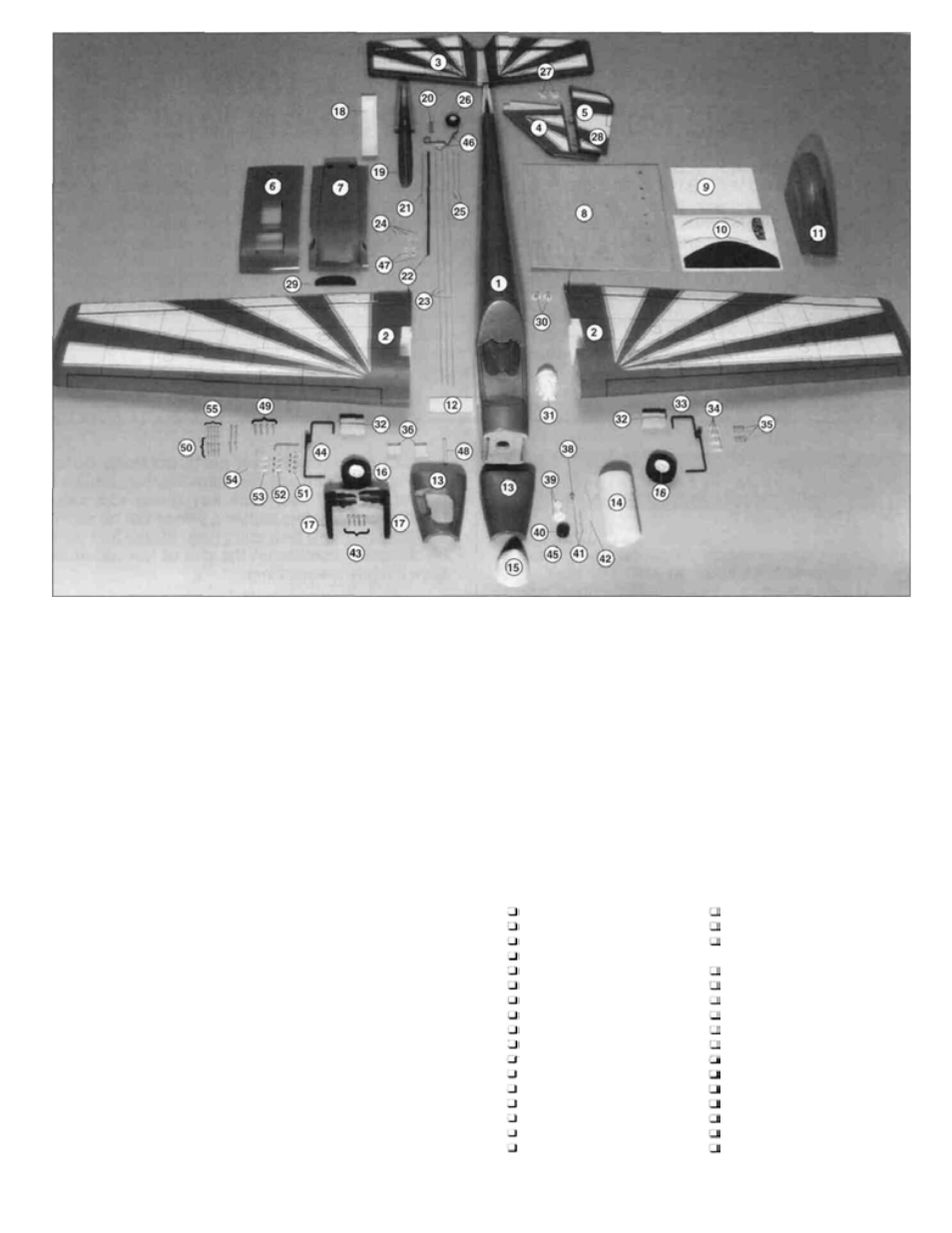

Part# Description Quantity
1........................................Fuselage .....................................................1
2........................................Wing Right & Left ........................................2
3........................................Horizontal Stabilizer & Elevator...................1
4........................................Vertical Stabilizer........................................1
5........................................ Rudder ........................................................1
6........................................Wing Fairing (top)........................................1
7........................................Wing Fairing (bottom)..................................1
8........................................Die-Cut Plywood......................................... 1
9........................................Die-Cut Plastic............................................1
10......................................Decal Sheet.................................................1
11......................................Canopy........................................................1
12......................................Rear Wing Joiner........................................1
13......................................Cowling .......................................................2
14......................................Fuel
Tank....................................................1
15......................................Spinner........................................................1
16......................................Wheel (main gear).......................................2
17......................................Adjustable Engine Mount ............................1
18......................................Die-Cut Plastic Control Horn Backing..........1
19......................................Vertical Stabilizer Fairing ............................1
20......................................Tail Gear Bracket........................................1
21......................................Splined Plastic Tubing.................................1
22......................................Throttle Guide Tube ....................................1
23......................................Pushrod (throttle, elevator, rudder).............3
24......................................Clevis ..........................................................3
25......................................Pushrod (ailerons)......................................2
26......................................Tail Wheel...................................................1
27......................................Control Horn................................................2
28......................................CA Hinges...................................................2
29......................................Foam Rubber Seal......................................1
30......................................Blind Nut.....................................................2
31......................................Pilot.............................................................1
32......................................Landing Gear Mounting Block.....................2
33......................................Main Landing Gear Strut (L)........................2
34......................................Flat Nylon Strap ..........................................4
35......................................#2 x 3/8" Sheet Metal Screw.......................8
36......................................Wing Bolt Plate............................................1
38......................................Fuel Pick-up Weight (clunk) ........................1
39......................................Stopper Disc................................................2
40......................................Rubber Plug................................................1
41......................................Aluminum Tube..........................................:2
42....................................... Fuel Tubing .................................................1
43......................................6-32 x 3/4" Machine Screw .........................4
44......................................Main Landing Gear Strut (R) .......................1
45......................................Tank Plug 3 x 18mm S/T Screw..................1
46......................................Tail Gear.....................................................1
47......................................Swivel Clevis...............................................2
48......................................Wing Dowel.................................................1
49......................................#6 x 3/4" Sheet Metal Screw.......................4
50......................................#2 x 3/8" Sheet Metal Screw.....................12
51......................................5/32" Wheel Collar......................................4
52......................................3/32" Wheel Collar......................................2
53......................................Aluminum Spacer........................................2
54......................................#2 Washer...................................................4
55......................................2-56 x 5/8" Machine Screw .........................4
56......................................1/4-20 Nylon Wing Bolt (not shown)............2
57......................................#4 x 1/2" Sheet Metal Screw (not shown) .10
Items Required
Ruler 1 oz. Thin CA Adhesive
1 oz. Medium CA Adhesive
9 oz. 6-minute Epoxy
9 oz. 30-minute Epoxy
Masking Tape
Petroleum Jelly
IsopropyI Rubbing Alcohol
Thread Locking Compound
Silicone Sealant
Sandpaper Fine/Medium
Pliers
String
Felt-Tip Pen
Clothespins
Mixing Sticks
T-Pins
Hobby Knife, #11 Blades
Hand or Electric Drill
Drill Bits 1/16", 3/32", 5/64"
7/64", 1/4"
Foam Rubber
Wing Seating Tape
#64 Rubber Bands
Epoxy Brushes
Mixing Cups
Paper Towels
Files, Flat & Round
Screwdrivers
5/32" Adjustable Axle
Pushrod Connectors (opt.)
Retract Servo (opt.)
Retracts (HCAP4010) (opt.)
Retract Pushrod Wire 2-56 (opt.)
