Die-cut parts – Great Planes Ultra Sport 40 ARF Red - GPMA1005 User Manual
Page 5

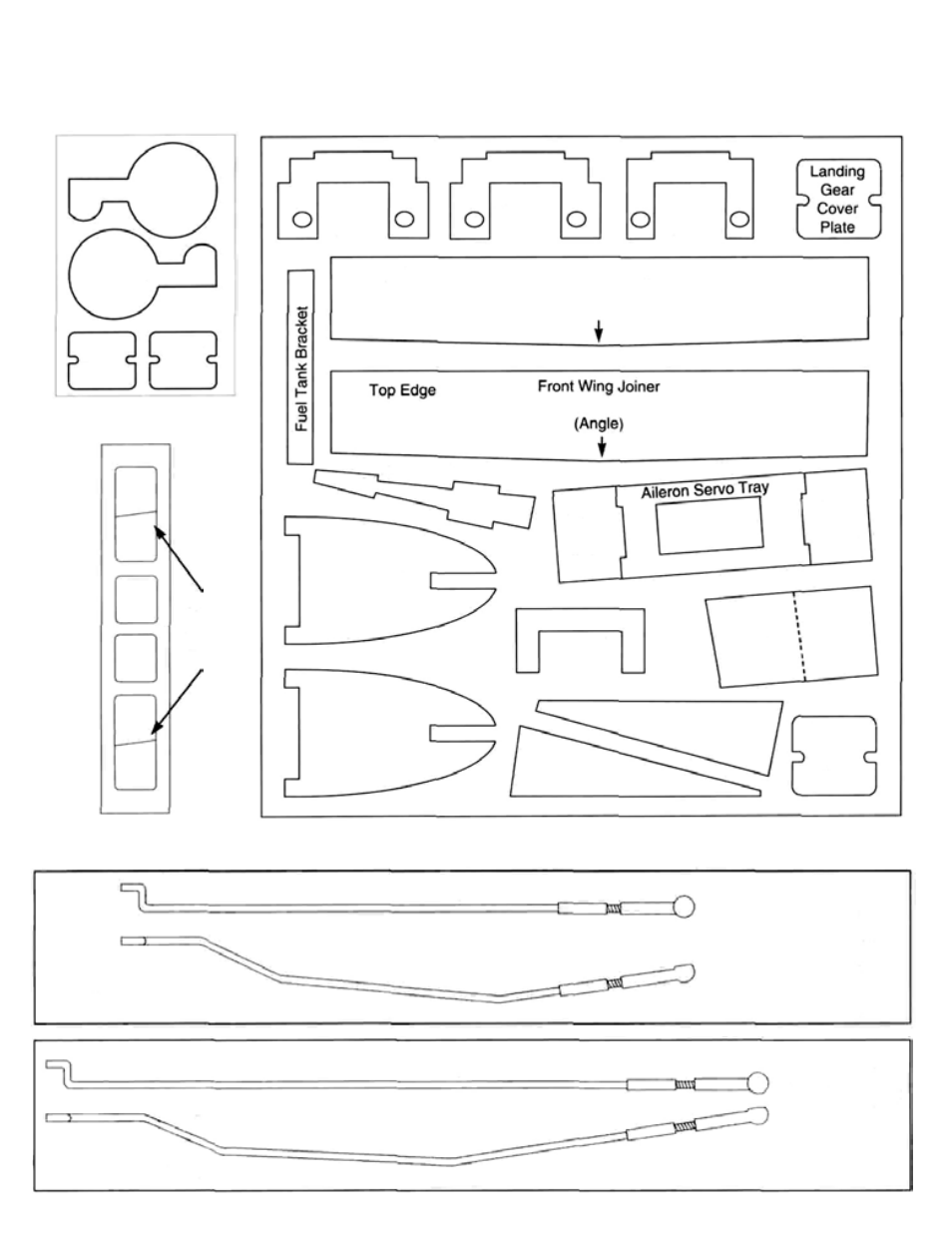

Die-Cut Parts
Plastic Sheet
1/8" (3mm) Plywood Sheet
Wheel Well
Cover
Wing
Mounting
Plate
Wing
Mounting
Plate
Wing
Mounting
Plate
Wheel Well
Cover
Mount
Cover
Mount
Cover
Plastic Sheet
Control
Horn
Support
Plates
Front Center Rib
Front Center Rib
Aft Center Rib
Aft Center Rib
Landing
Gear
Cover
Plate
Wing
Bolt
Plates
Retract
Servo Tray
Servo
Tray
Mount
Servo
Tray
Mount
Stabilizer Platform
(Angle)
Front Wing Joiner
Top Edge
Not Actual Size
Top View
Side View
Right Retract Pushrod
Template for
Hobbico Retract
Pushrod
(Not Included)
Actual Size
Top View
Side View
Left Retract Pushrod
5
Template for
Hobbico Retract
Pushrod
(Not Included)
Actual Size
