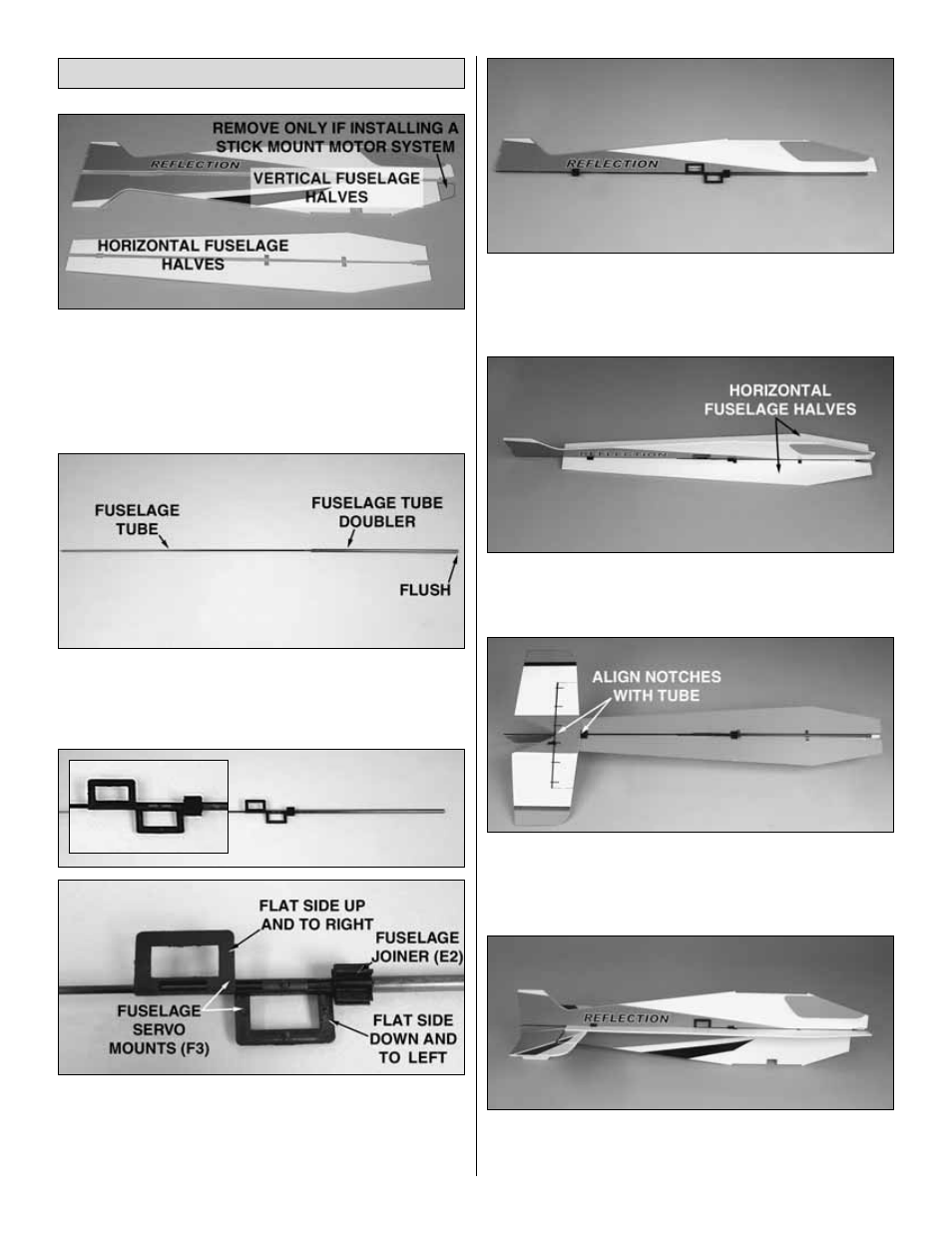

1. Cut the upper and lower vertical fuselage halves
and the right and left horizontal fuselage halves free from
their foam sheets. If using the gearbox included with this kit,
or any other type of “stick-mount” gearbox, cut-out the
section shown from the bottom vertical fuselage half.
❏
2. Glue the 5.5 x 248mm [7/32" x 9-3/4"] fuselage tube
doubler over the 3 x 665mm [1/8" x 26-3/16"] fuselage
tube. One end should be flush. From now on, this assembly
will be referred to as the fuselage tube.
❏
3. Slide a fuselage joiner (E2), two fuselage servo mounts
(F3), and another fuselage joiner onto the fuselage tube. With
the tube doubler forward, the front servo mount should hang
down with its flat surface on the left, and the rear servo mount
should point up with its flat surface on the right.
❏
4. Position the servo mounts and fuselage joiners so that they
align with the precut slots in the upper vertical fuselage half.
❏
5. Glue the fuselage tube to the upper vertical fuselage half.
❏
6. Glue the left and right horizontal fuselage halves to the
fuselage tube. Make sure they are perpendicular to the
upper vertical fuselage.
❏
7. Glue the stabilizer into position with the leading edge
of the stab butted against the rear fuselage joiner. Align the
notches in the stab with the fuselage tube.
❏
8. Glue the lower vertical fuselage half to the fuselage
tube. Make sure to keep it parallel with the upper half and
perpendicular to the horizontal fuselage.
Assemble the Fuselage
9
